Installation Procedure

WARNING: This page is about a different variant/trim than selected.

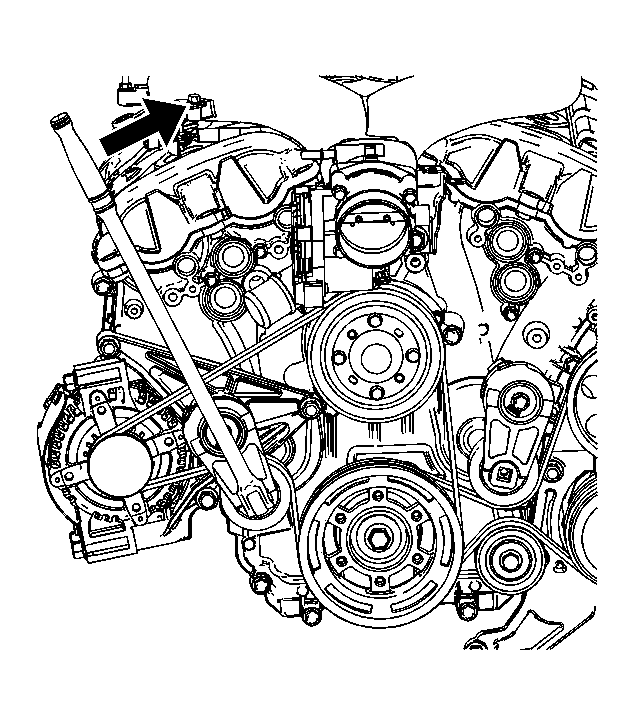

    Fig 1: View Of Generator & Water Pump Drive Belt Routing
    GM1285186Courtesy of GENERAL MOTORS CORP.
  1. Install the drive belt to the crankshaft pulley, the tensioner and the generator.
  2. Rotate the drive belt tensioner clockwise.
  3. Install the drive belt to the water pump.
    4. IMPORTANT: Ensure the drive belt is properly aligned and seated into the grooves of the accessory drive pulleys.
  4. Slowly release the drive belt tensioner.
