Installation Procedure

WARNING: This page is about a different variant/trim than selected.

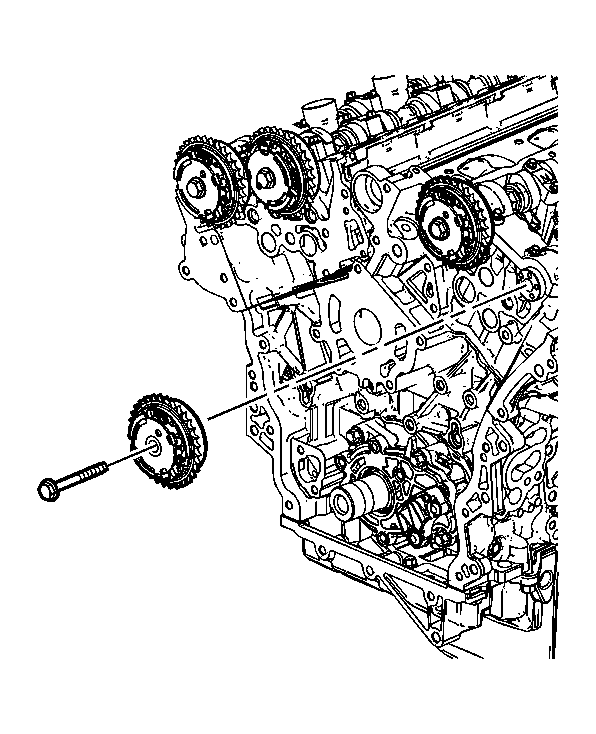

    Fig 1: View Of Camshaft Position (CMP) Actuator - Bank 2 Exhaust
    GM902824Courtesy of GENERAL MOTORS CORP.
  1. Install the camshaft position actuator to the timing chain.
    2. NOTE: Refer to Torque Reaction Against Timing Drive Chain Notice in Cautions and Notices.
  2. Install the applicable camshaft. Refer to Camshaft Replacement - Left .
