Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    NOTE: Refer to Torque Reaction Against Timing Drive Chain Notice in Cautions and Notices.
  1. Remove the camshaft. Refer to Camshaft Replacement - Right .

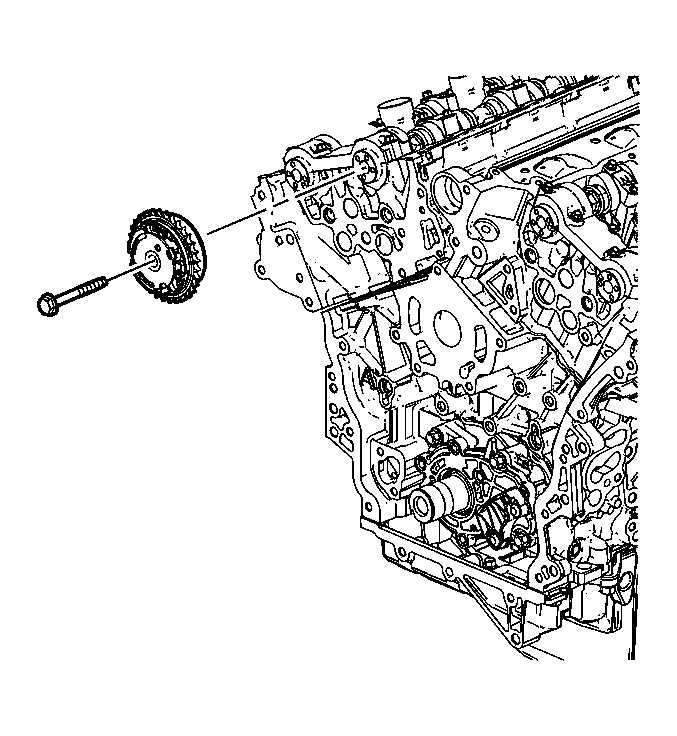

    2. Fig 1: View Of Camshaft Position (CMP) Actuator - Bank1 Intake
    GM946228Courtesy of GENERAL MOTORS CORP.
  2. Remove the camshaft position actuator from the timing chain.
