Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Remove the transmission support. Refer to Transmission Support Replacement in Frame and Underbody.

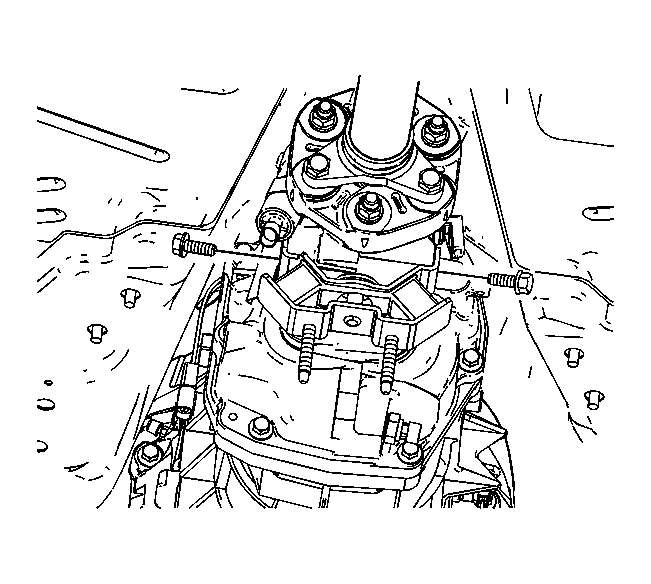

    3. Fig 1: Removing transmission mount upper mounting bolts
    GM1398697Courtesy of GENERAL MOTORS CORP.
  3. Remove the transmission mount upper mounting bolts.

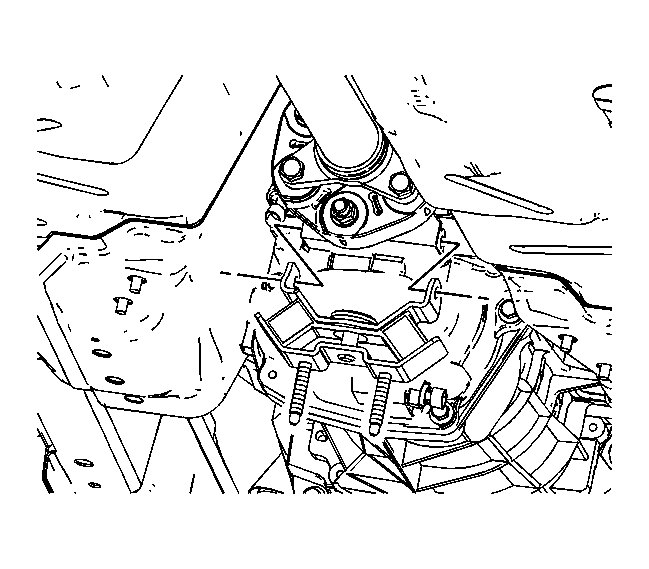

    4. Fig 2: Removing Transmission Mount
    GM1398701Courtesy of GENERAL MOTORS CORP.
  4. Remove the transmission mount.
