Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Removing Shift Control Knob
    GM801327Courtesy of GENERAL MOTORS CORP.
  1. Remove the shift control knob. Refer to Shift Control Knob Replacement .
    2. Fig 2: Removing Sound Insulator Foam Block
    GM834525Courtesy of GENERAL MOTORS CORP.
  2. Remove the sound insulator foam block from the console.
    3. Fig 3: Removing Bolts Securing Shift Control Assembly
    GM834521Courtesy of GENERAL MOTORS CORP.
  3. Remove the bolts (2) securing the shift control assembly to the shift control adapter plate.
  4. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
    5. Fig 4: View Of Exhaust System
    GM1215598Courtesy of GENERAL MOTORS CORP.
  5. Remove the exhaust system. Refer to Exhaust System Replacement (LA3, LY9) , Exhaust System Replacement (LY7) or Exhaust System Replacement (LS6) in Engine Exhaust.
    6. Fig 5: View Of Propeller Shaft Nounting Components
    GM1236100Courtesy of GENERAL MOTORS CORP.
  6. Remove the propeller shaft (6). Refer to Propeller Shaft Replacement (Automatic Transmission) , Propeller Shaft Replacement (Manual Transmission) or Propeller Shaft Replacement (CTS-V) in Propeller Shaft.
  7. Support the transmission with a suitable jack.
    8. Fig 6: Removing Transmission Support
    GM785386Courtesy of GENERAL MOTORS CORP.
  8. Remove the transmission support. Refer to Transmission Support Replacement in Frame and Underbody.
  9. Lower the transmission assembly to gain access to the top of the transmission.

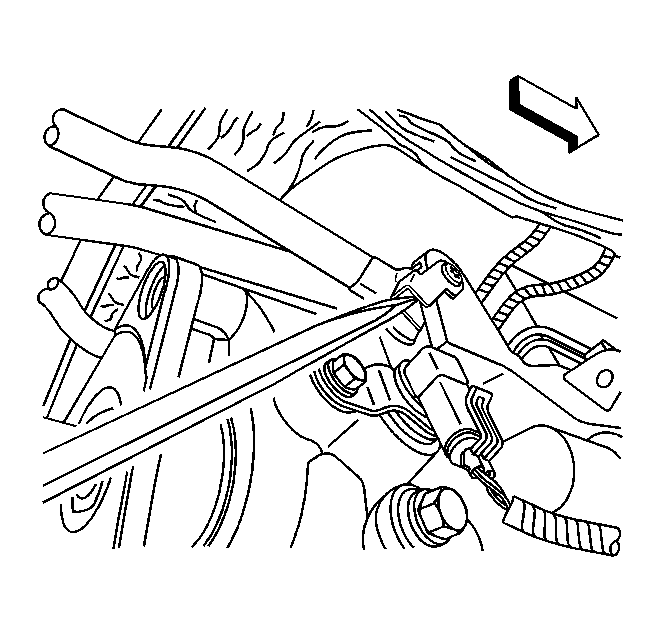

    10. Fig 7: Releasing Right Side Shift Control Rod Pin Retainer
    GM1426983Courtesy of GENERAL MOTORS CORP.
  10. Using a flat blade tool, release the right side shift control rod pin retainer.
    11. Fig 8: Removing Shift Control Rod Pin
    GM1426984Courtesy of GENERAL MOTORS CORP.
  11. Remove the shift control rod pin.
    12. Fig 9: Releasing Left Side Shift Control Rod Pin Retainer
    GM1426985Courtesy of GENERAL MOTORS CORP.
  12. Using a flat blade tool, release the left side shift control rod pin retainer. The graphic shows the transmission removed for clarity.
    13. Fig 10: Removing Shift Control Rod Pin
    GM1426986Courtesy of GENERAL MOTORS CORP.
  13. Remove the shift control rod pin.

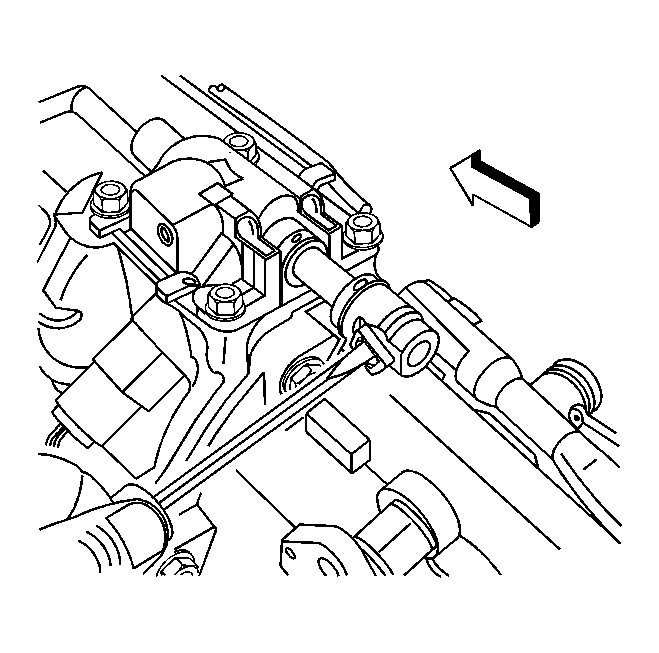

    14. Fig 11: Releasing Center Shift Control Rod Pin Retainer
    GM1426987Courtesy of GENERAL MOTORS CORP.
  14. Using a flat blade tool, release the center shift control rod pin retainer. The graphic shows the transmission removed for clarity.
    15. Fig 12: Removing Center Shift Control Rod Pin Retainer
    GM1426988Courtesy of GENERAL MOTORS CORP.
  15. Remove the center shift control rod pin retainer.
    16. Fig 13: Removing Shift Control Assembly From Transmission
    GM1426990Courtesy of GENERAL MOTORS CORP.
  16. Remove the shift control assembly from the transmission. Remove the shift control assembly from the vehicle.
