Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Installing Shift Control Assembly To Transmission
    GM1426990Courtesy of GENERAL MOTORS CORP.
  1. Install the shift control assembly to the transmission.
    2. Fig 2: Installing Center Shift Control Rod Pin Retainer
    GM1426988Courtesy of GENERAL MOTORS CORP.
  2. Install the center shift control rod pin retainer.

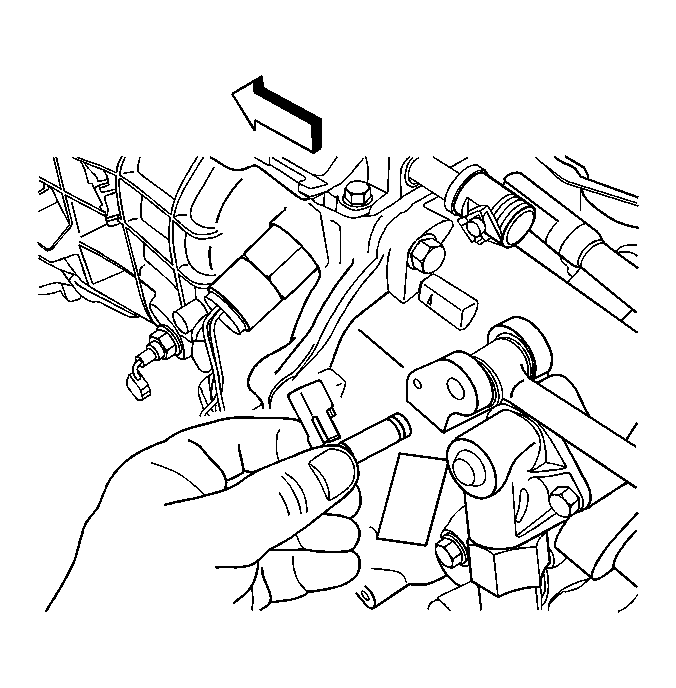

    3. Fig 3: Installing Left Side Shift Control Rod Pin
    GM1426986Courtesy of GENERAL MOTORS CORP.
  3. Install the left side shift control rod pin. Rotate the pin in order to lock the retainer into place on the transmission.
    4. Fig 4: Installing Right Side Shift Control Rod Pin
    GM1426984Courtesy of GENERAL MOTORS CORP.
  4. Install the right side shift control rod pin. Rotate the pin in order to lock the retainer into place on the transmission.

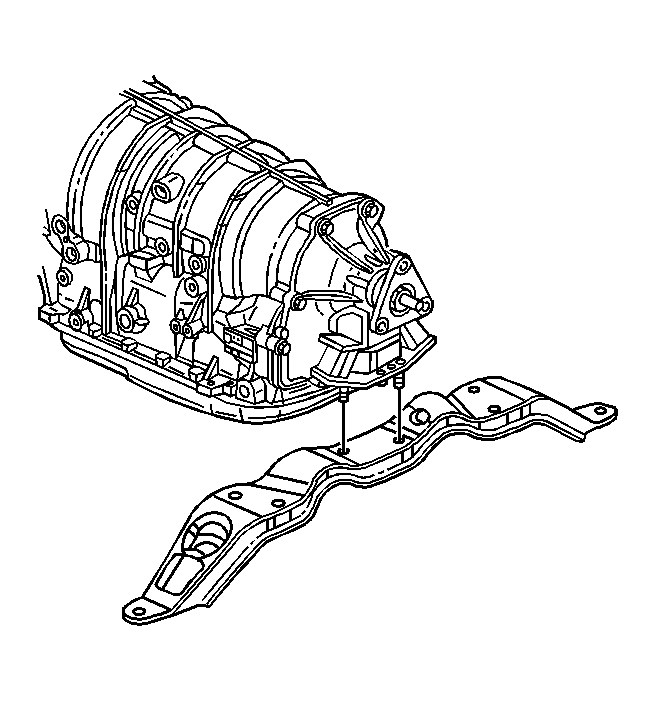

    5. Fig 5: Raising Transmission
    GM785386Courtesy of GENERAL MOTORS CORP.
  5. Raise the transmission.
  6. Install the transmission support. Refer to Transmission Support Replacement in Frame and Underbody.
    7. Fig 6: View Of Propeller Shaft Nounting Components
    GM1236100Courtesy of GENERAL MOTORS CORP.
  7. Remove the jack supporting the transmission.
  8. Install the propeller shaft (6). Refer to Propeller Shaft Replacement (Automatic Transmission) , Propeller Shaft Replacement (Manual Transmission) and Propeller Shaft Replacement (CTS-V) in Propeller Shaft.
    9. Fig 7: View Of Exhaust System
    GM1215598Courtesy of GENERAL MOTORS CORP.
  9. Install the exhaust system. Refer to Exhaust System Replacement (LA3, LY9) , Exhaust System Replacement (LY7) and Exhaust System Replacement (LS6) in Engine Exhaust.
    10. Fig 8: Installing Bolts Securing Shift Control Assembly To Adapter Plate
    GM834521Courtesy of GENERAL MOTORS CORP.
  10. Lower the vehicle.
  11. Install the bolts securing the shift control assembly to the adapter plate.

    Tighten:  Tighten the shift control bolts to 18 N.m (13 lb ft).

    12. Fig 9: Installing Sound Insulator Foam Block Into Console
    GM834525Courtesy of GENERAL MOTORS CORP.
  12. Install the sound insulator foam block into the console.
    13. Fig 10: Installing Shift Control Knob
    GM801327Courtesy of GENERAL MOTORS CORP.
  13. Install the shift control knob. Refer to Shift Control Knob Replacement .
