Installation Procedure

WARNING: This page is about a different variant/trim than selected.

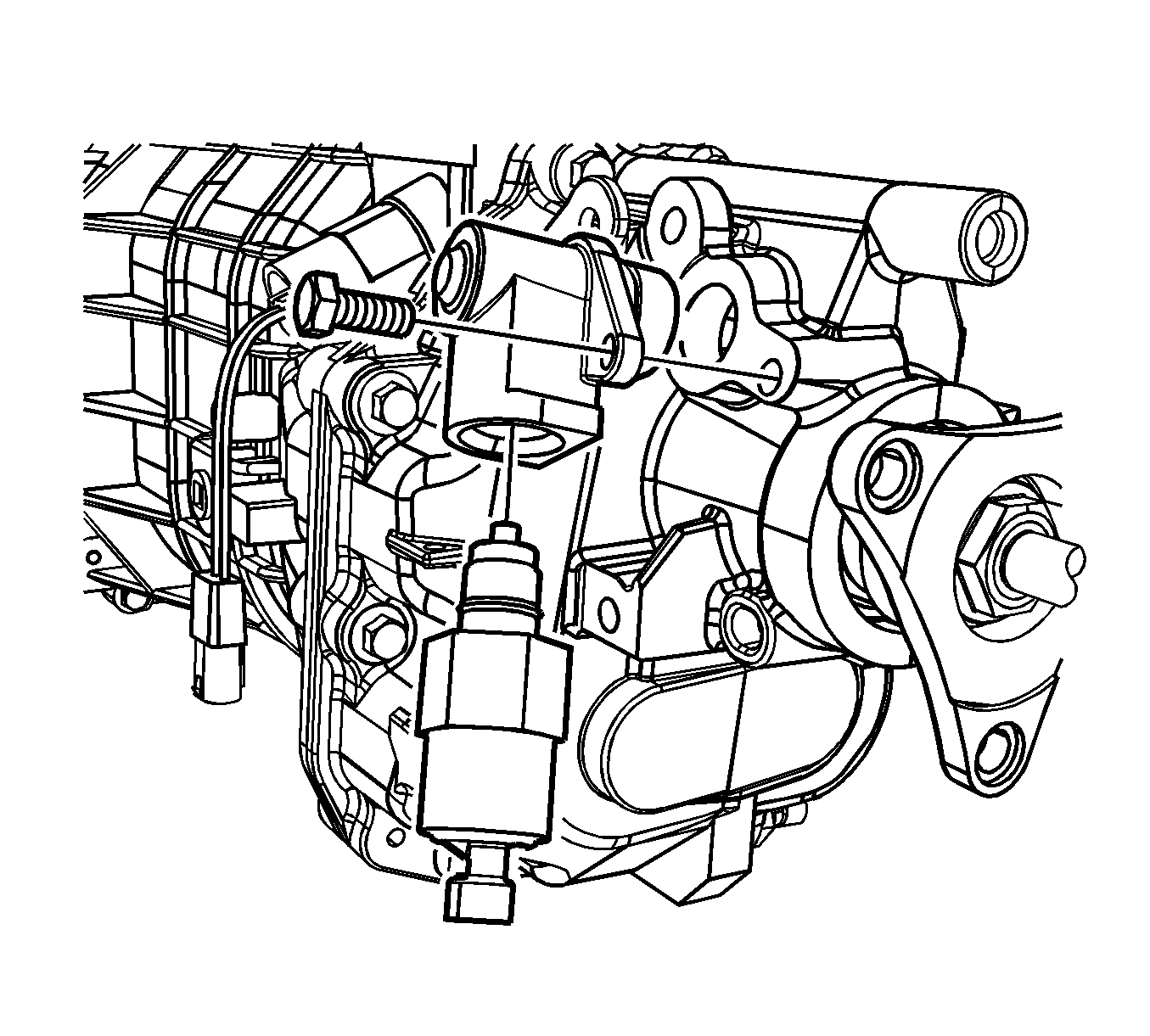

    Fig 1: Replacing Reverse Lockout Assembly O-Ring
    GM1434394Courtesy of GENERAL MOTORS CORP.
  1. If removed, inspect the reverse lockout assembly O-ring. Replace the reverse lockout assembly O-ring if necessary.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the reverse lockout assembly and bolt.

    Tighten:  Tighten the reverse lockout assembly bolt to 18 N.m (13 lb ft).

  3. Install the reverse lockout solenoid using the J 41099  . See Special Tools and Equipment . Inspect and replace the O-ring if necessary.

    Tighten:  Tighten the reverse lockout solenoid to 40 N.m (30 lb ft).

    4. Fig 2: Connecting Reverse Lockout Solenoid Electrical Connector
    GM1426253Courtesy of GENERAL MOTORS CORP.
  4. Connect the reverse lockout solenoid electrical connector (5).
  5. Install the transmission mount. Refer to Transmission Mount Replacement .
  6. Install the transmission support. Refer to Transmission Support Replacement in Frame and Underbody.
  7. Remove the transmission jack.
  8. Install the exhaust system. Refer to Exhaust System Replacement (LA3, LY9) , Exhaust System Replacement (LY7) and Exhaust System Replacement (LS6) in Engine Exhaust.
  9. Lower the vehicle.
