Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission. Refer to Transmission Replacement .

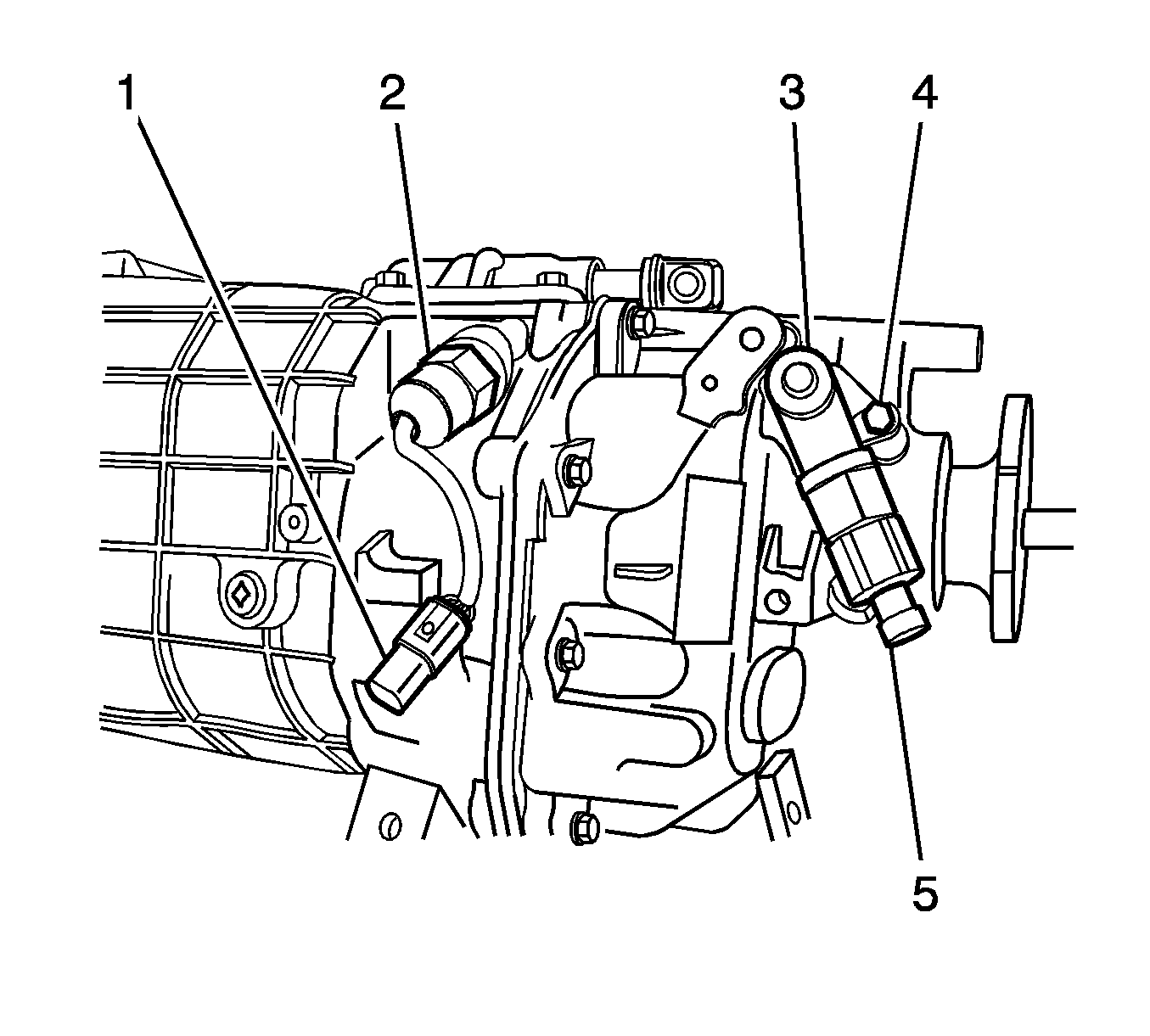

    2. Fig 1: Removing Skip Shift Solenoid
    GM1426253Courtesy of GENERAL MOTORS CORP.
  2. Remove the skip shift solenoid (2).
