Manual Transmission Component Views
WARNING: This page is about a different variant/trim than selected.

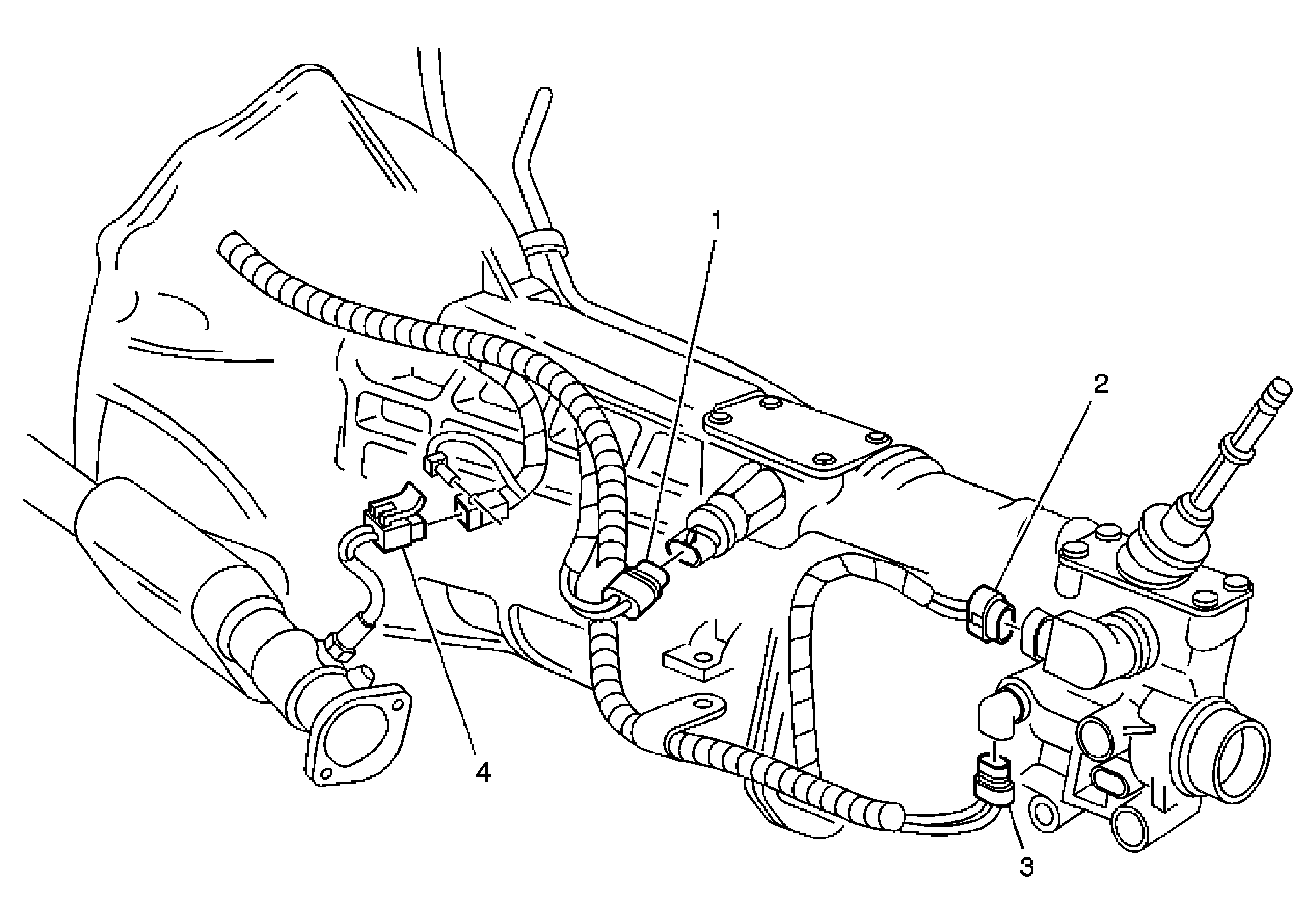

| Callout | Component Name |
|---|---|
| 1 | Skip Shift Solenoid |
| 2 | Reverse Lockout Solenoid |
| 3 | Vehicle Speed Sensor |
| 4 | Oxygen Sensor |
| Callout | Component Name |
|---|---|
| 1 | Vehicle Speed Sensor (VSS) |
| 2 | Transmission Fluid Temperature (TFT) Sensor Connector |
| 3 | Transmission Fluid Temperature (TFT) Sensor |
| 4 | Vehicle Speed Sensor (VSS) Connector |
