Power Distribution Schematics

Fig 1: Underhood Fuse Block B+ Bus (1 of 2)

GM1325900

Courtesy of GENERAL MOTORS CORP.

Fig 2: Underhood Fuse Block B+ Bus (2 of 2)

GM1325901

Courtesy of GENERAL MOTORS CORP.

Fig 3: Left Rear Fuse Block B+ Bus

GM1325902

Courtesy of GENERAL MOTORS CORP.

Fig 4: Right Rear Fuse Block B+ Bus

GM1325903

Courtesy of GENERAL MOTORS CORP.

Fig 5: Ignition Switch (1 of 2)

GM1325905

Courtesy of GENERAL MOTORS CORP.

Fig 6: Ignition Switch (2 of 2)

GM1325906

Courtesy of GENERAL MOTORS CORP.

Fig 7: Underhood Fuse Block PARK LAMP Relay/Fuses and DIMMING Fuse

GM1325907

Courtesy of GENERAL MOTORS CORP.

Fig 8: Underhood Fuse Block MAIN Relay, Cooling Fan Fuses/Relays, ECM and TOS Fuses

GM1284878

Courtesy of GENERAL MOTORS CORP.

Fig 9: Underhood Fuse Block PRE O2/CAM Fuse

GM1284882

Courtesy of GENERAL MOTORS CORP.

Fig 10: Underhood Fuse Block POST O2 Fuse

GM1358282

Courtesy of GENERAL MOTORS CORP.

Fig 11: Underhood Fuse Block ODD INJ/COIL Fuse

GM1284887

Courtesy of GENERAL MOTORS CORP.

Fig 12: Underhood Fuse Block EVEN INJ/COIL Fuse

GM1344691

Courtesy of GENERAL MOTORS CORP.

Fig 13: Underhood Fuse Block DIM/ALDL, VOLT CHECK, FLASHER, CCP, ECM/TCM and ABS Fuses

GM1325910

Courtesy of GENERAL MOTORS CORP.

Fig 14: Underhood Fuse Block Headlamp Fuses/Relays, ACCESSORY Relay, I/P OUTLET, OUTLET, WPR MOD, WPR SW and ELEC PRNDL Fuses

GM1325914

Courtesy of GENERAL MOTORS CORP.

Fig 15: Underhood Fuse Block STARTER and IGN-1 Relays, HTR VLV/CLTCH and TCM/IPC Fuses

GM1325917

Courtesy of GENERAL MOTORS CORP.

Fig 16: Underhood Fuse Block WASH NOZ, STRG CTLS and IGN MOD/MAF Fuses

GM1344549

Courtesy of GENERAL MOTORS CORP.

Fig 17: Left Rear Fuse Block IGN 3 Relay, L FRT HTD SEAT MOD, MEM/ADAPT SEAT, CCP, HDLP LEVELING and IGN 3 Fuses

GM1325918

Courtesy of GENERAL MOTORS CORP.

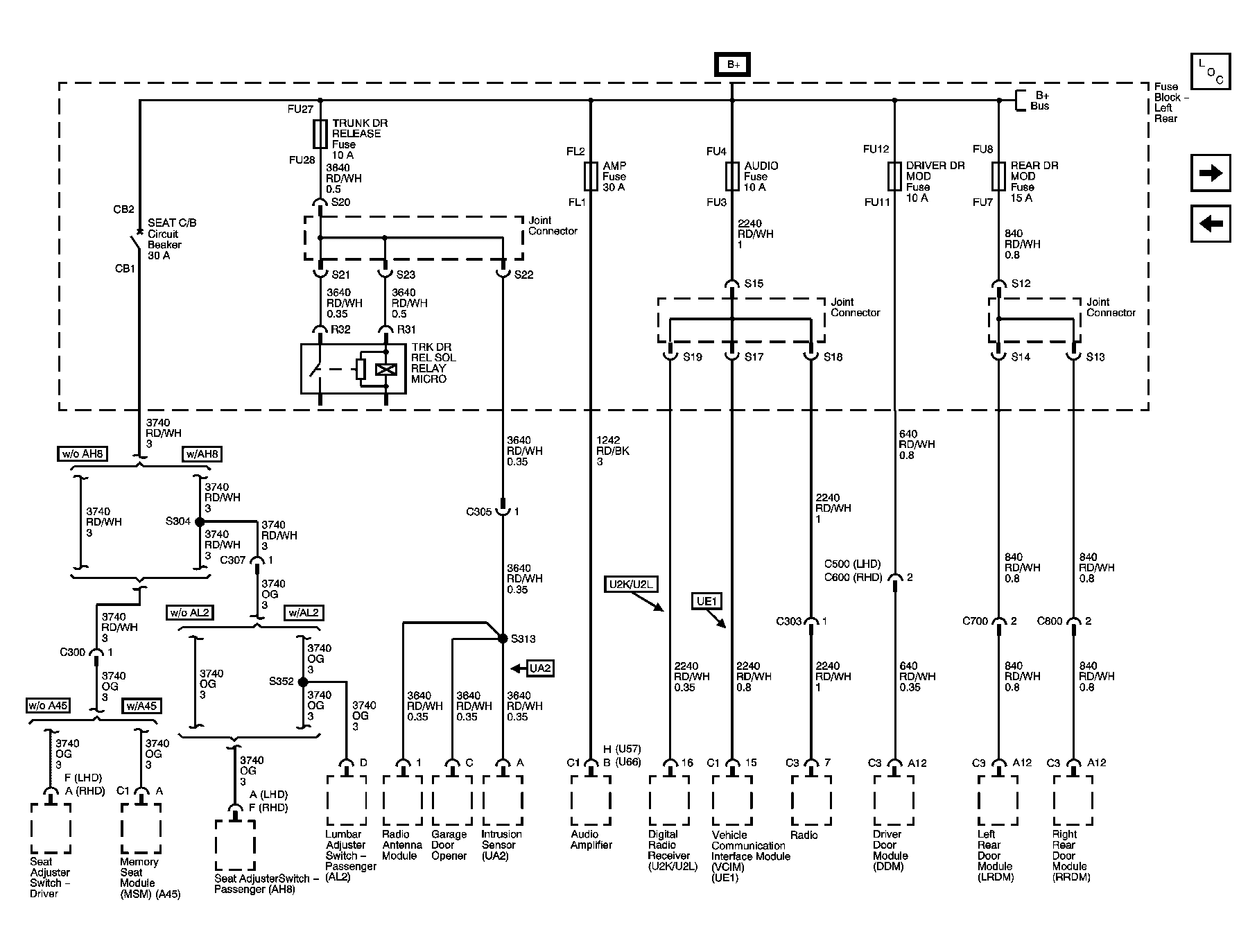

Fig 18: Left Rear Fuse Block SEAT Circuit Breaker, TRUNK Relay/Fuse, AMP, AUDIO, DRIVER DR MOD and REAR DR MOD Fuses

GM1325921

Courtesy of GENERAL MOTORS CORP.

Fig 19: Right Rear Fuse Block IGN 1 Relay, AIRBAG, RIM, ABS, PSGR DR MOD and TV/VICS Fuses

GM1325922

Courtesy of GENERAL MOTORS CORP.

Fig 20: Right Rear Fuse Block DR MOD PWR Circuit Breaker, CANISTER VENT, RIM/IGN SW, R FRT HTD SEAT MOD and POWER SOUNDER Fuses

GM1325923

Courtesy of GENERAL MOTORS CORP.
