Ground Distribution Schematics

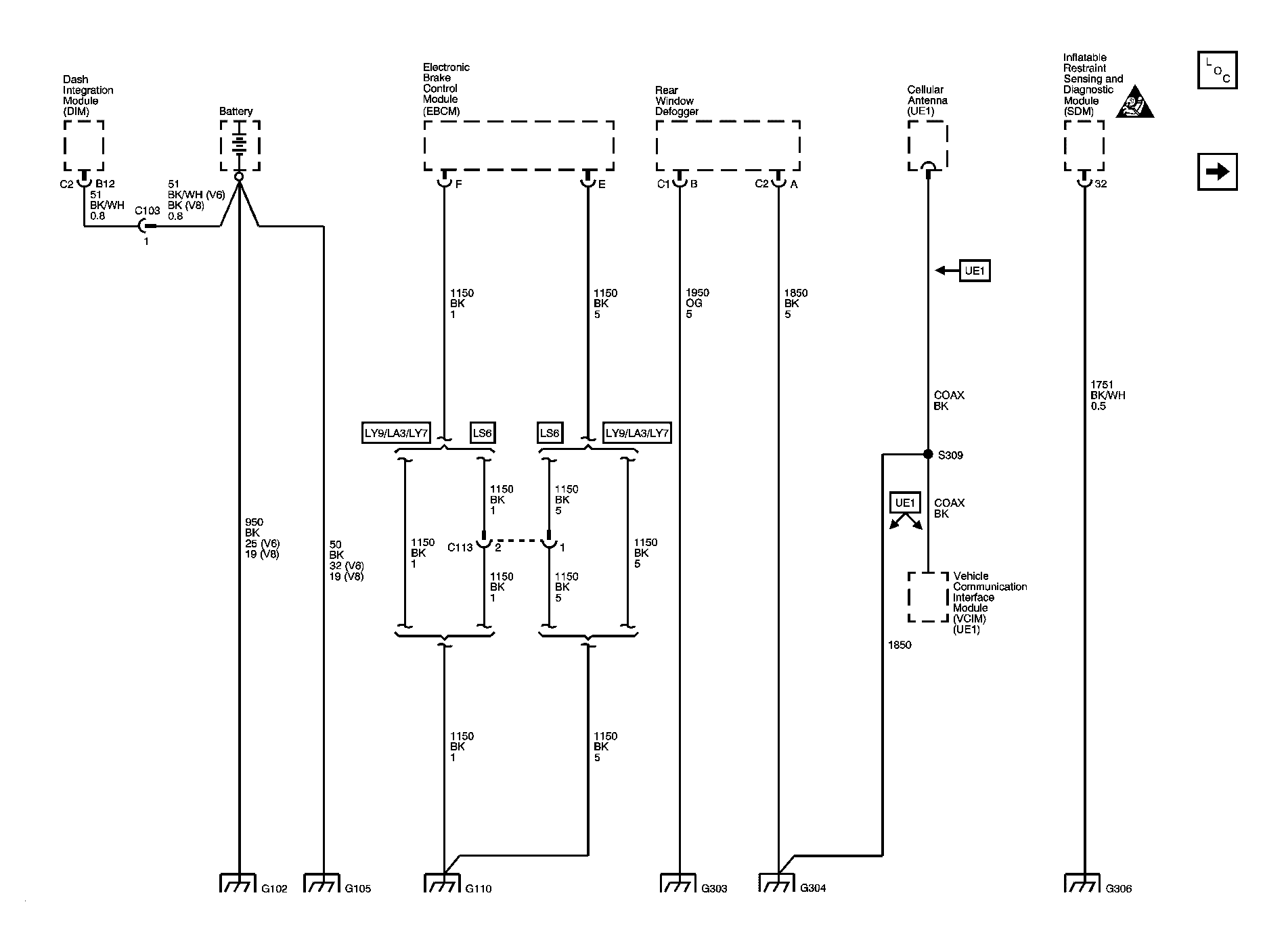

Fig 1: G102, G105 G110, G303, G304 and G306

GM1326104

Courtesy of GENERAL MOTORS CORP.

Fig 2: G100 and G107 - 2.6L/3.2L (LY9/LA3)

GM1326107

Courtesy of GENERAL MOTORS CORP.

Fig 3: G101

GM1326110

Courtesy of GENERAL MOTORS CORP.

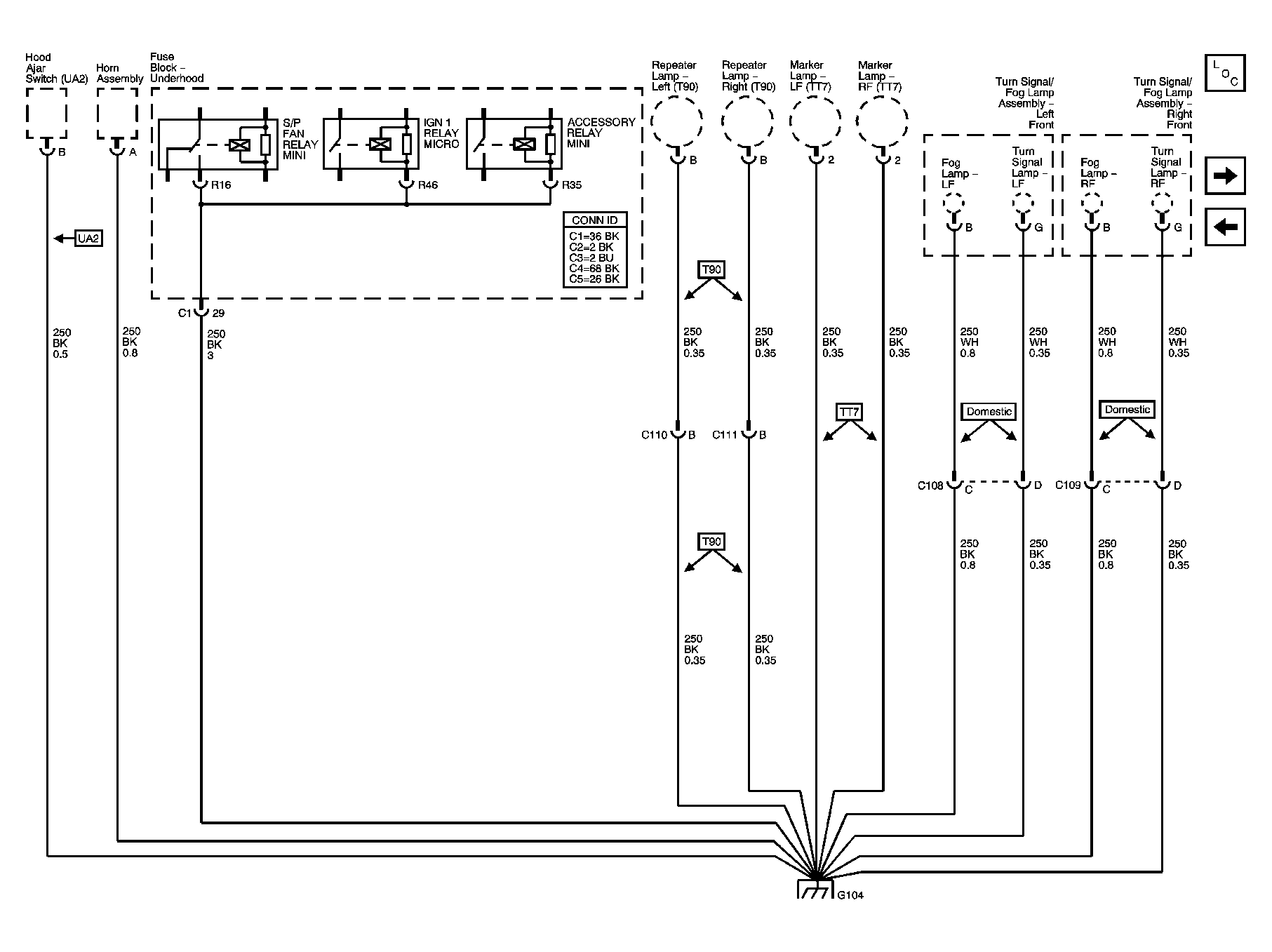

Fig 4: G104 (1 of 2)

GM1326111

Courtesy of GENERAL MOTORS CORP.

Fig 5: G104 (2 of 2)

GM1326113

Courtesy of GENERAL MOTORS CORP.

Fig 6: G130, G131, G132 and G133 - 3.6L (LY7)

GM1326115

Courtesy of GENERAL MOTORS CORP.

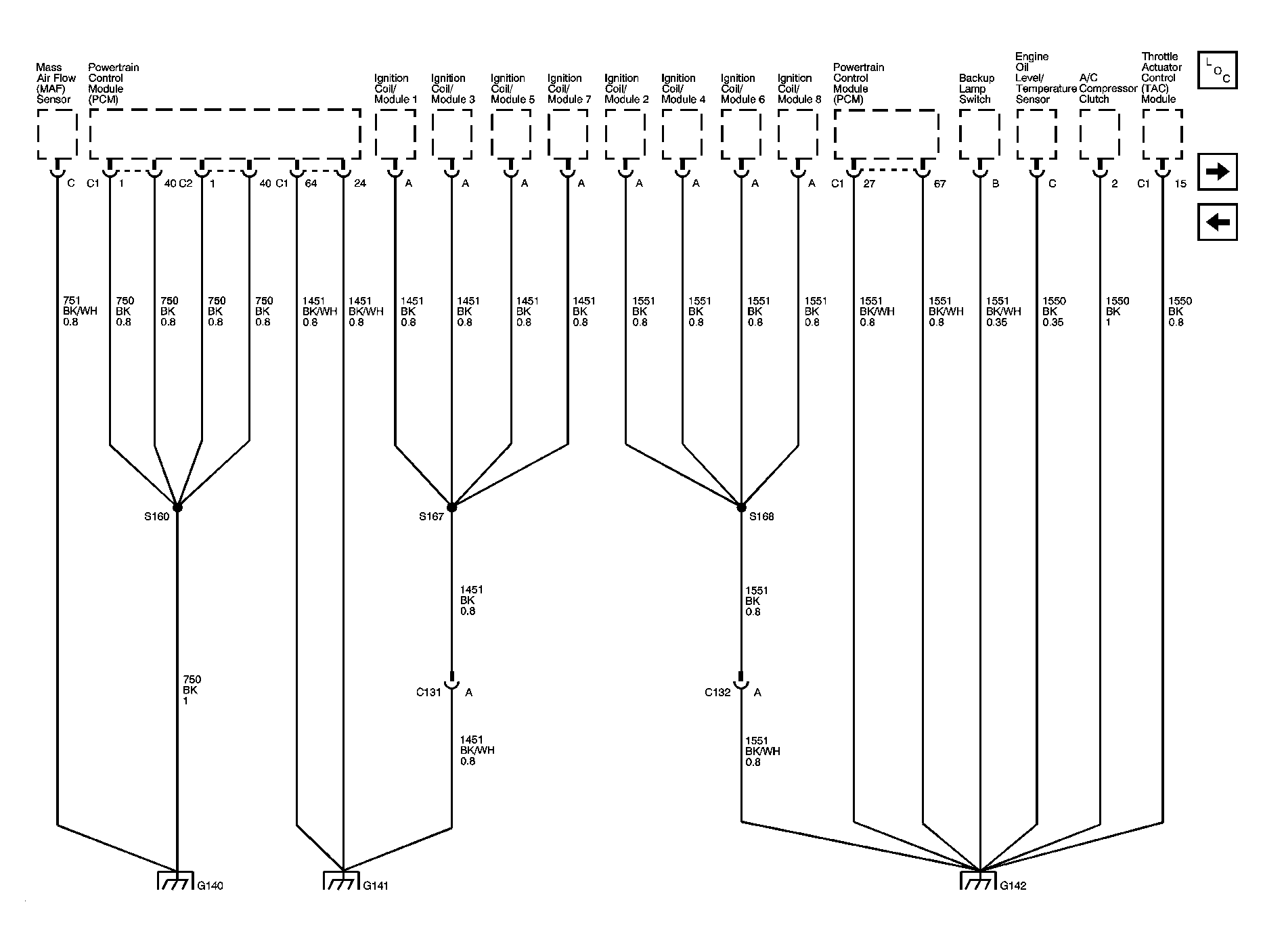

Fig 7: G140, G141 and G142 - 5.7L (LS6)

GM1344460

Courtesy of GENERAL MOTORS CORP.

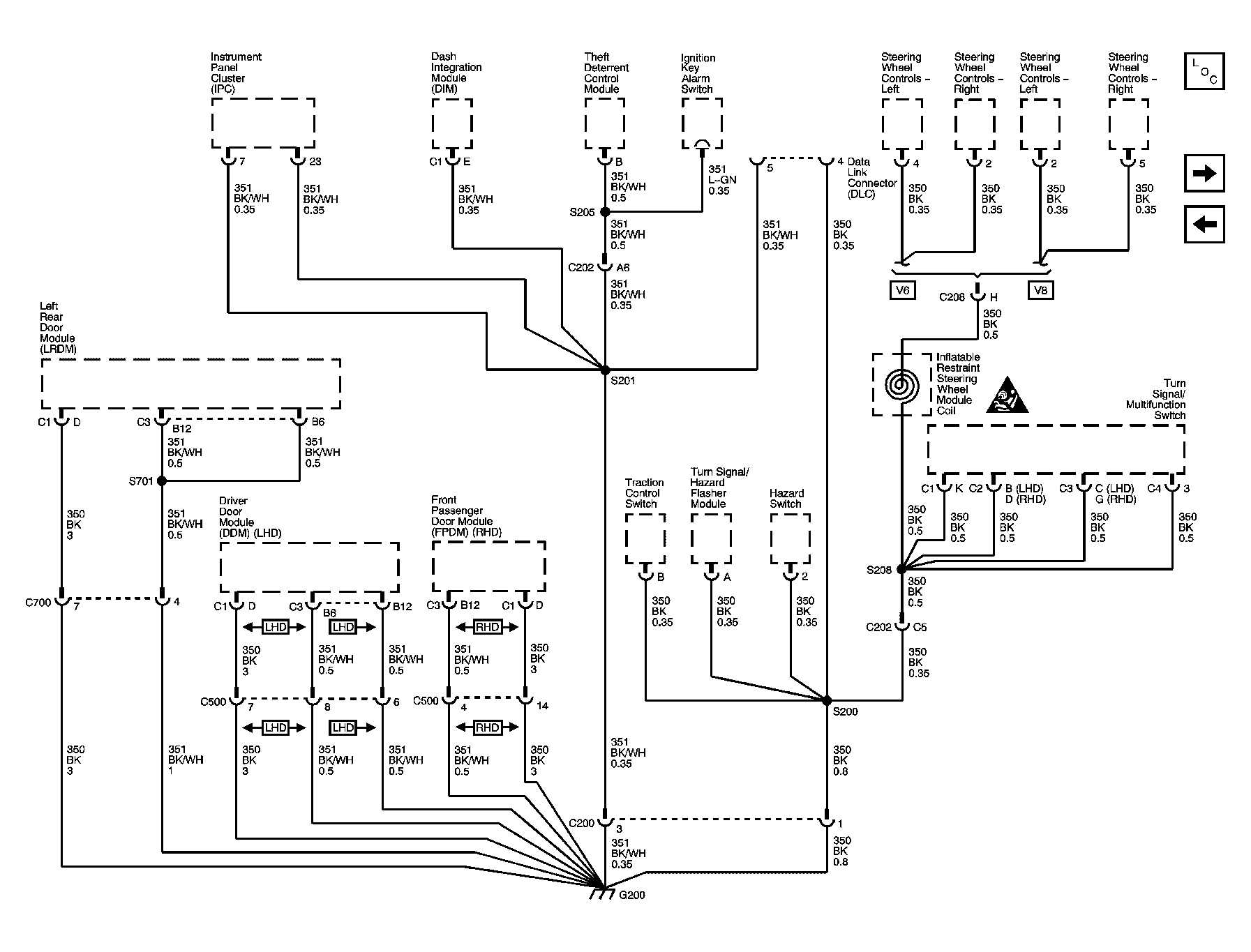

Fig 8: G200

GM1326117

Courtesy of GENERAL MOTORS CORP.

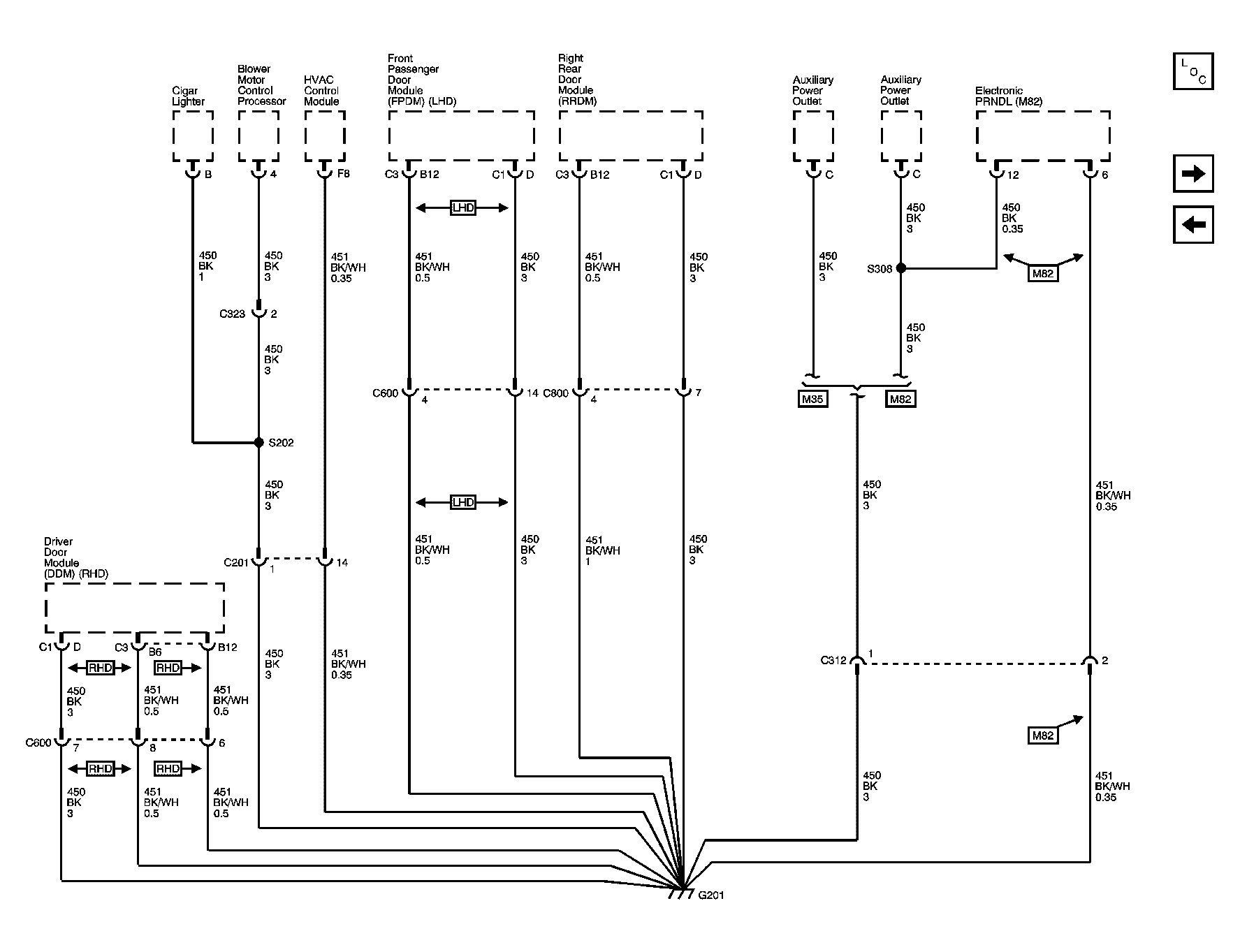

Fig 9: G201

GM1326119

Courtesy of GENERAL MOTORS CORP.

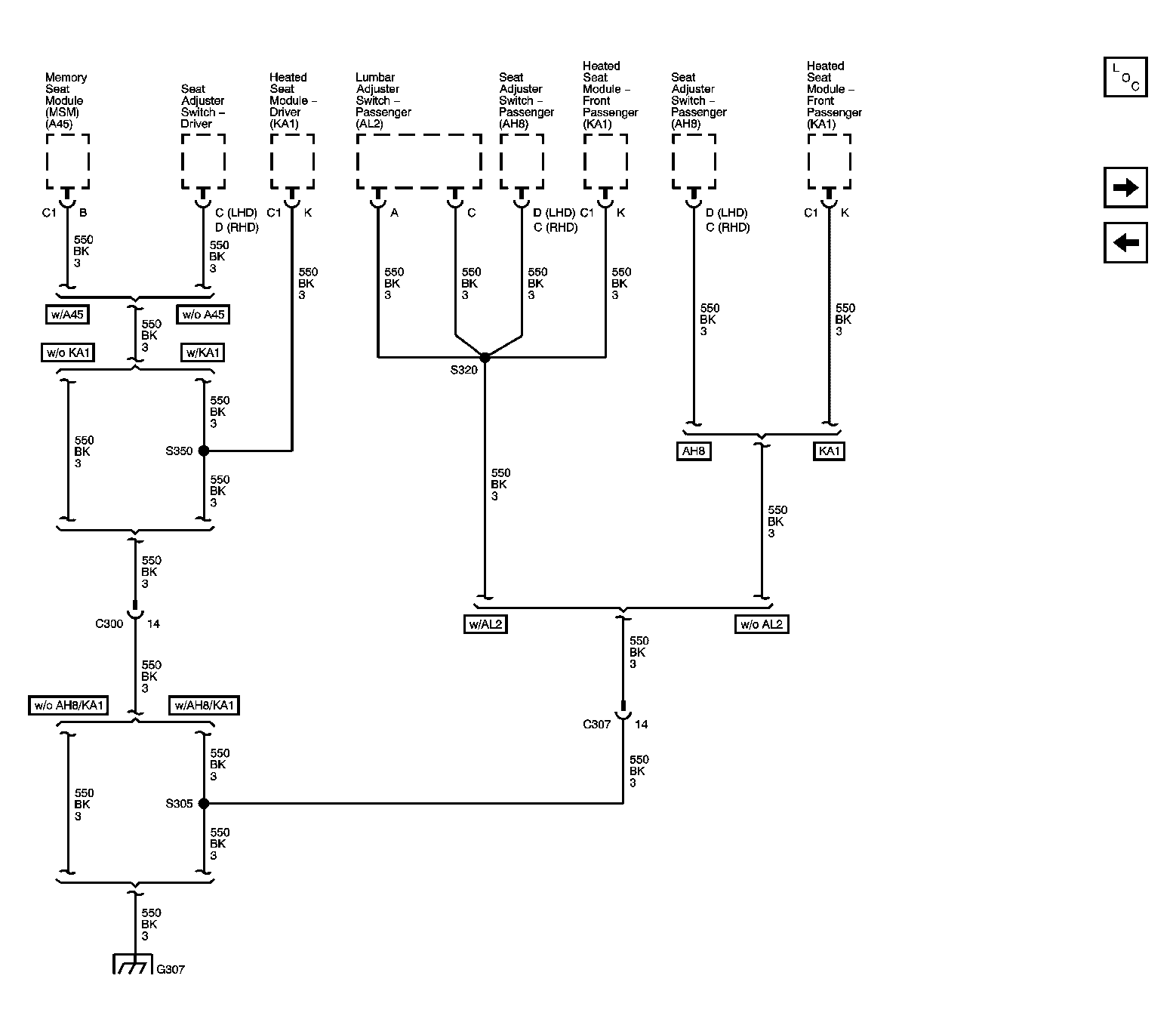

Fig 10: G307

GM1326120

Courtesy of GENERAL MOTORS CORP.

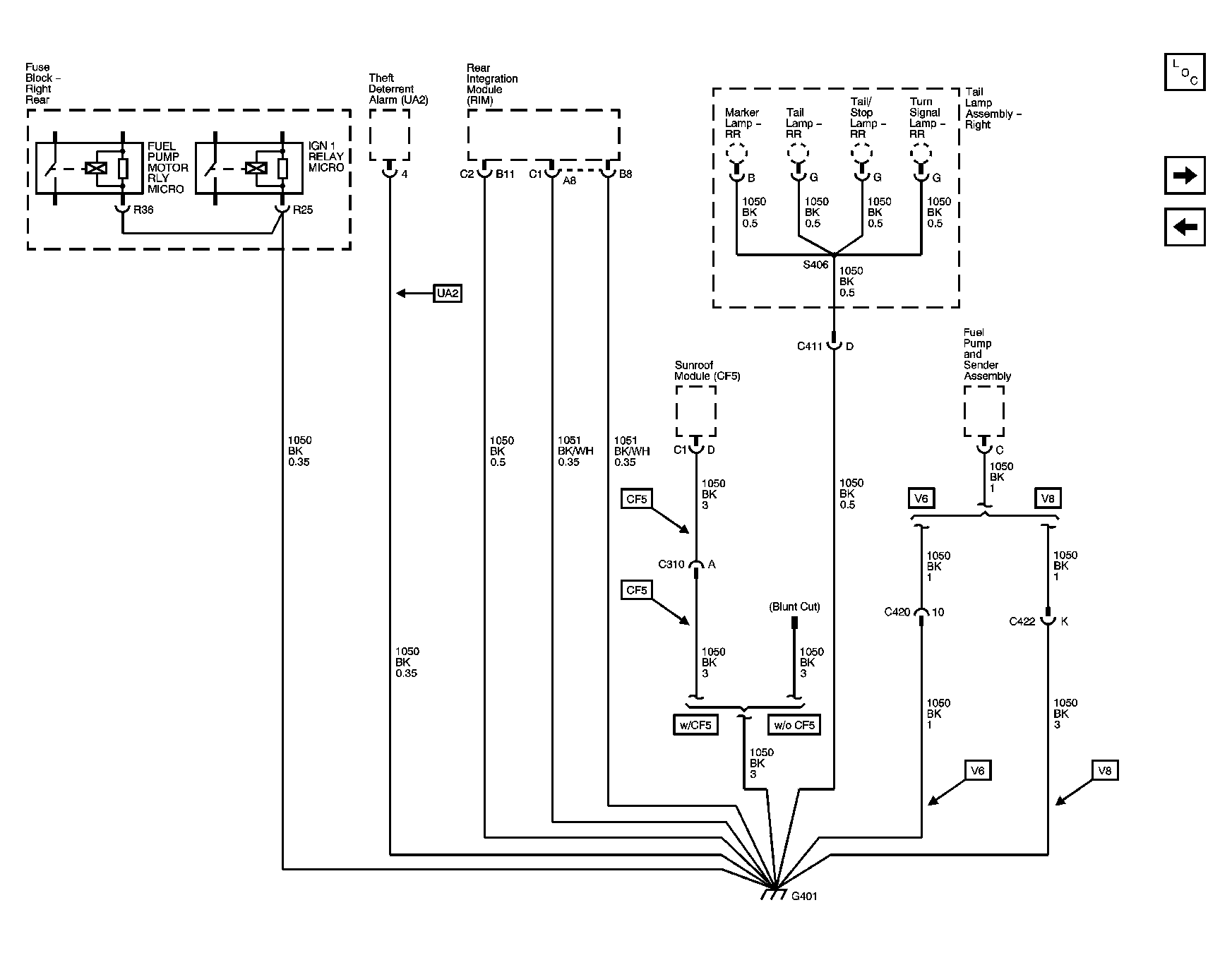

Fig 11: G401

GM1326122

Courtesy of GENERAL MOTORS CORP.

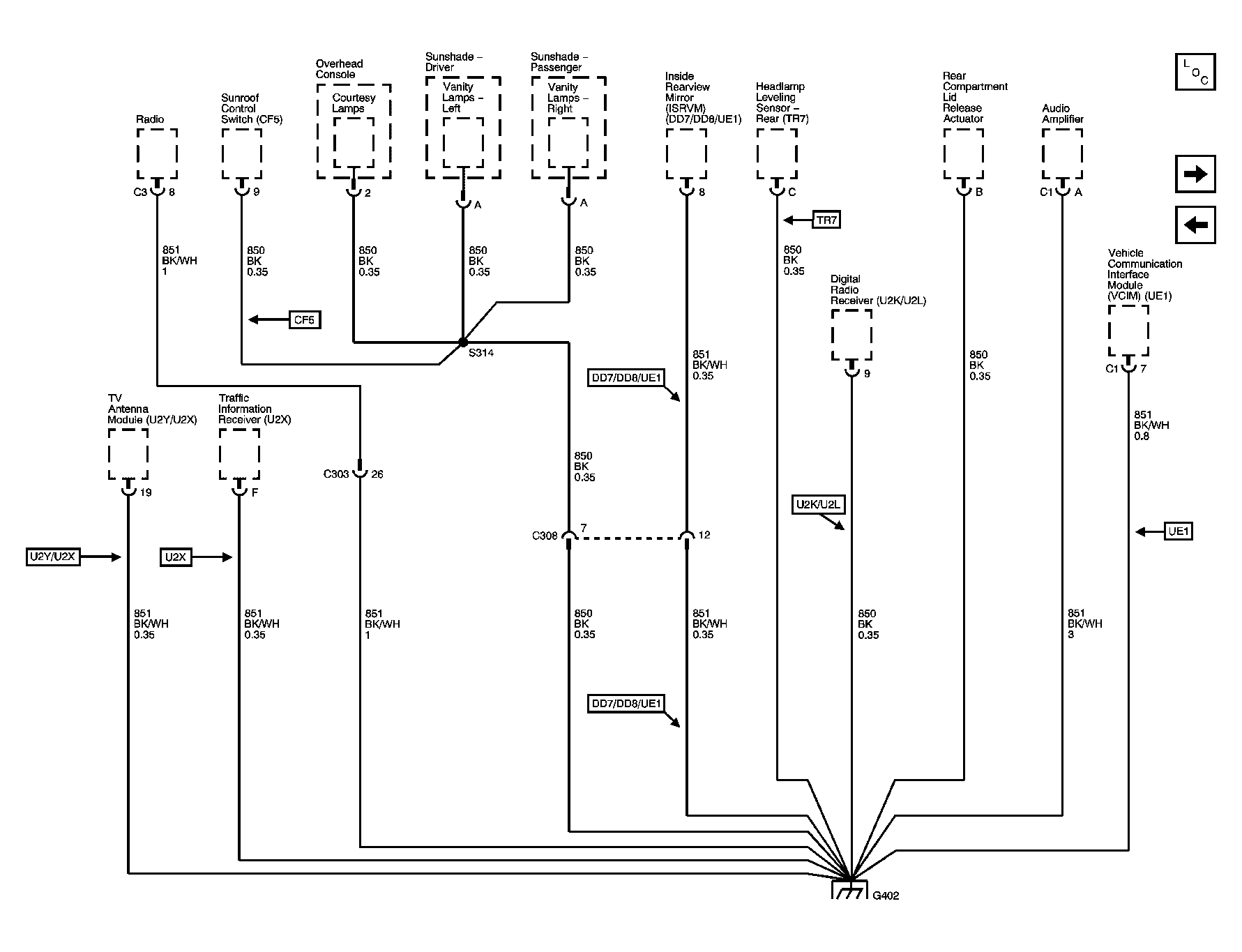

Fig 12: G402 (1 of 2)

GM1326124

Courtesy of GENERAL MOTORS CORP.

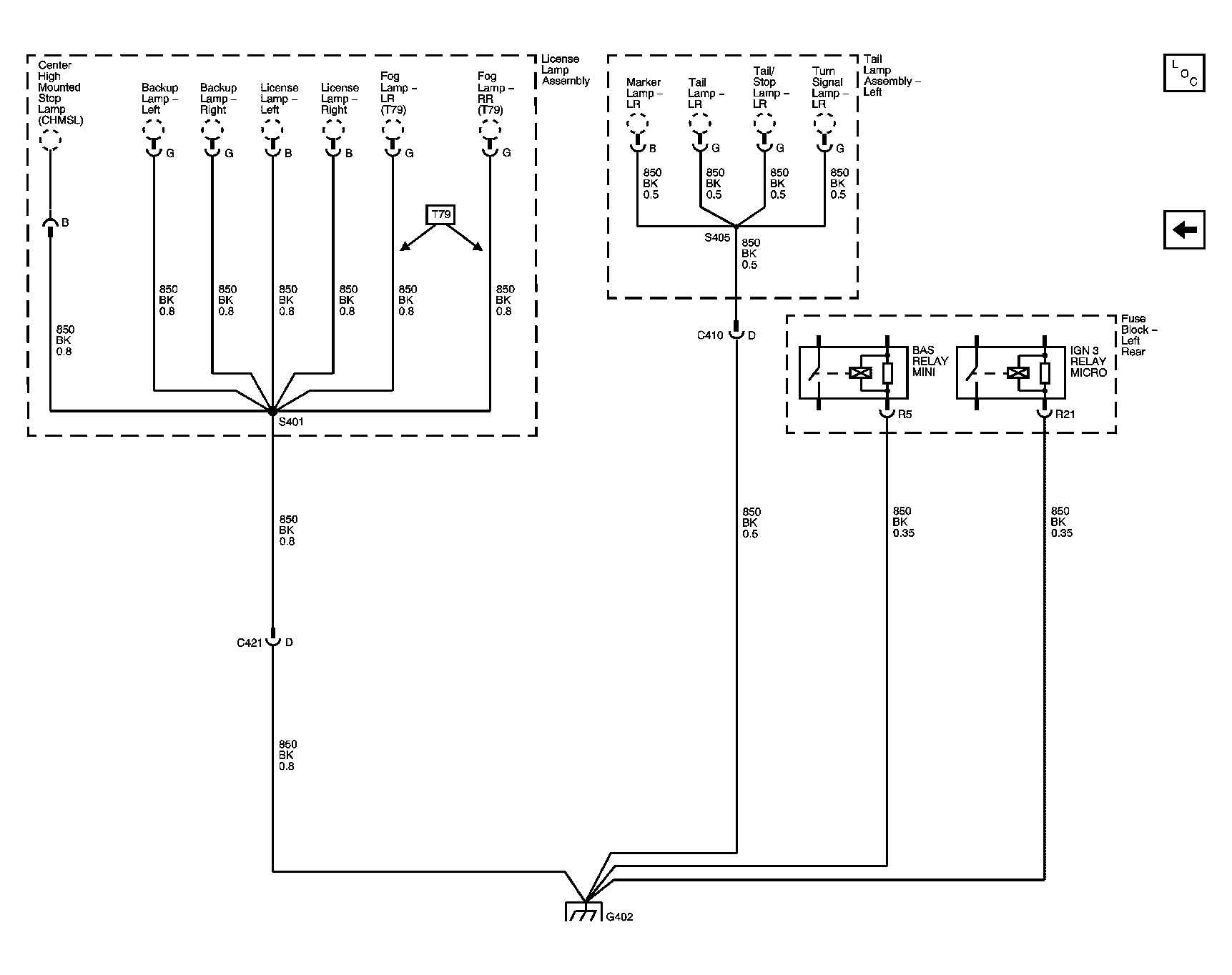

Fig 13: G402 (2 of 2)

GM1326125

Courtesy of GENERAL MOTORS CORP.
