Instrument Cluster Schematics

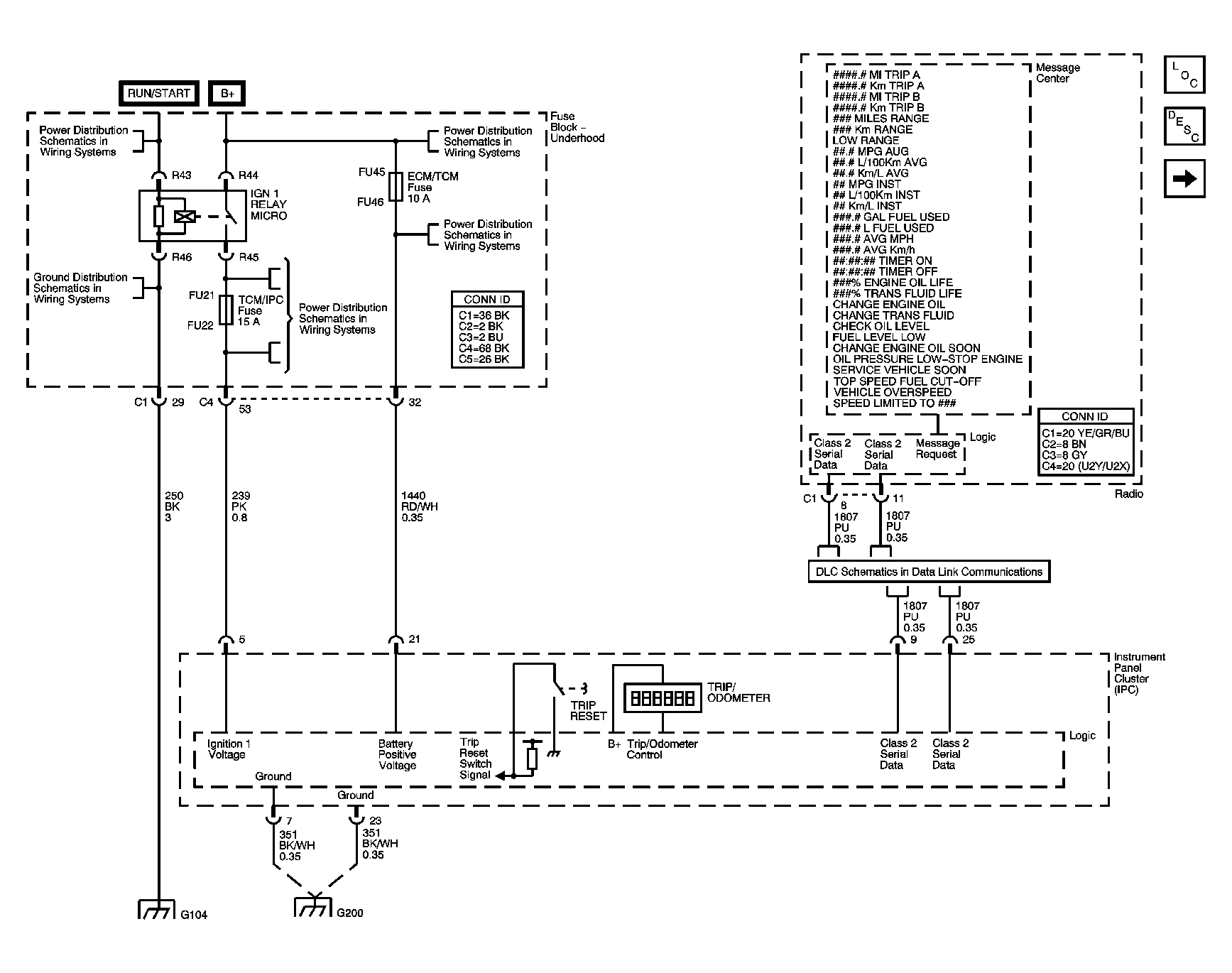

Fig 1: Power, Ground, Serial Data, Odometer, and DIC

Courtesy of GENERAL MOTORS CORP.

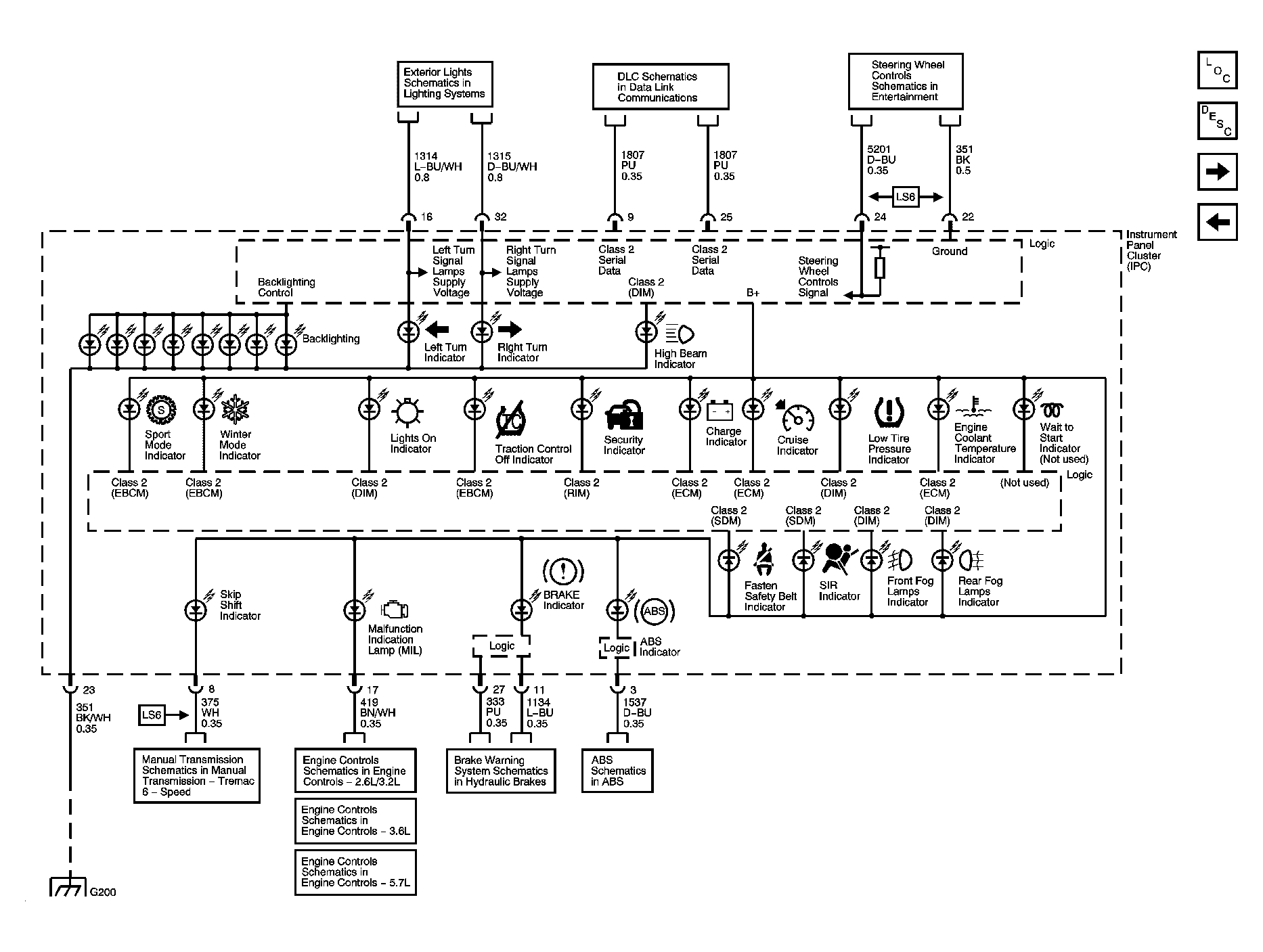

Fig 2: Indicators

Courtesy of GENERAL MOTORS CORP.

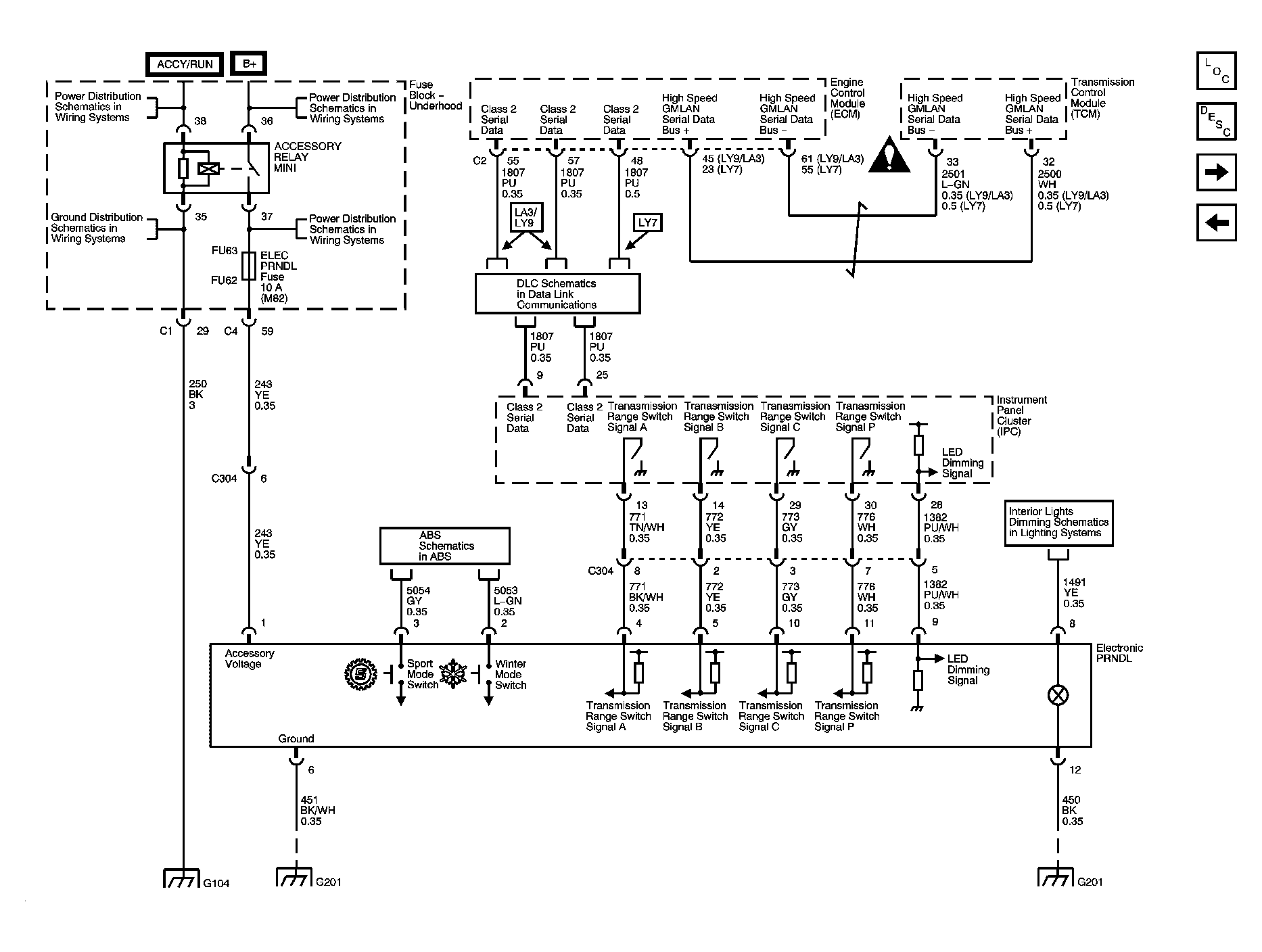

Fig 3: Electronic PRNDL (M82)

Courtesy of GENERAL MOTORS CORP.

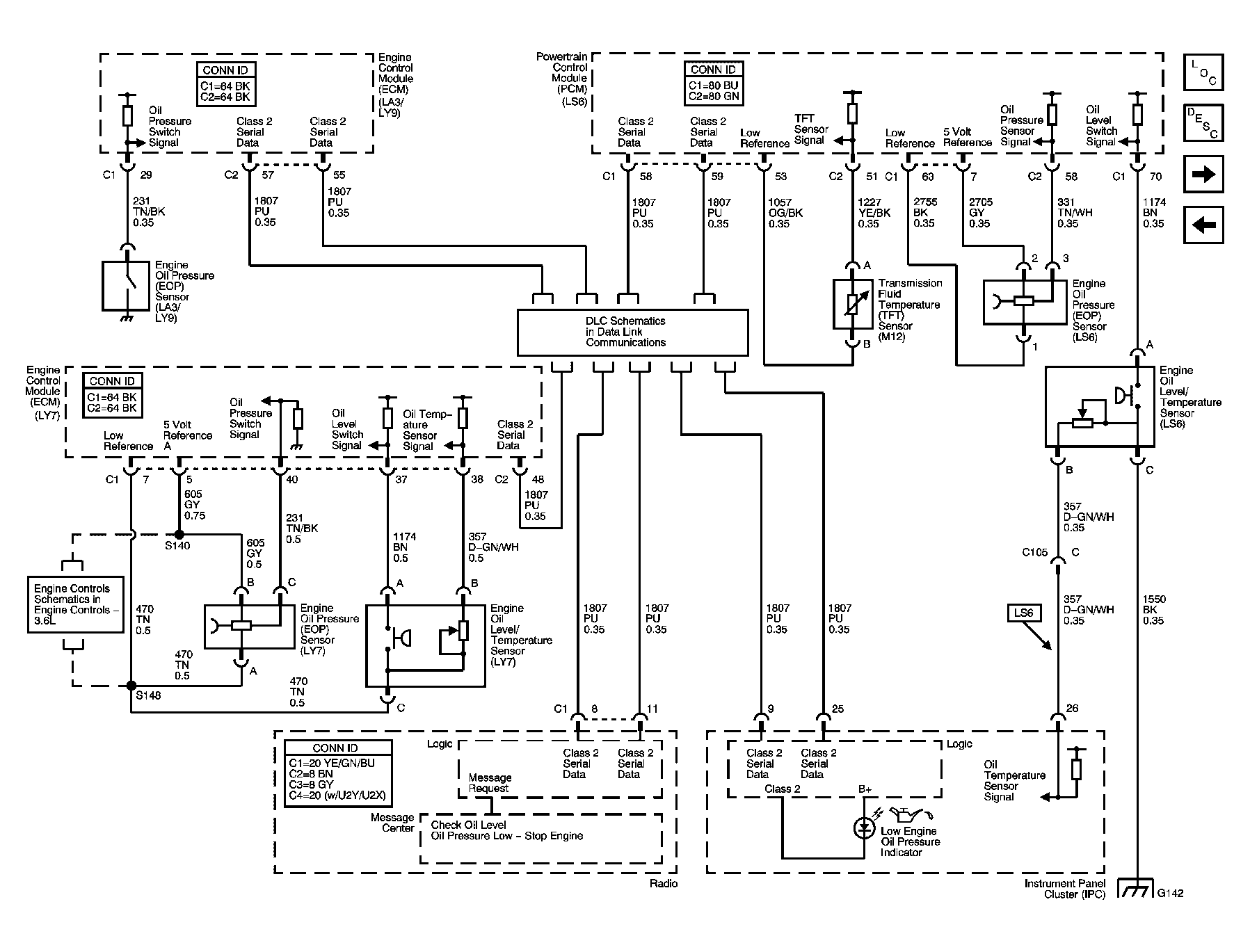

Fig 4: EOP Sensors, Engine Oil Level/Temperature Sensors, DIC and Indicator

Courtesy of GENERAL MOTORS CORP.

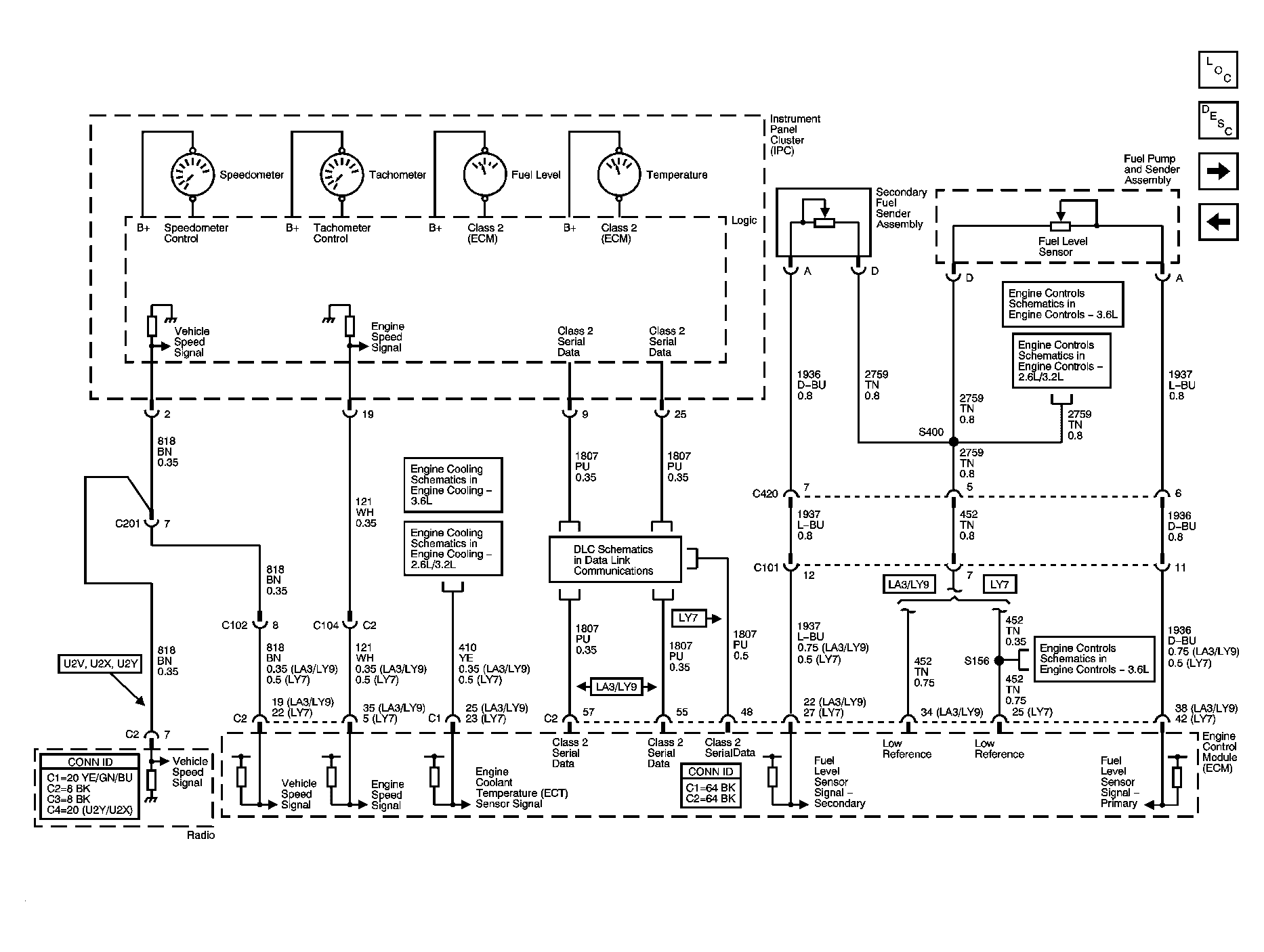

Fig 5: Gages - 2.6L/3.2L/3.6L (LY9/LA3/LY7)

Courtesy of GENERAL MOTORS CORP.

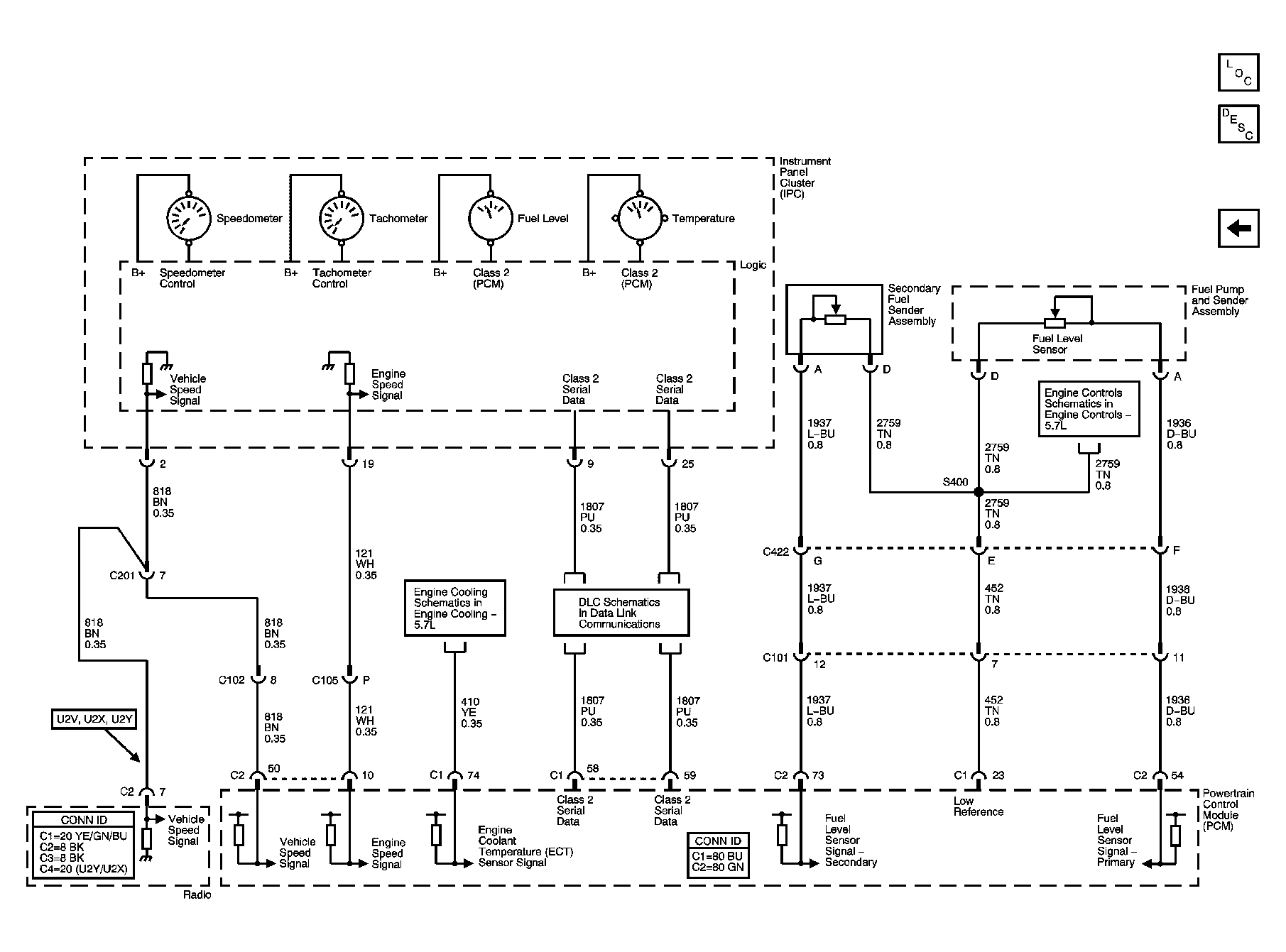

Fig 6: Gages - 5.7L (LS6)

Courtesy of GENERAL MOTORS CORP.
