Hydraulic Brakes Component Views

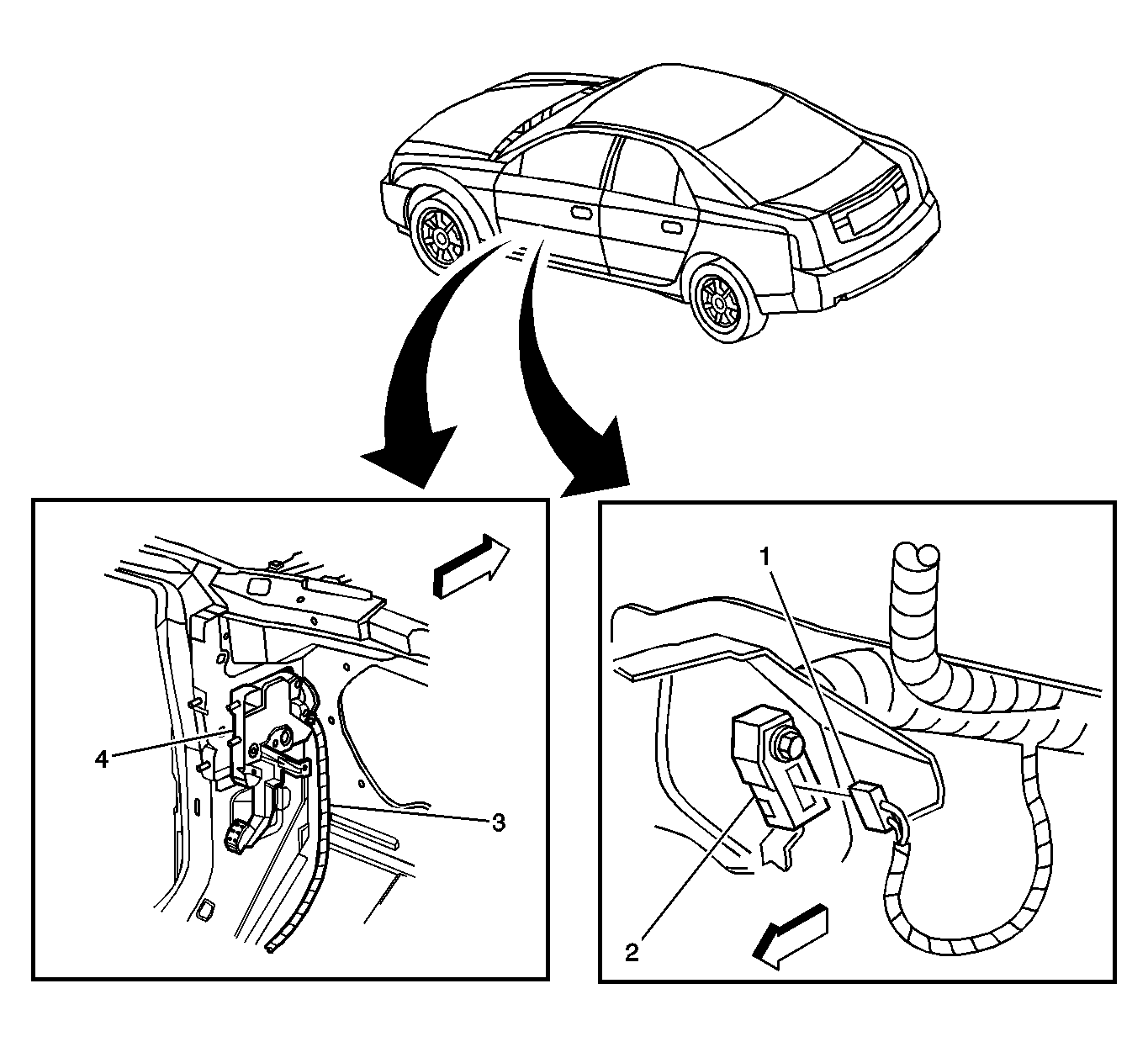

| Callout | Component Name |
|---|---|
| 1 | Park Brake Switch Connector |
| 2 | Park Brake Switch |
| 3 | Park Brake Cable |
| 4 | Park Brake Assembly |

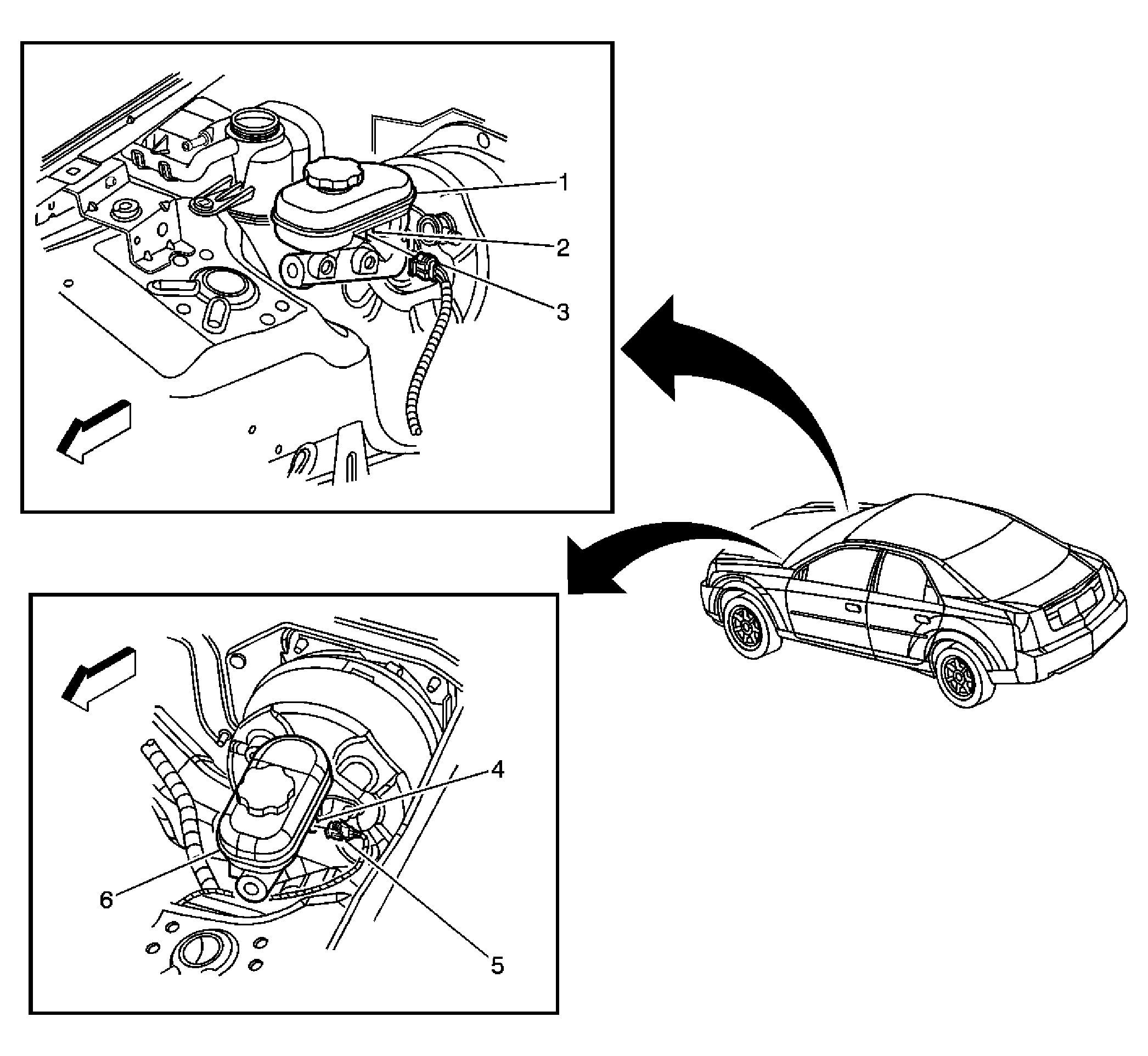

| Callout | Component Name |
|---|---|
| 1 | Master Cylinder (RHD) |
| 2 | Brake Fluid level Switch (RHD) |
| 3 | Brake Fluid level Switch Connector (RHD) |
| 4 | Brake Fluid level Switch (LHD) |
| 5 | Brake Fluid level Switch Connector (LHD) |
| 6 | Master Cylinder (LHD) |
