Power Roof Systems Component Views

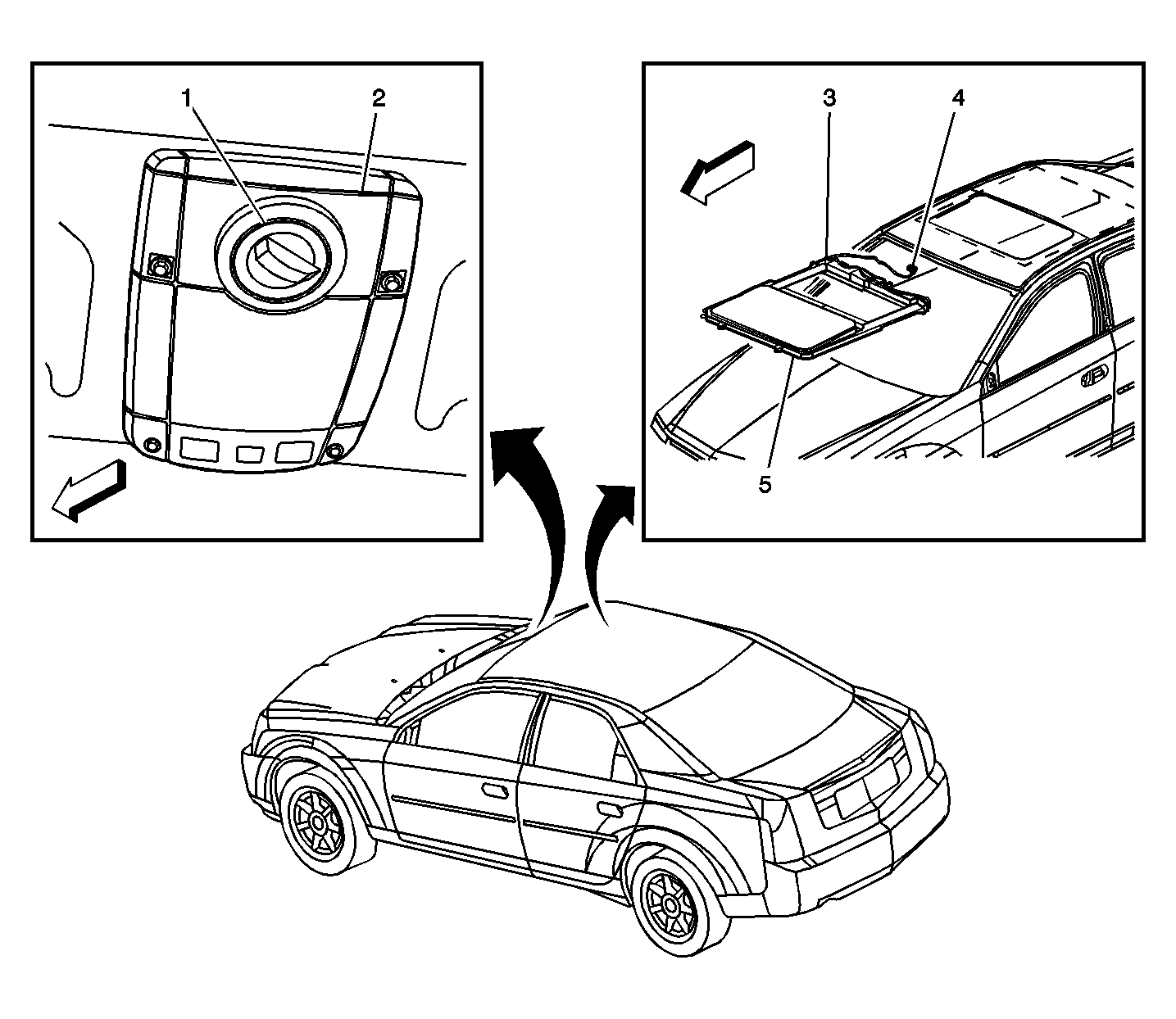

Fig 1: Roof Subsystem Components (CF5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Control Switch
2	Overhead Console
3	Sunroof Motor and Sunroof Module
4	Sunroof Module Connector
5	Sunroof Control Module

Fig 2: Power Sunroof Components (CF5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Glass Panel
2	Sunroof Module
3	Sunroof Motor (w/Limit Switch and Obstruction Sensors)
4	Sunroof Rear Drain Hose
5	Sunroof Front Drain Hose
