Driver Seat Schematics

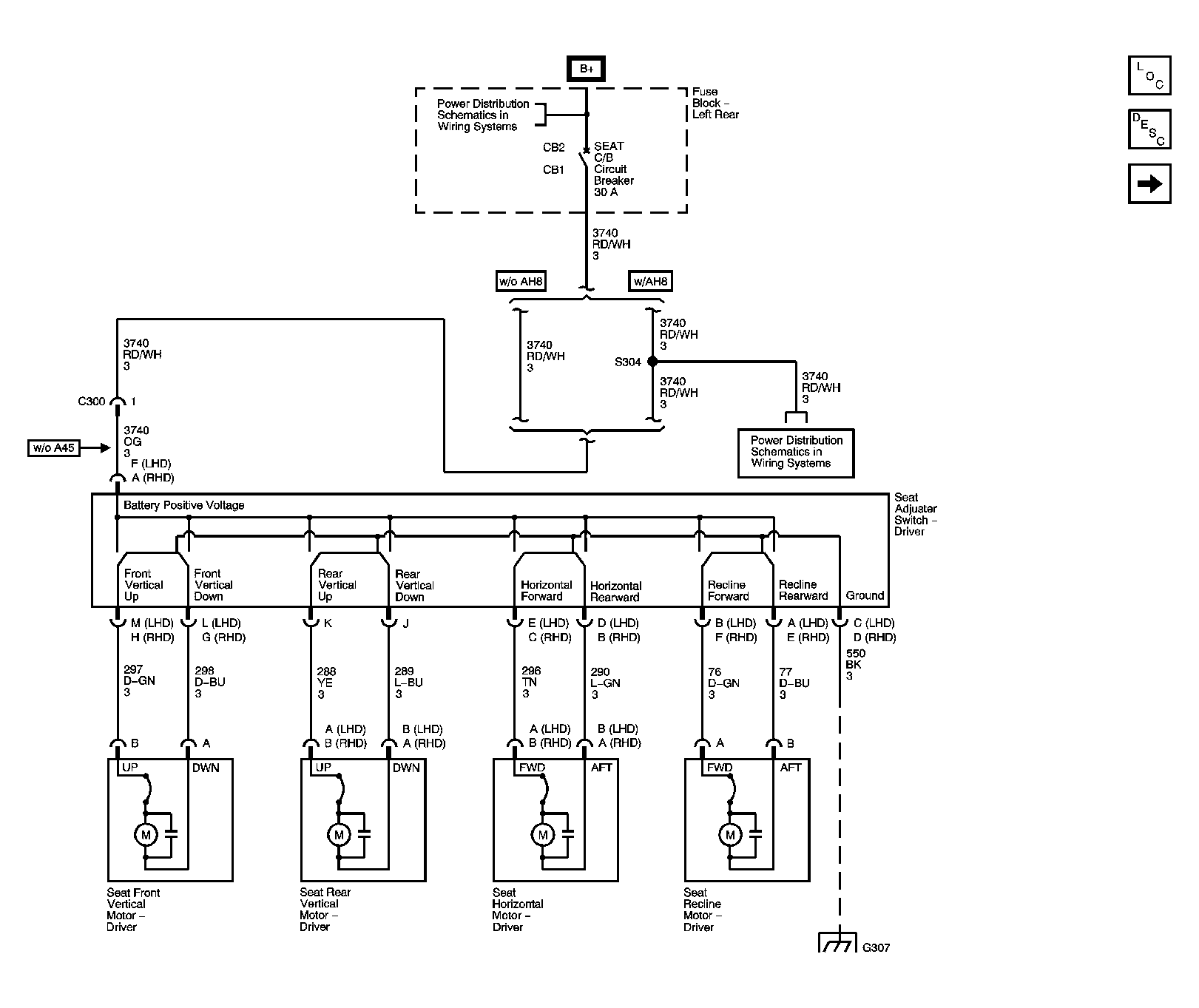

Fig 1: Power Seat Schematic - Driver

Courtesy of GENERAL MOTORS CORP.

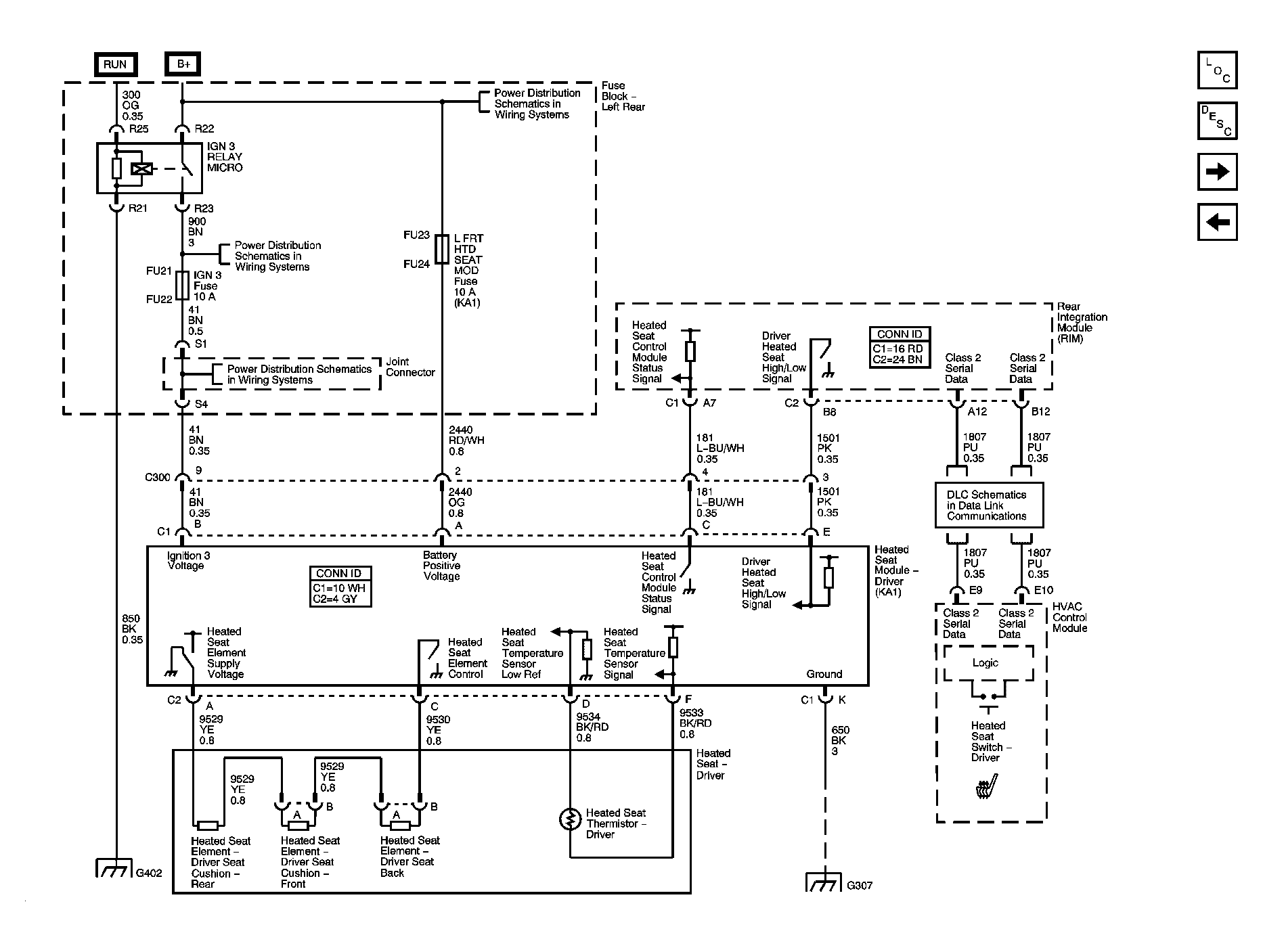

Fig 2: Heated Seat Schematic - Driver (KA1)

Courtesy of GENERAL MOTORS CORP.

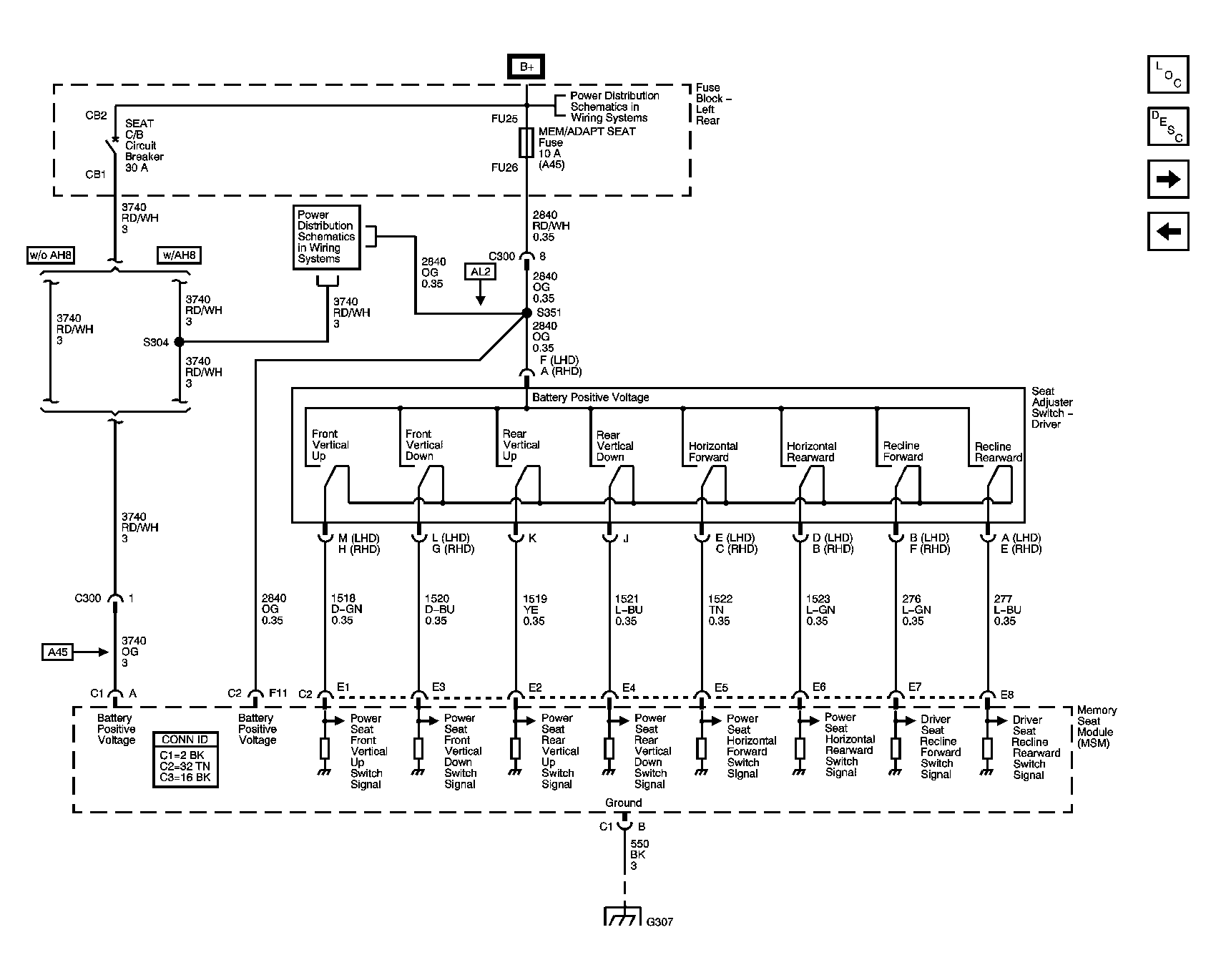

Fig 3: Memory Seat Module (MSM) Power, Ground and Driver Seat Adjuster Switch (A45) Schematic

Courtesy of GENERAL MOTORS CORP.

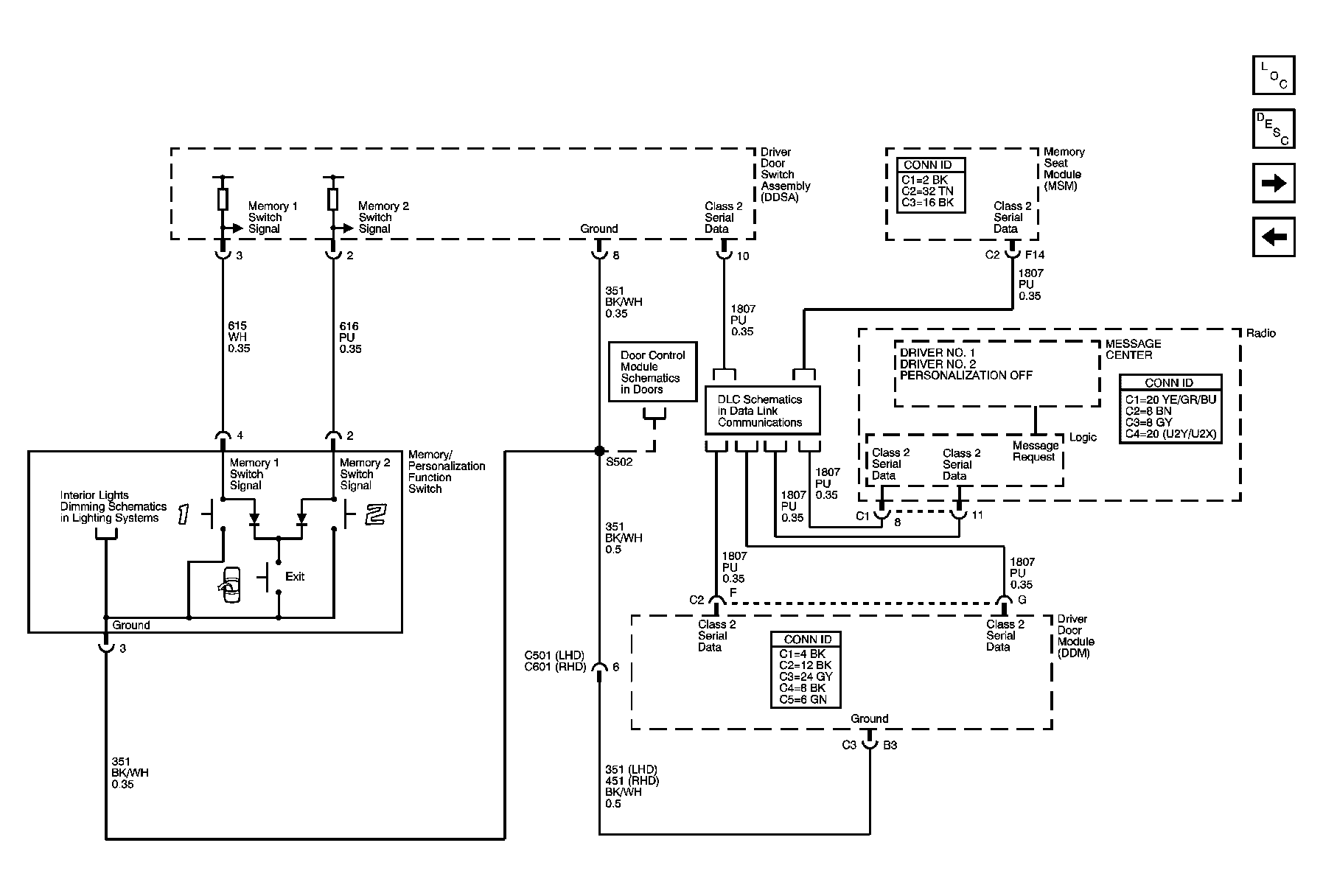

Fig 4: Memory/Personalization Function Switch (A45) Schematic

Courtesy of GENERAL MOTORS CORP.

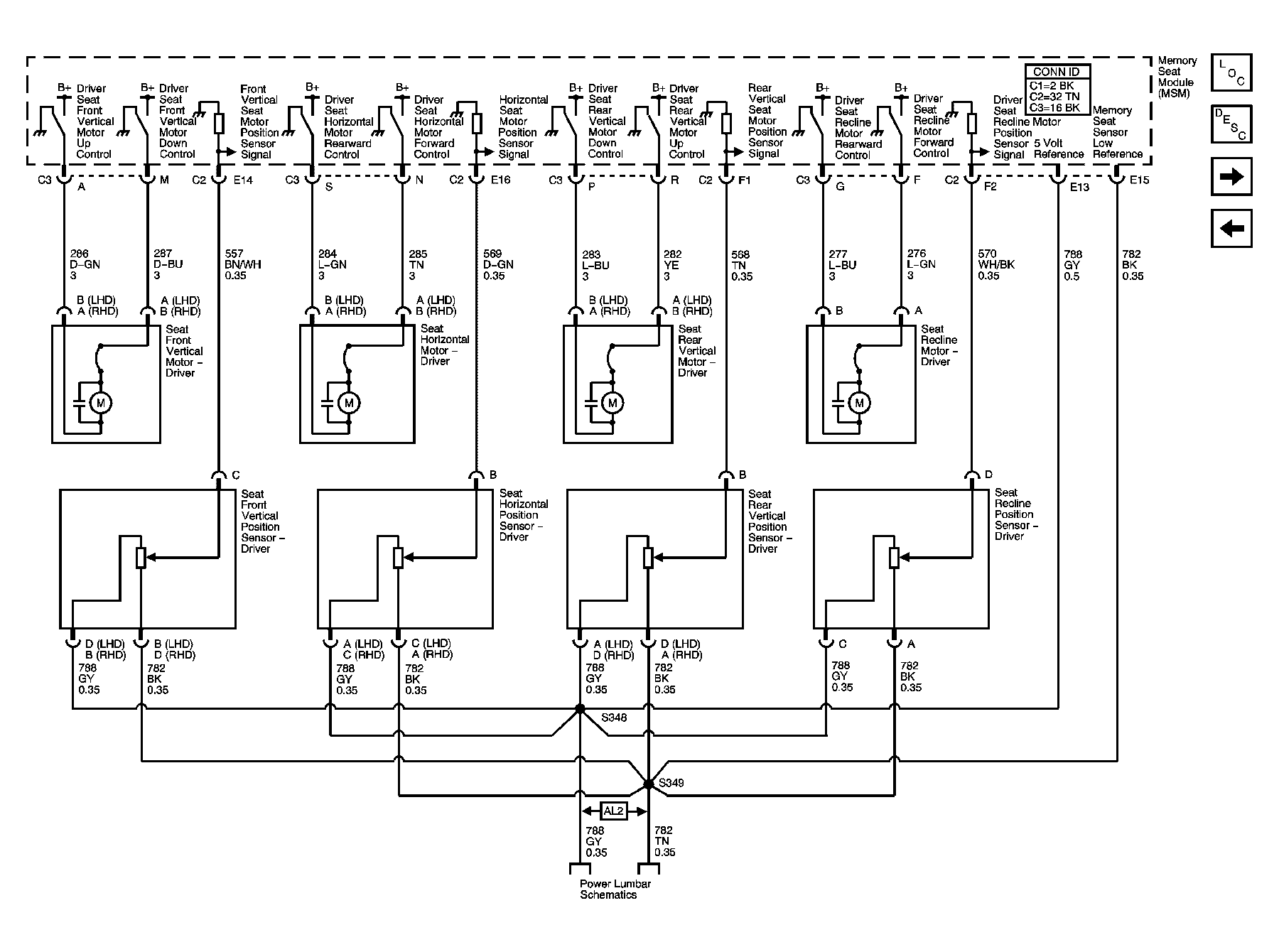

Fig 5: Memory Seat Position Sensors and Motors (A45) Schematic

Courtesy of GENERAL MOTORS CORP.

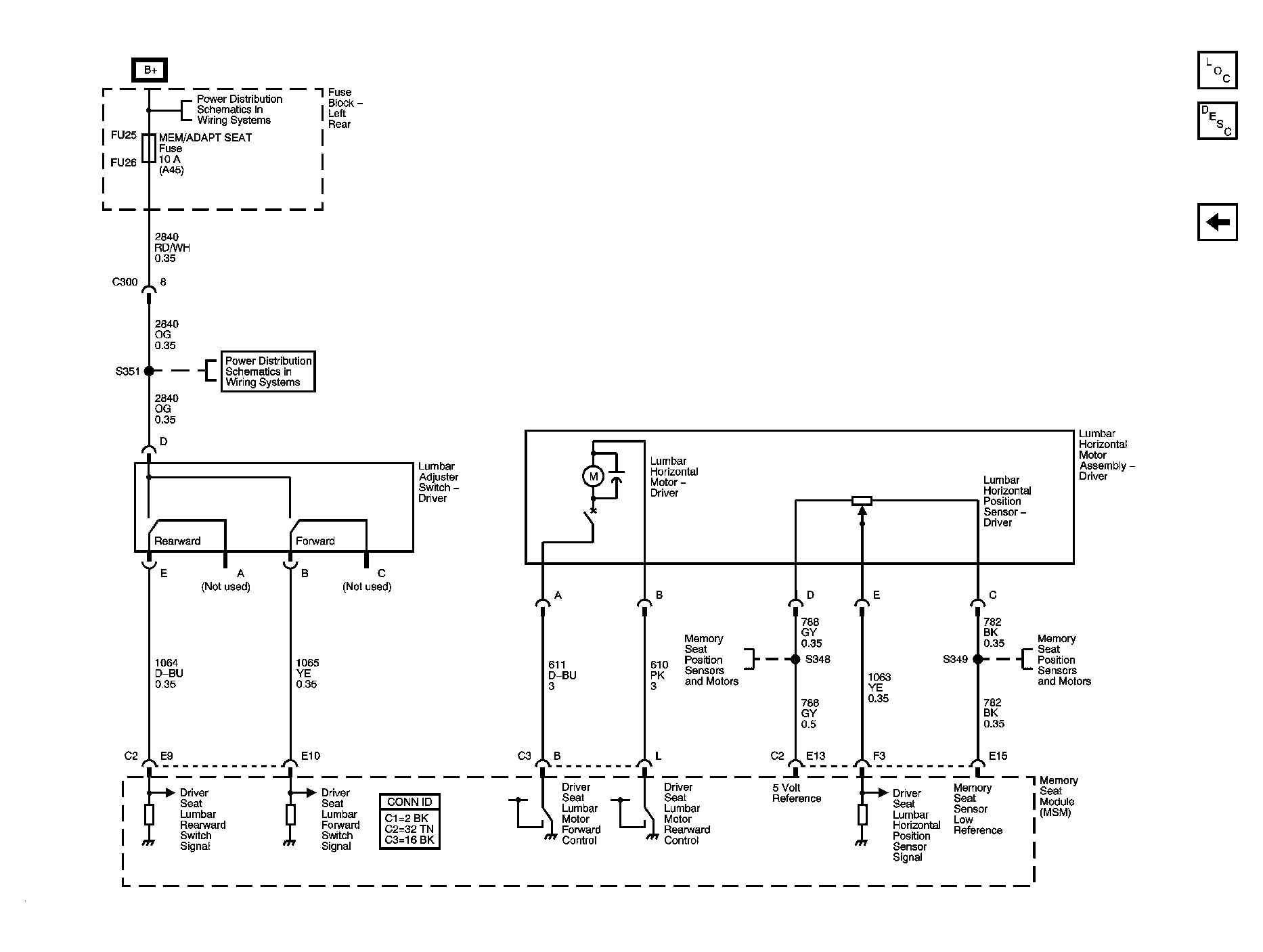

Fig 6: Power Lumbar Schematic - Driver (AL2)

Courtesy of GENERAL MOTORS CORP.
