Theft Deterrent System Schematics

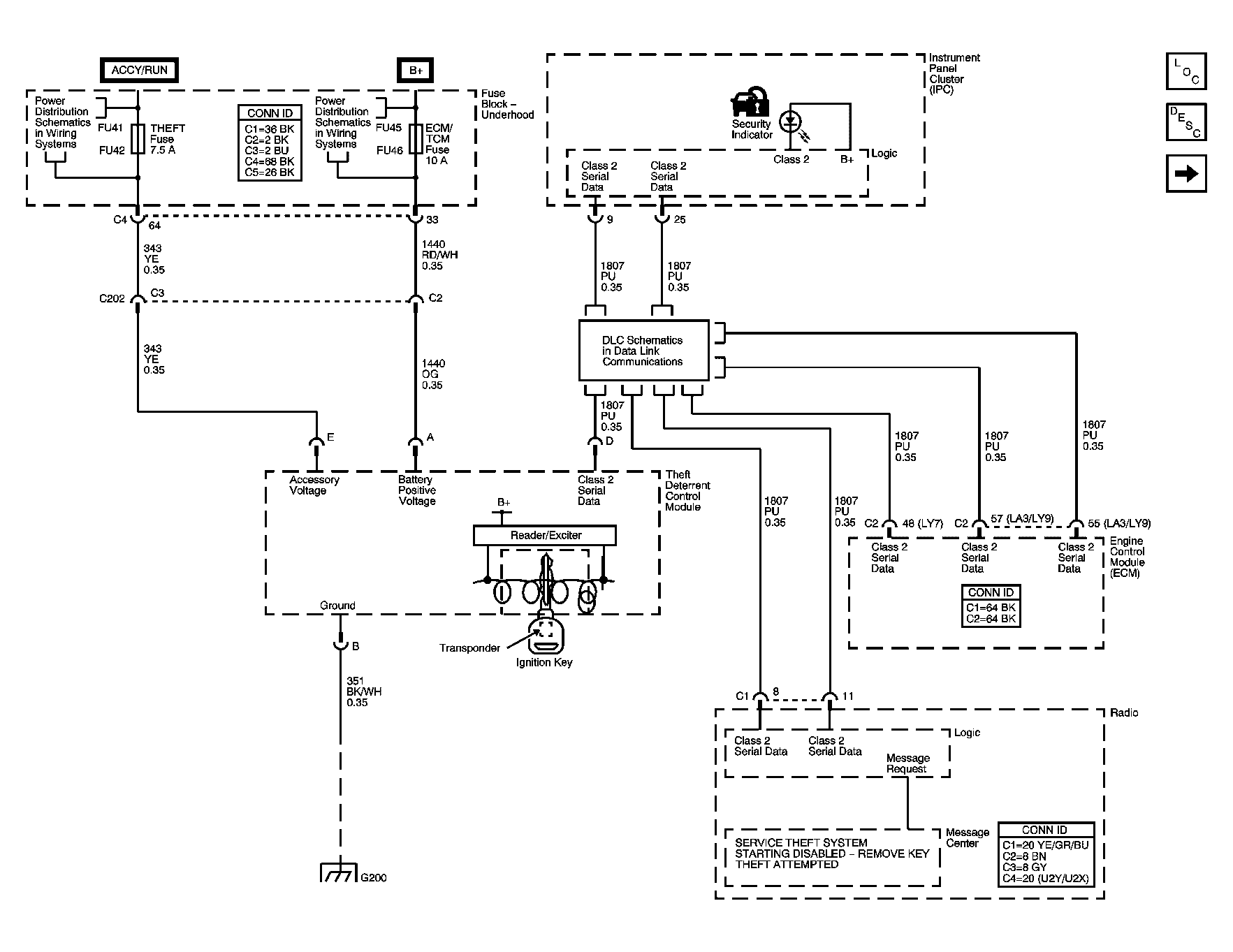

Fig 1: Power, Ground, Serial Data, Theft Deterrent Control Module And Indicator
GM1316867Courtesy of GENERAL MOTORS CORP.

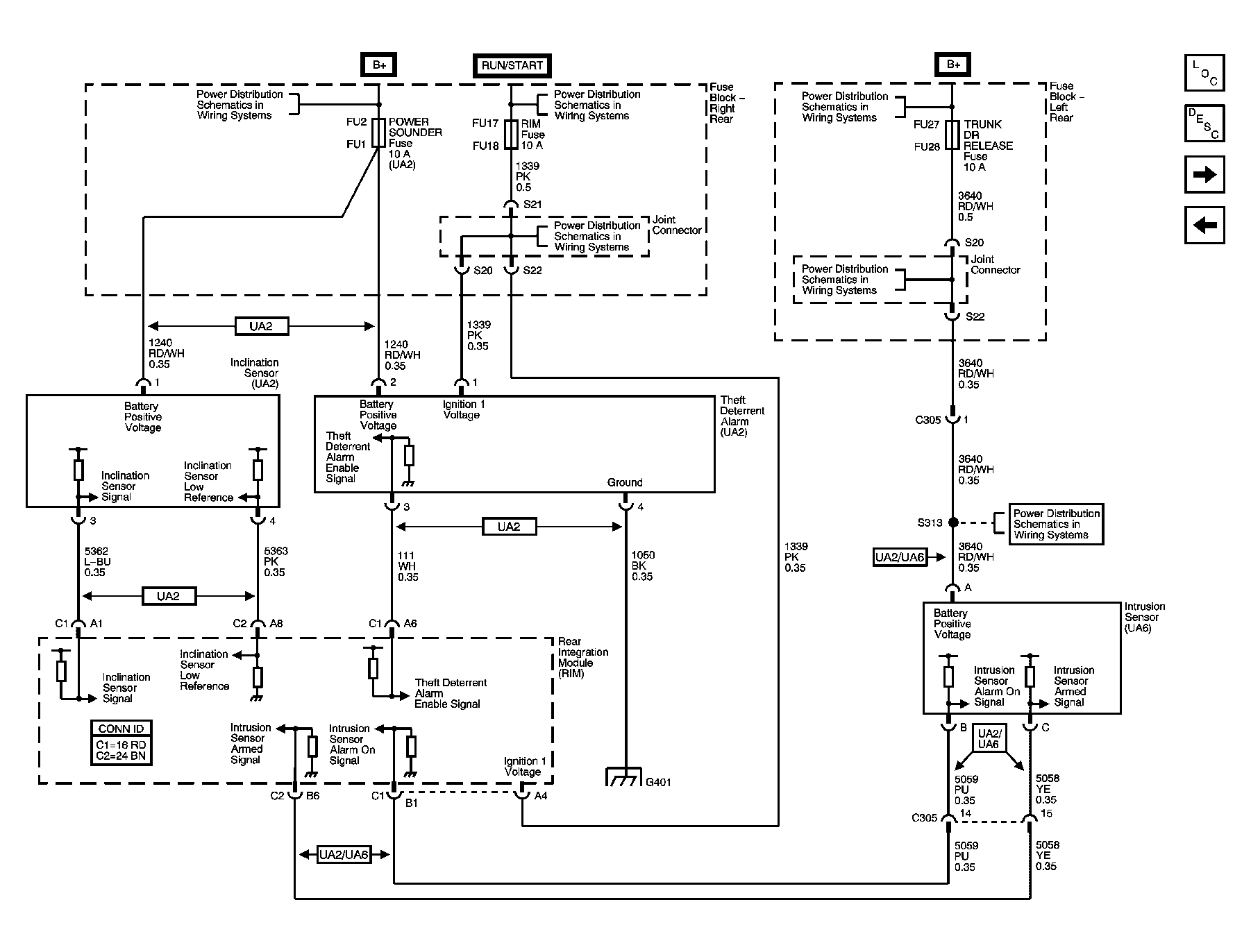

Fig 2: Theft Deterrent Alarm, Intrusion Sensor And Inclination Sensor - Export W/ UA2
GM1316871Courtesy of GENERAL MOTORS CORP.

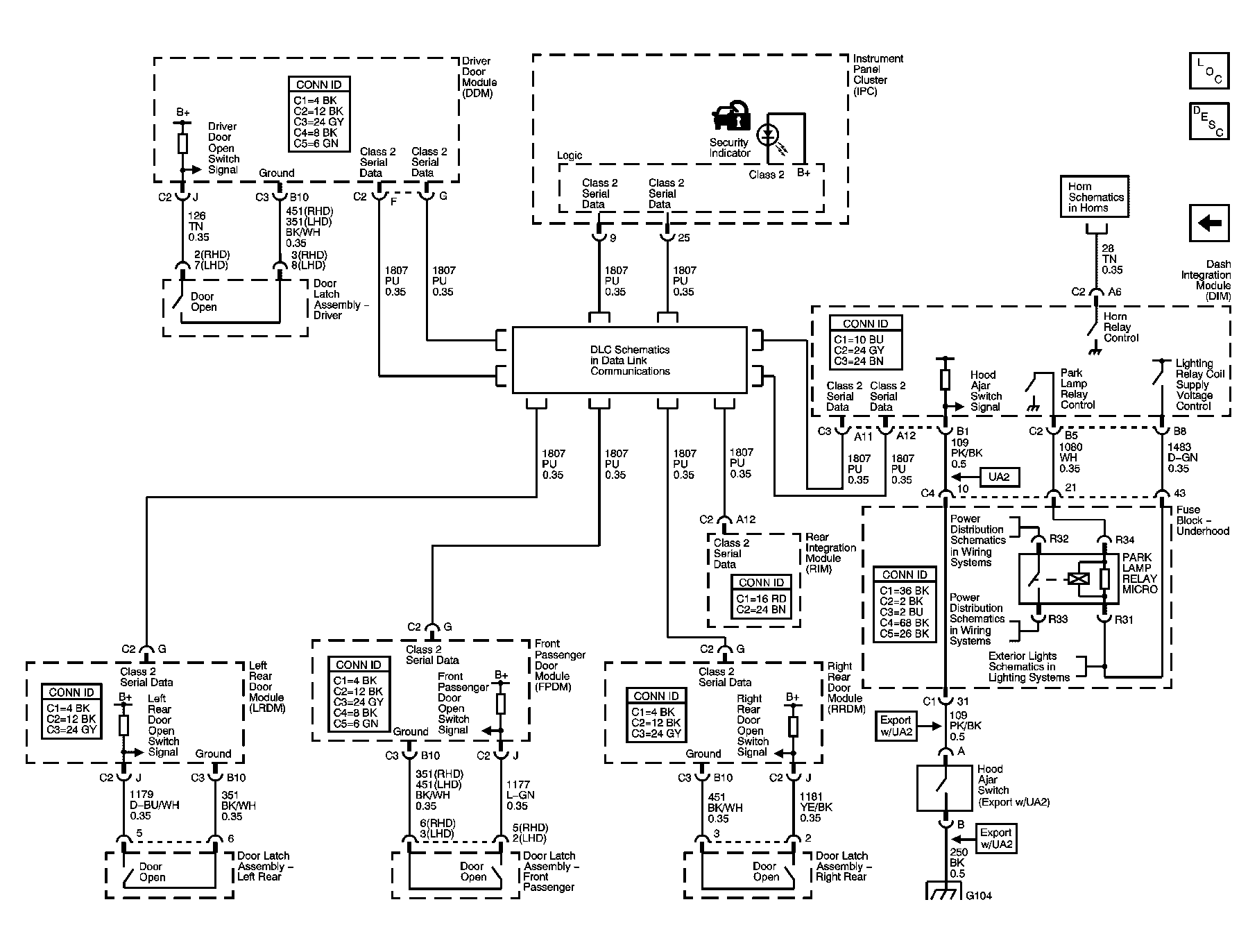

Fig 3: Door Modules, Hood Ajar Switch (Export W/ UA2), Serial Data And Indicator
GM1316887Courtesy of GENERAL MOTORS CORP.
