Interior Lights Schematics

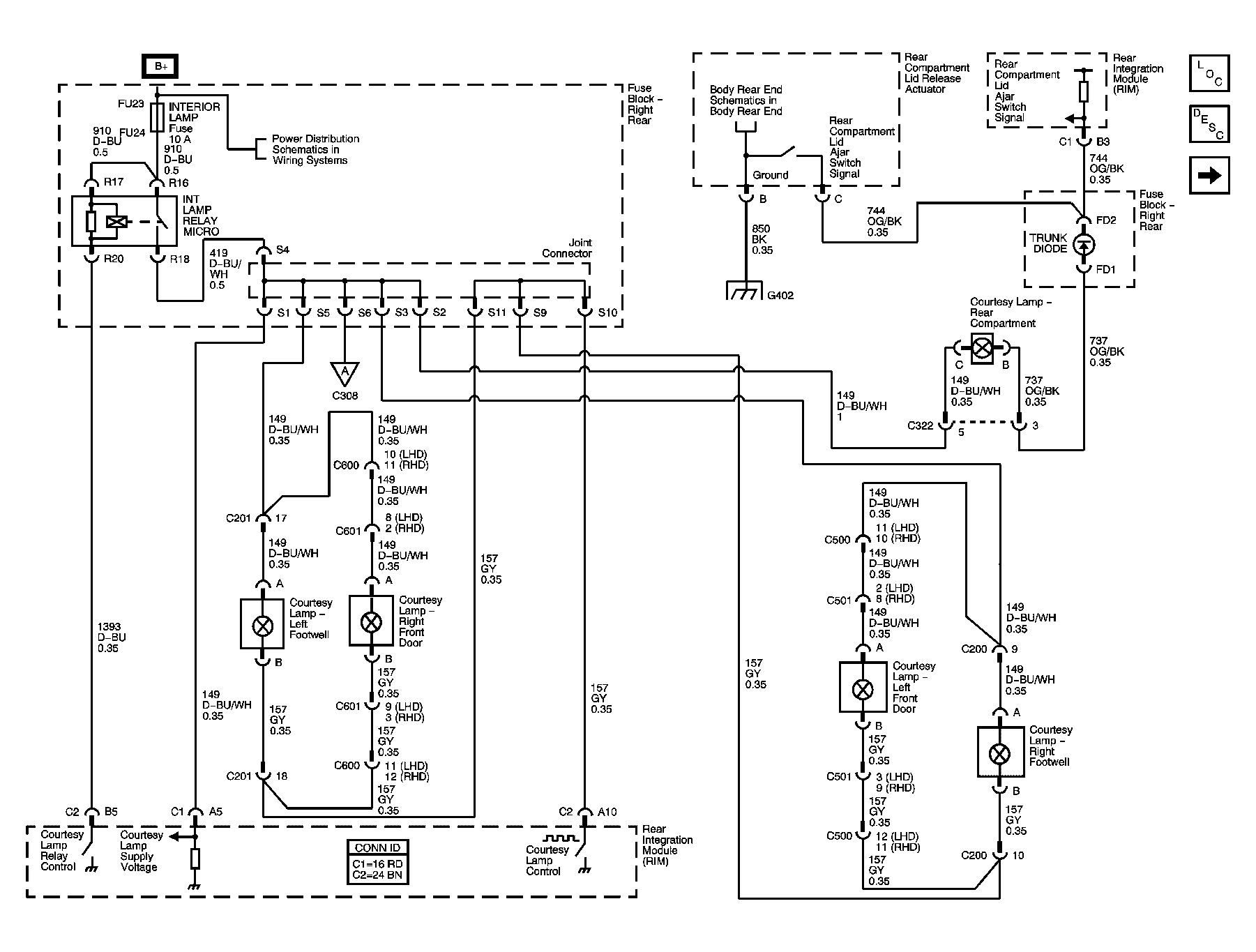

Fig 1: Courtesy Lamps

GM1329092

Courtesy of GENERAL MOTORS CORP.

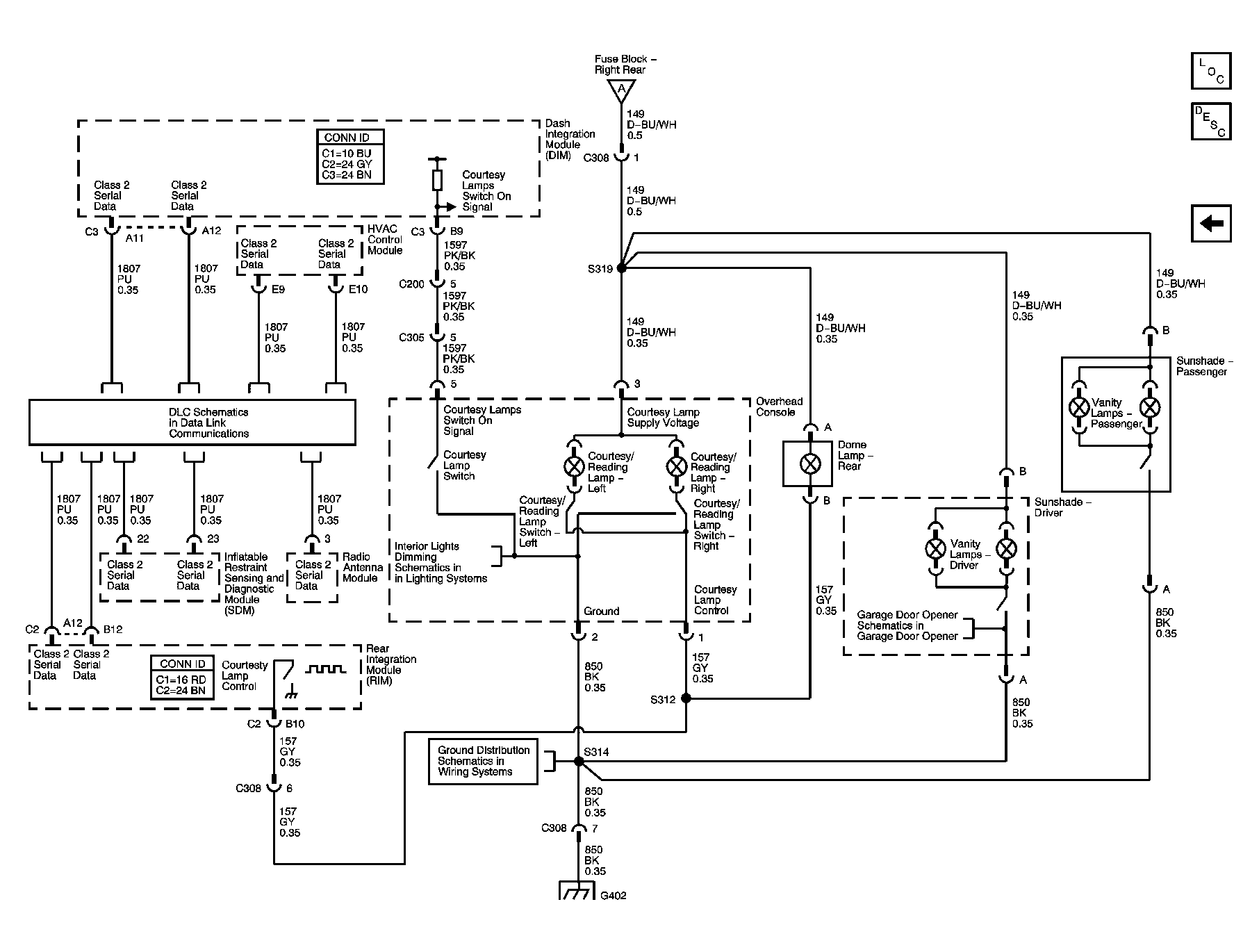

Fig 2: Overhead Courtesy, Dome and Vanity Lamps

GM1329093

Courtesy of GENERAL MOTORS CORP.
