Exterior Lights Schematics

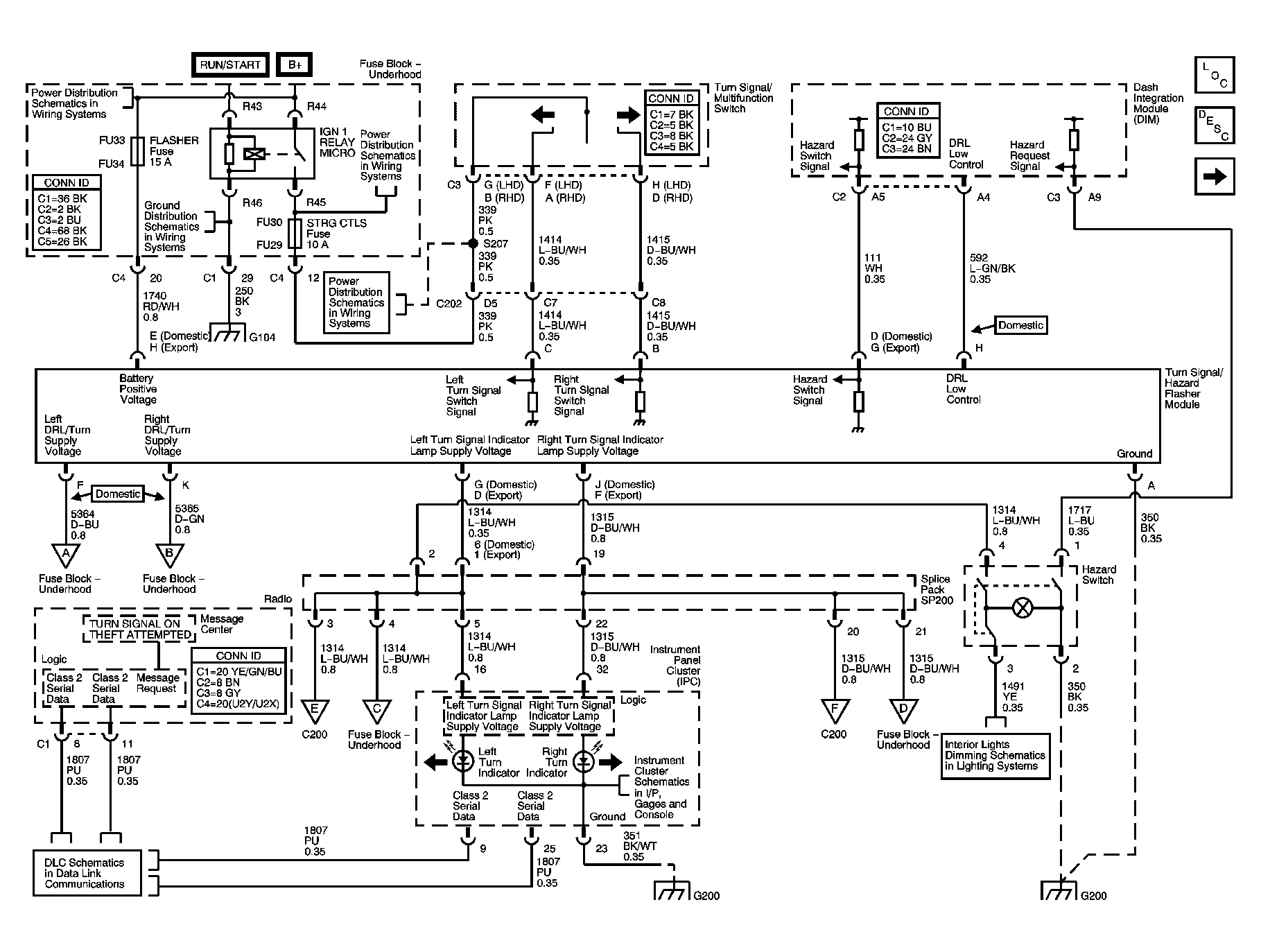

Fig 1: Turn Signal/Hazard Flasher Module

Courtesy of GENERAL MOTORS CORP.

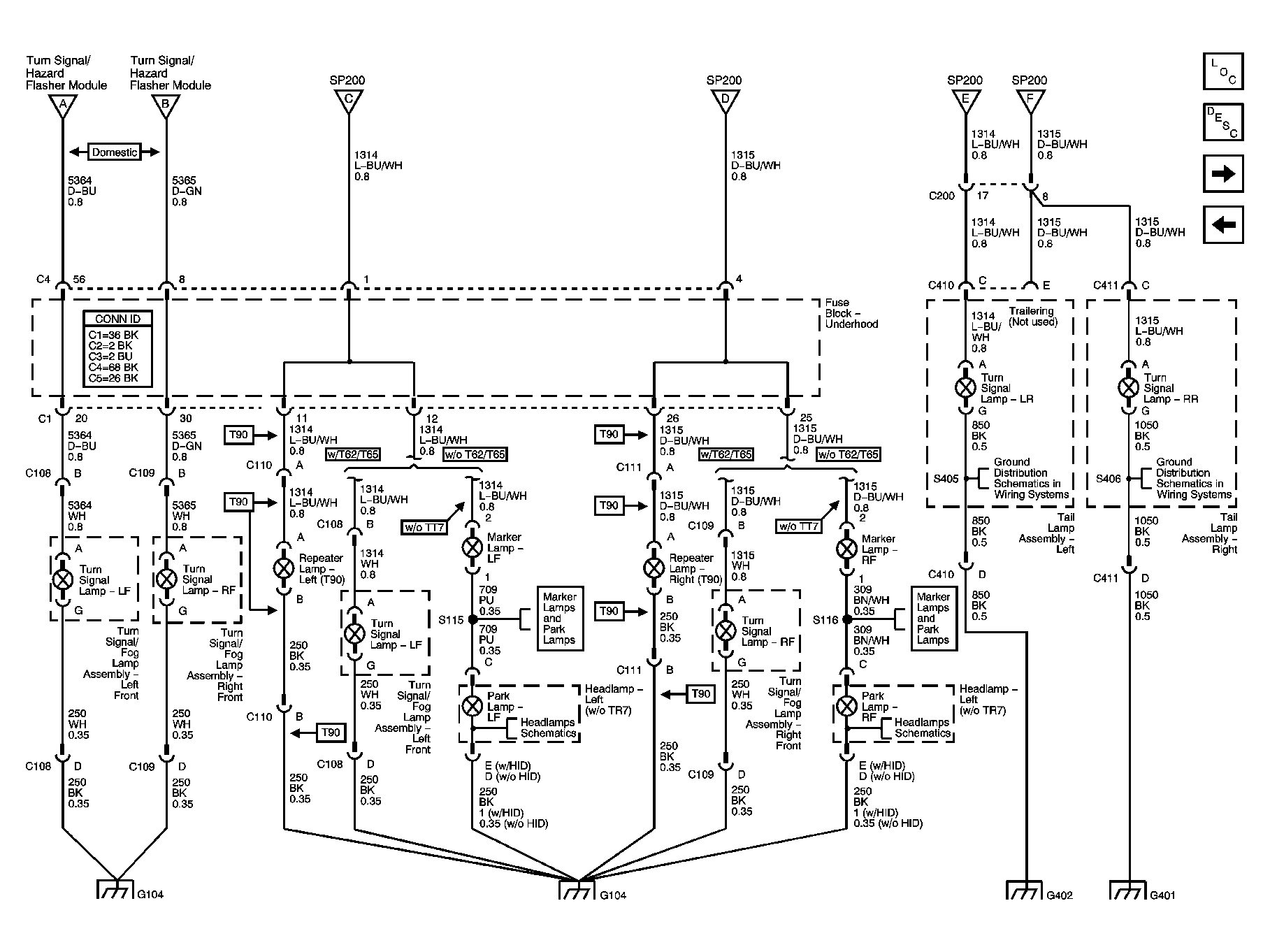

Fig 2: Turn Signal Lamps (Domestic and Export) and Repeater Lamps (Export w/T90)

Courtesy of GENERAL MOTORS CORP.

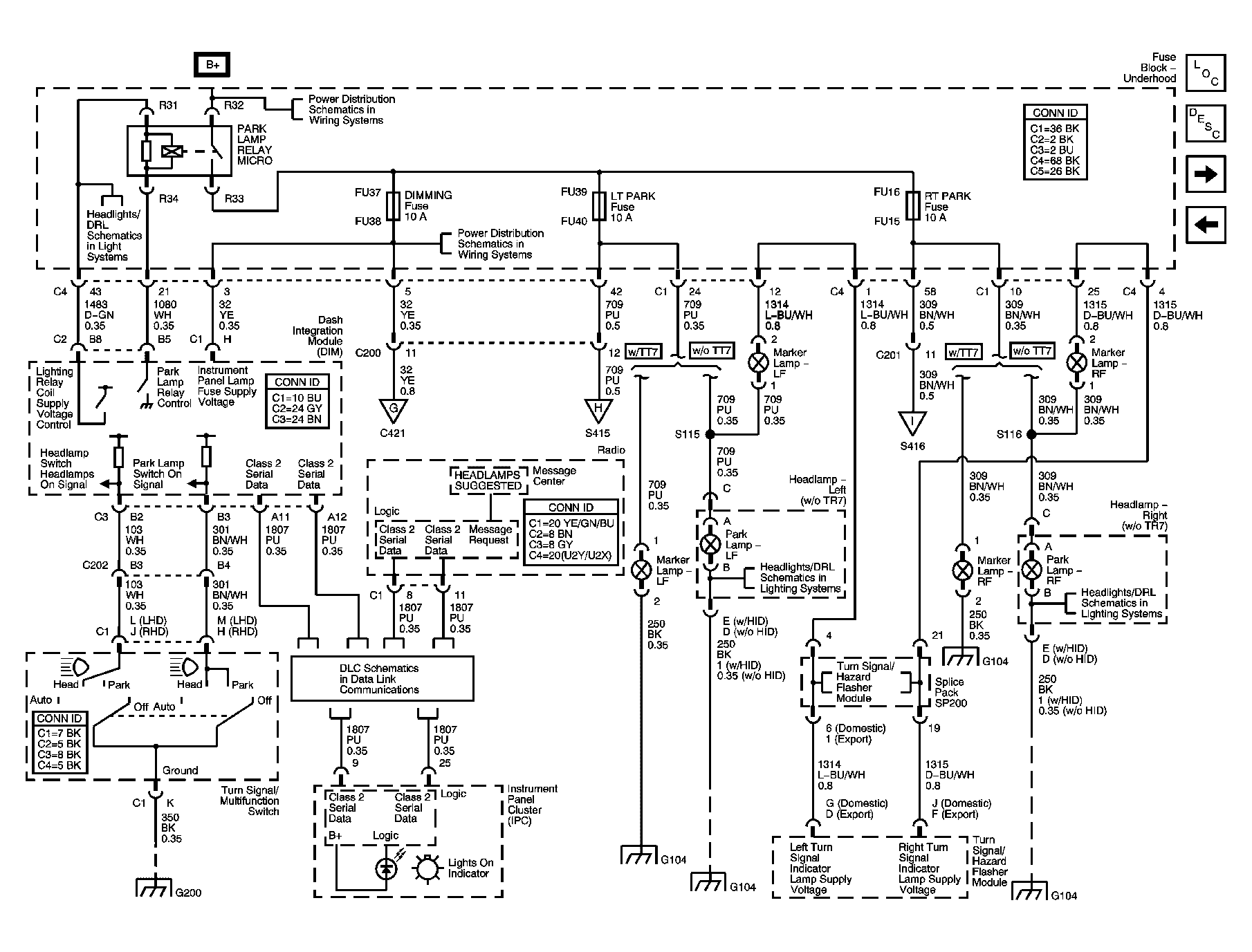

Fig 3: Front Marker Lamps (w/TT7) and Front Park Lamps (w/o TT7)

Courtesy of GENERAL MOTORS CORP.

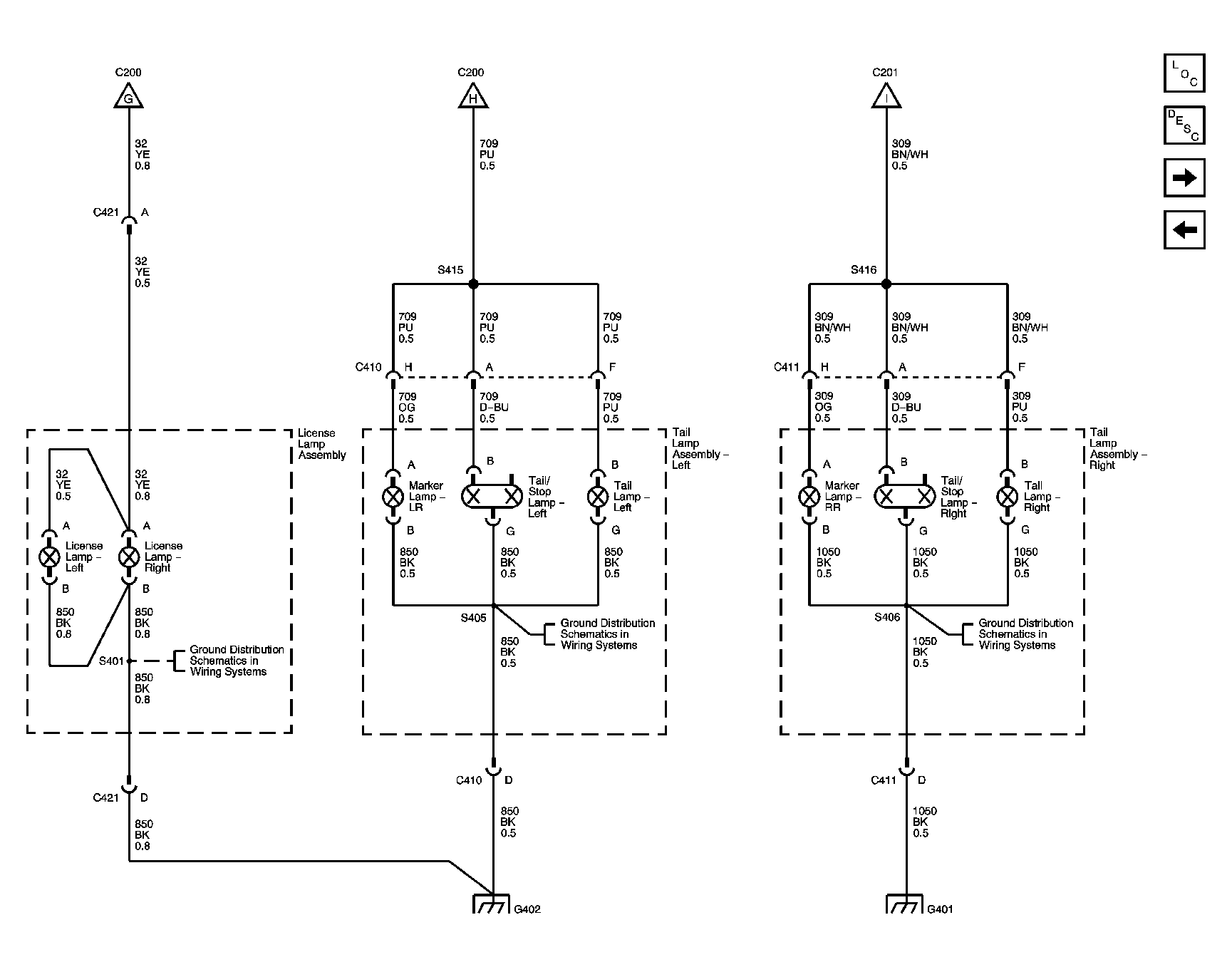

Fig 4: License Lamps (Domestic and Export, Rear Marker Lamps (Domestic) and Tail Lamps (Domestic)

Courtesy of GENERAL MOTORS CORP.

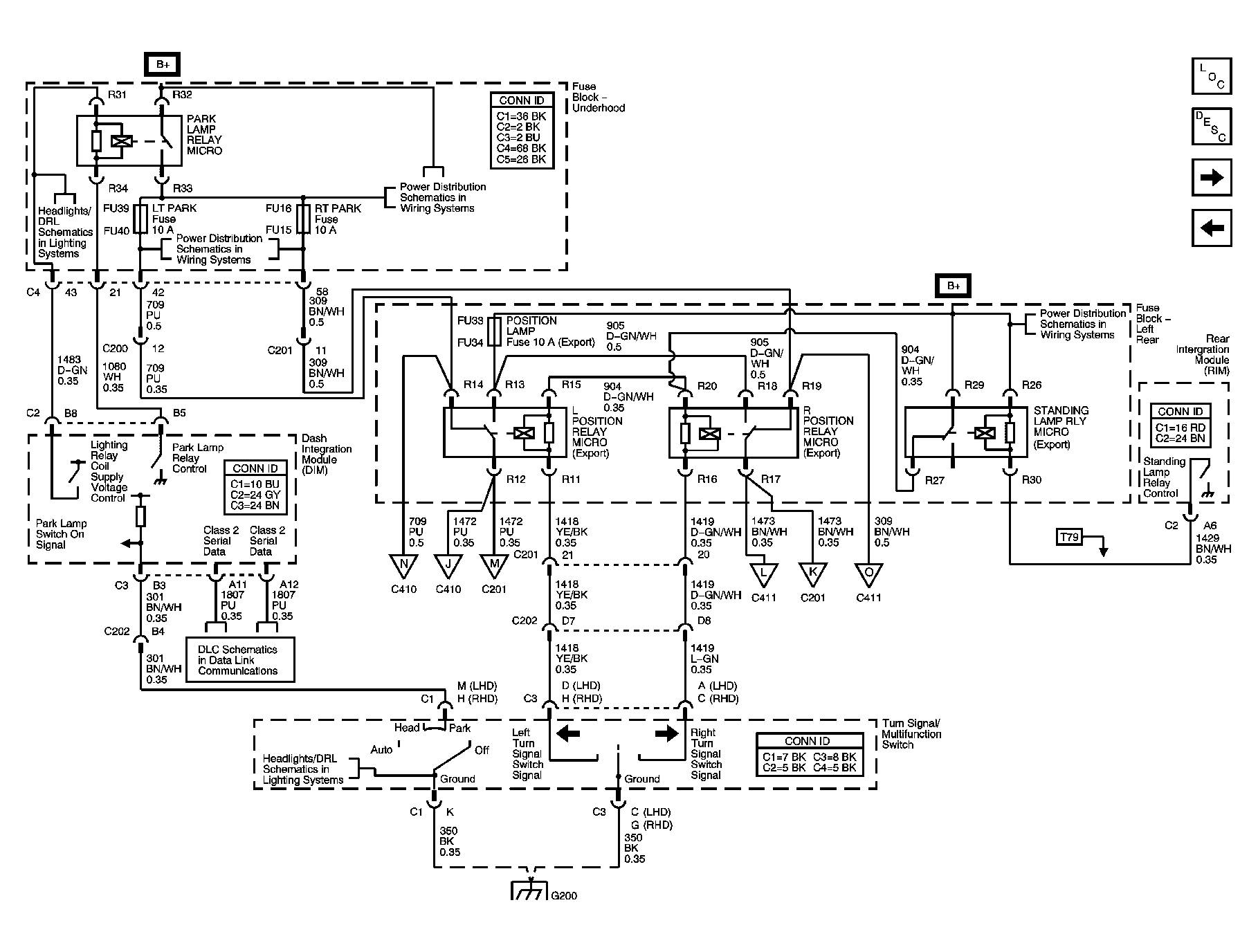

Fig 5: Position Lamp Controls (Export w/T79)

Courtesy of GENERAL MOTORS CORP.

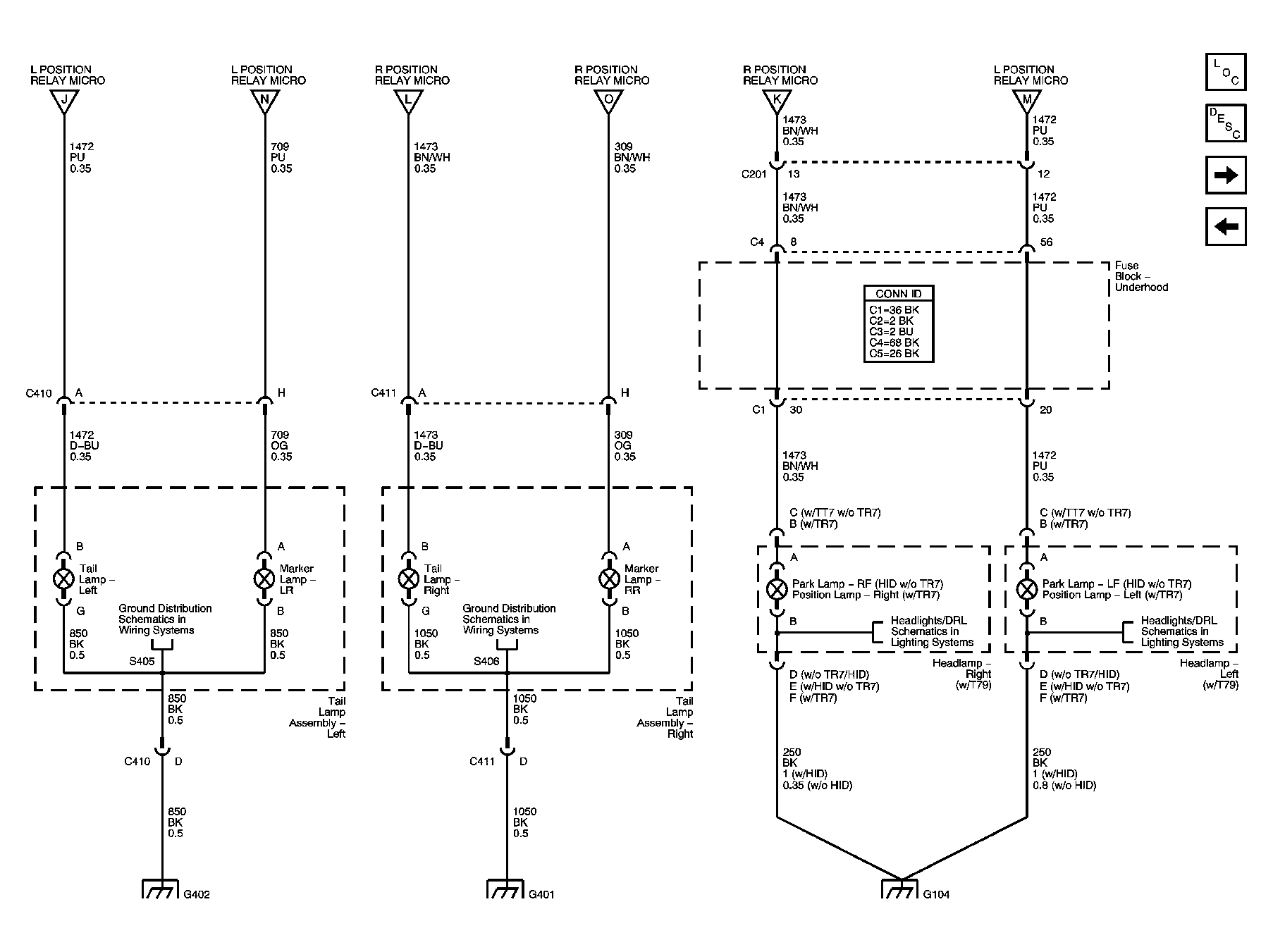

Fig 6: Position Lamps, Park Lamps, and Tail Lamps (Export w/T79)

Courtesy of GENERAL MOTORS CORP.

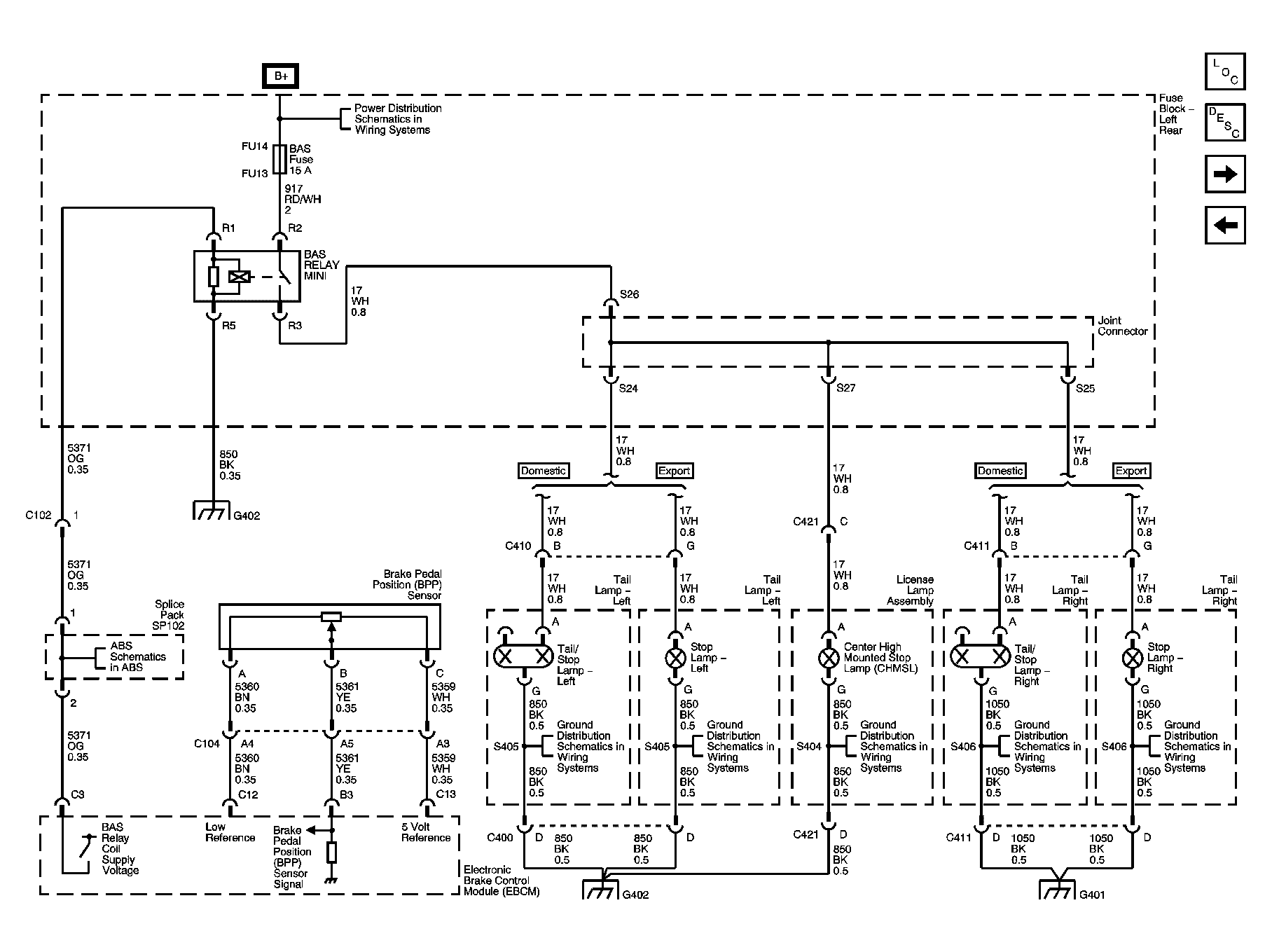

Fig 7: Stop Lamps, BPP Sensor and BAS Fuse/Relay (Domestic and Export)

Courtesy of GENERAL MOTORS CORP.

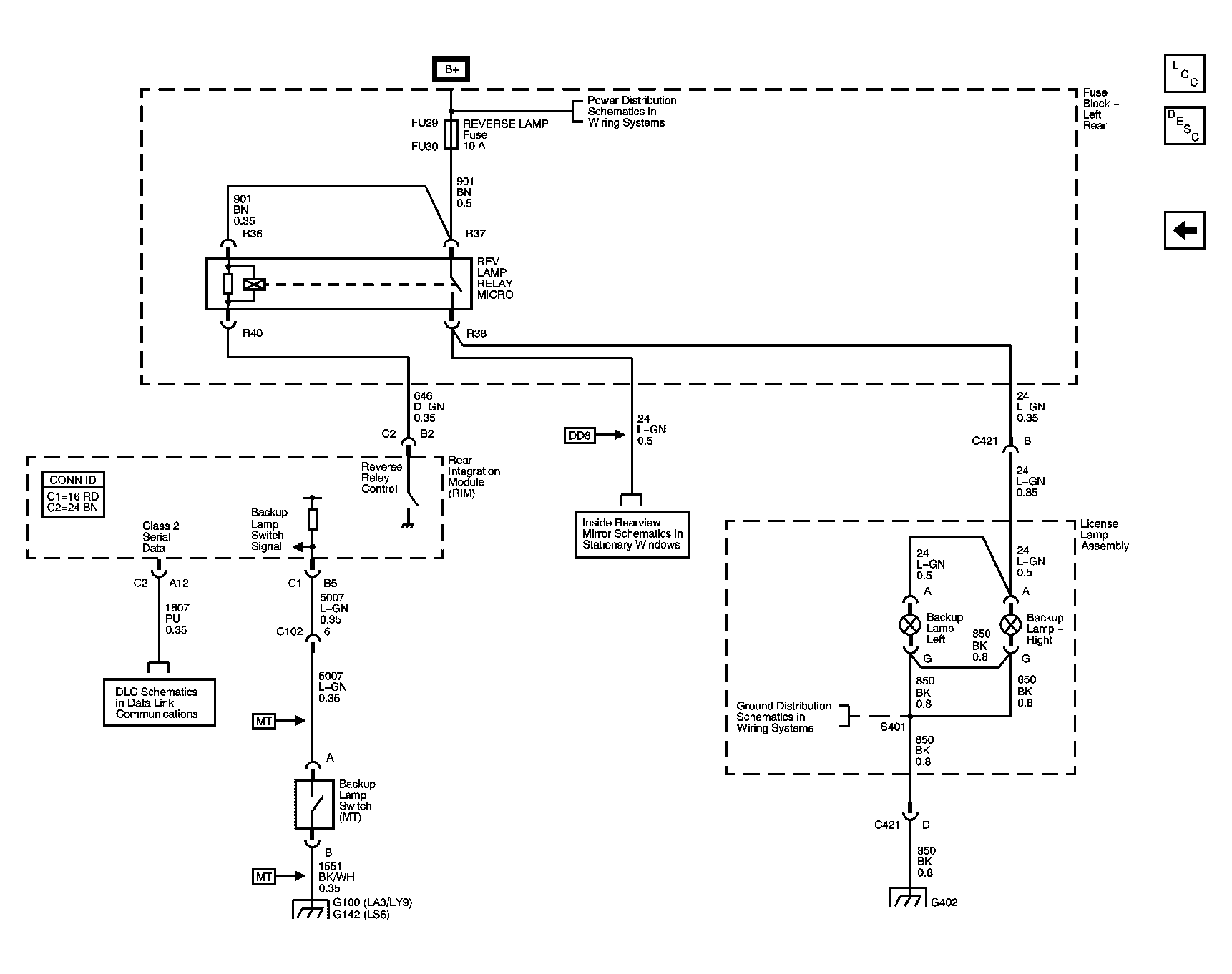

Fig 8: Backup Lamps

Courtesy of GENERAL MOTORS CORP.
