Radio/Audio System Schematics

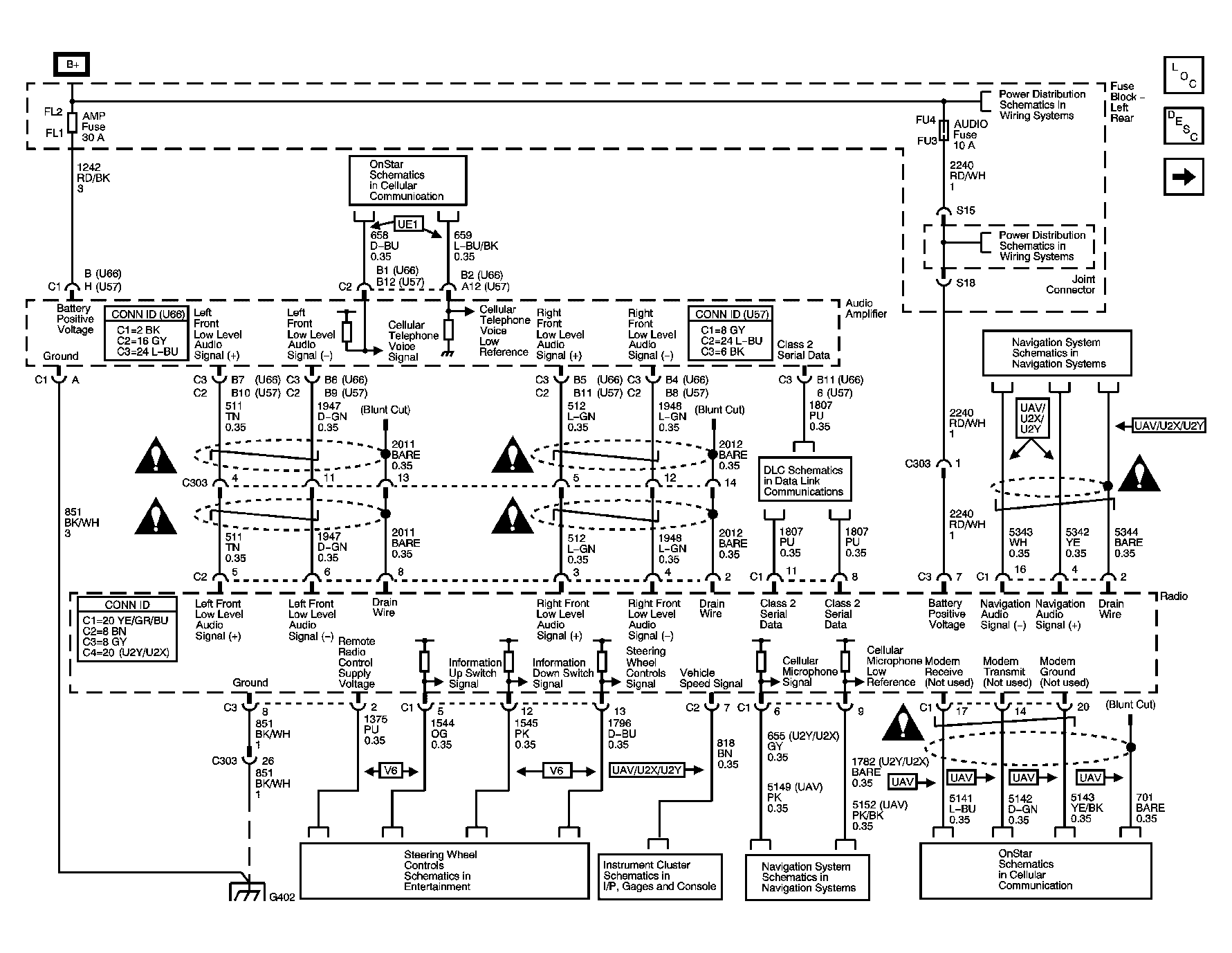

Fig 1: Power, Ground, Serial Data and Audio Signal Communication

Courtesy of GENERAL MOTORS CORP.

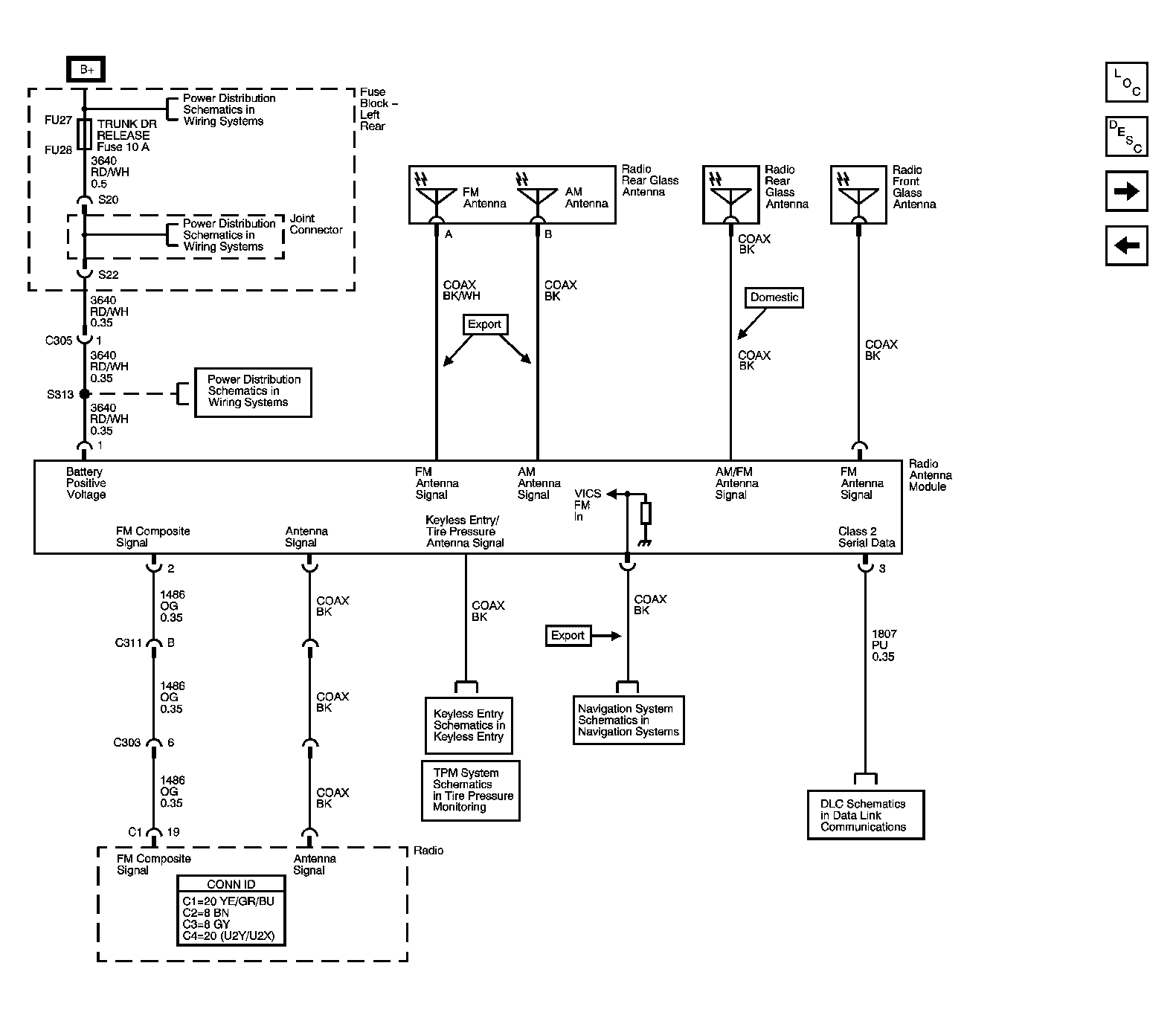

Fig 2: Radio Antenna Module and Antennas

Courtesy of GENERAL MOTORS CORP.

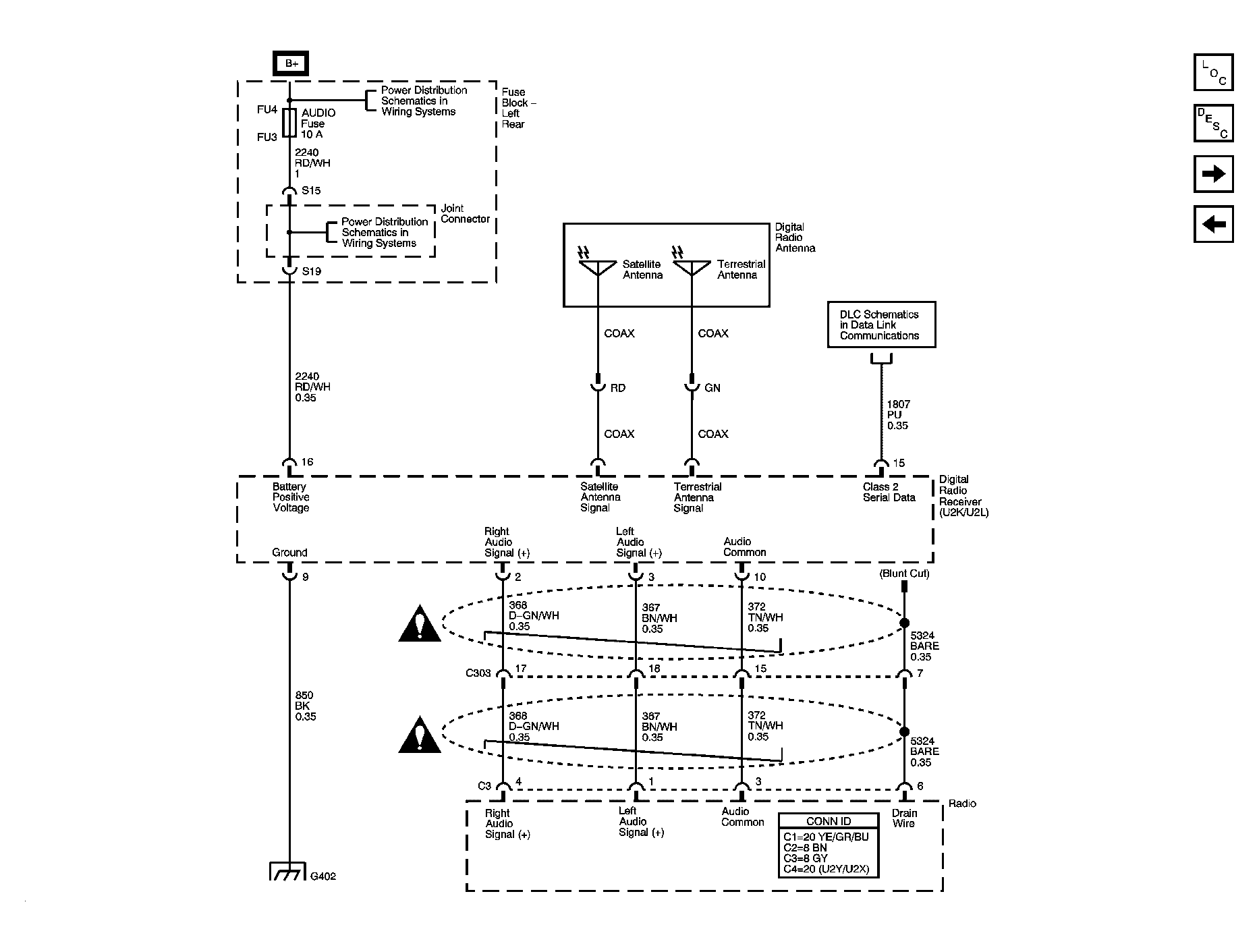

Fig 3: Digital Radio Receiver (U2Y/U2K/U2L)

Courtesy of GENERAL MOTORS CORP.

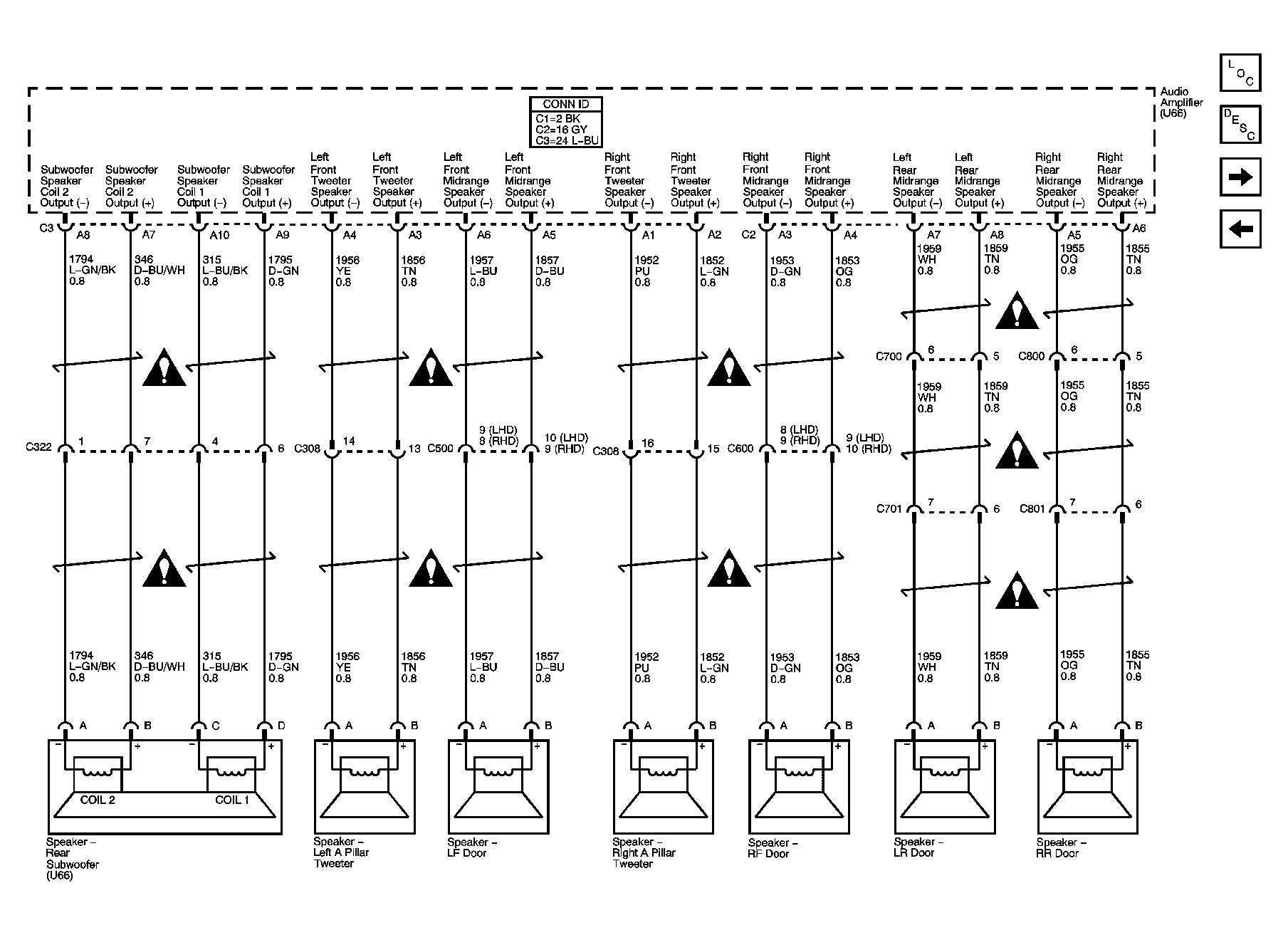

Fig 4: Speakers (U66)

Courtesy of GENERAL MOTORS CORP.

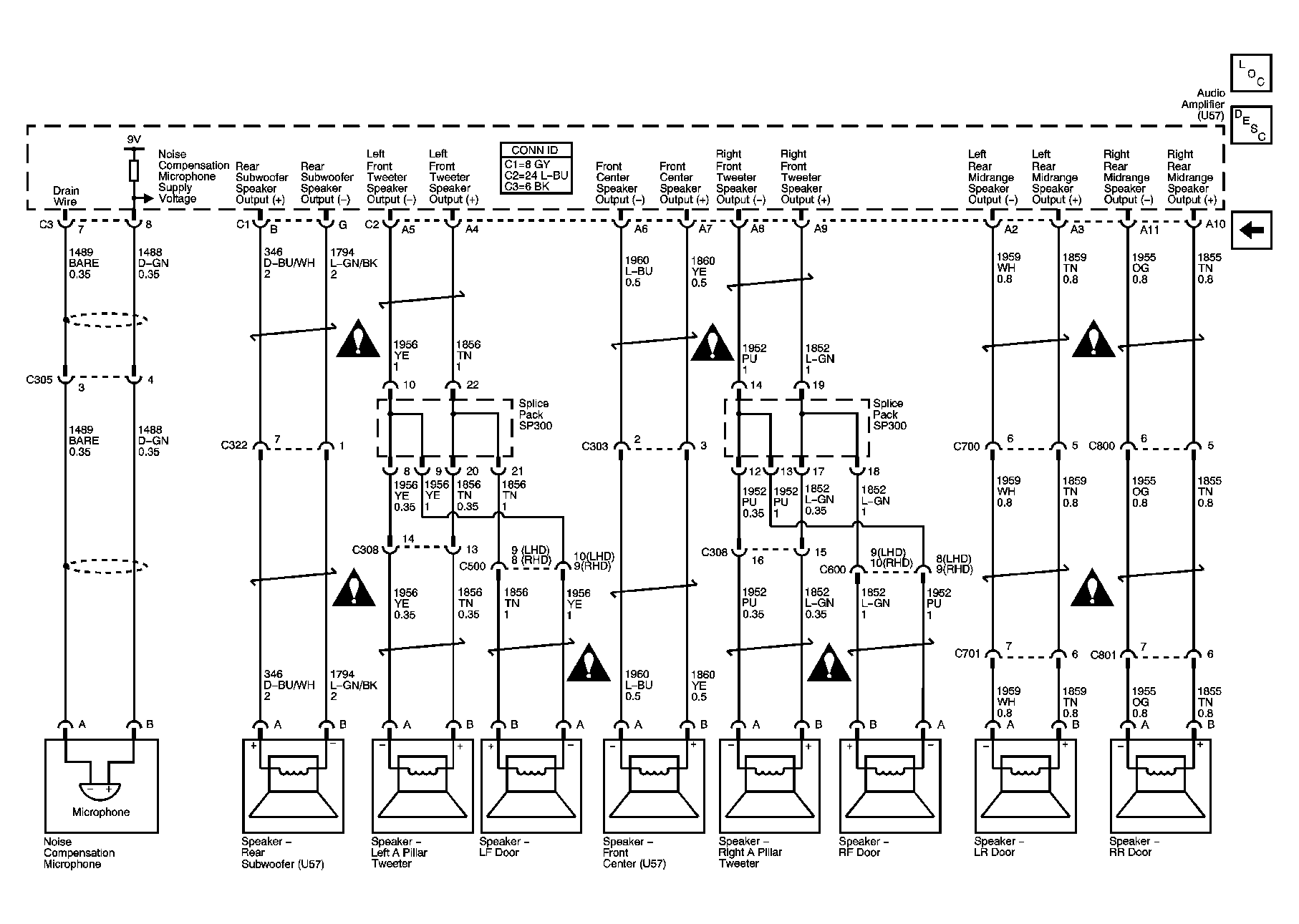

Fig 5: Speakers (U57)

Courtesy of GENERAL MOTORS CORP.
