Installation Procedure

    Fig 1: Identifying Ashtray Latch Retaining Tabs
    GM1206038Courtesy of GENERAL MOTORS CORP.
  1. Install the ashtray latch (1) to the ashtray assembly.
  2. Ensure that the ashtray door functions properly.

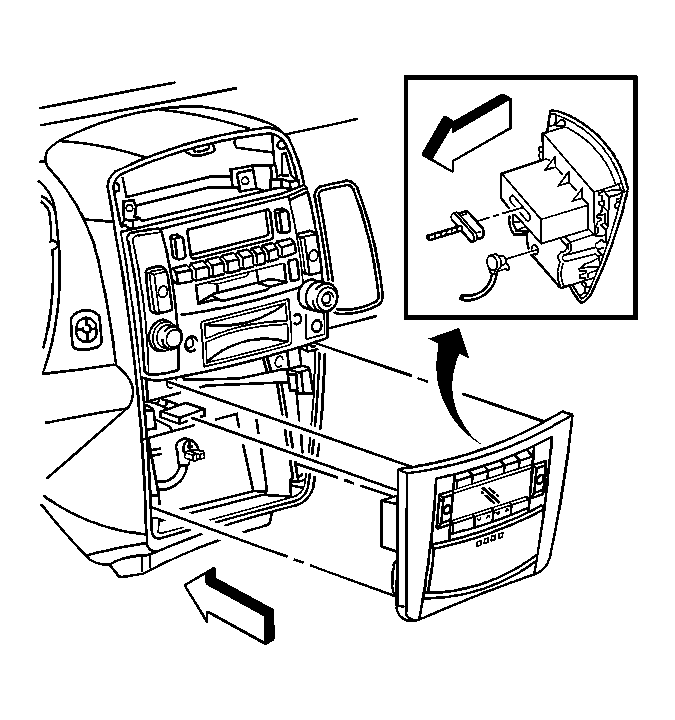

    3. Fig 2: Identifying Ashtray Assembly Electrical Connectors
    GM700907Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connectors.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the ashtray assembly. Secure with the ashtray screw.

    Tighten:  Tighten the screw to 2 N.m (17 lb in).
