Instrument Cluster Wiring Schematics

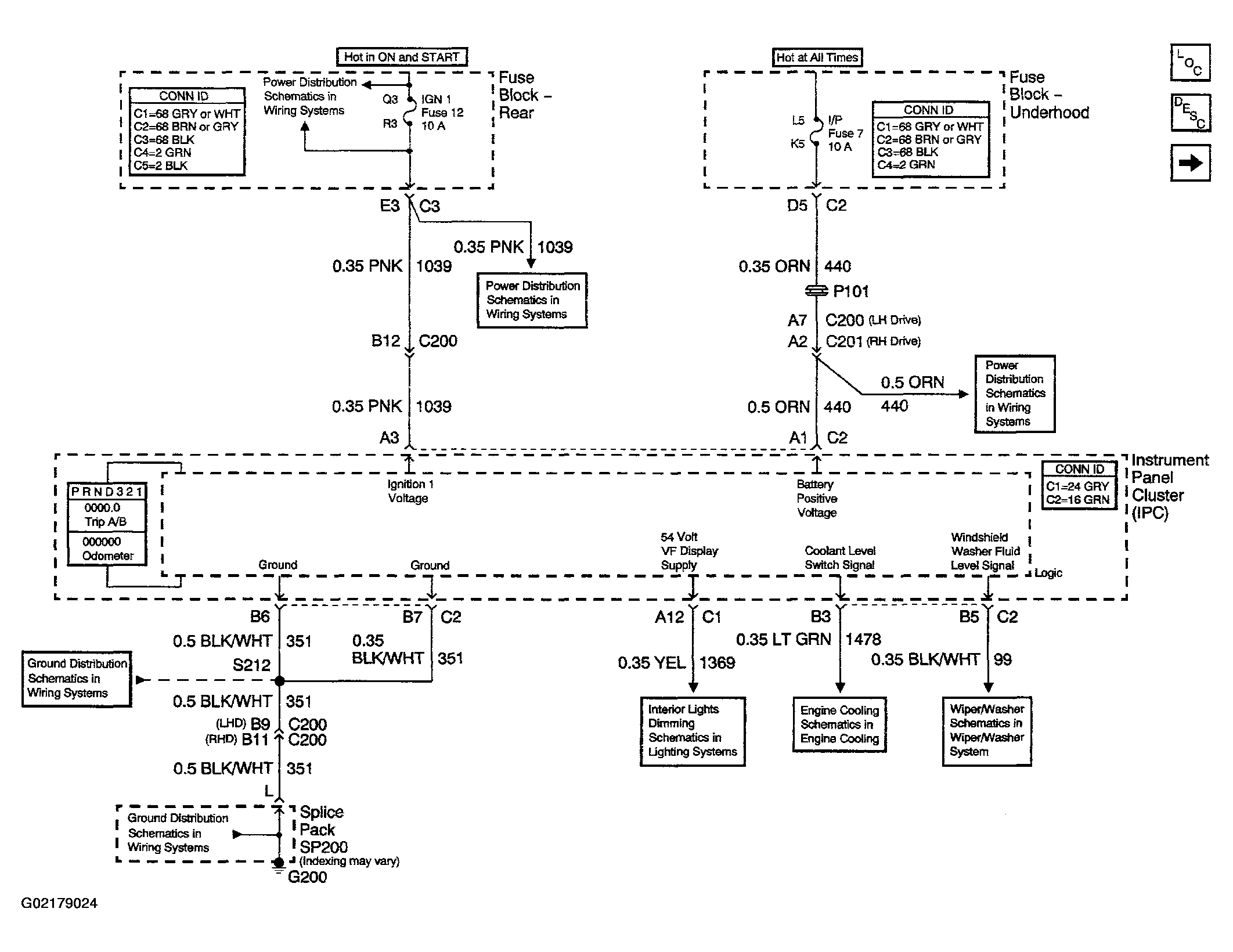

Fig 1: Instrument Cluster Schematic (Power, Ground & Class 2)

Courtesy of GENERAL MOTORS CORP.

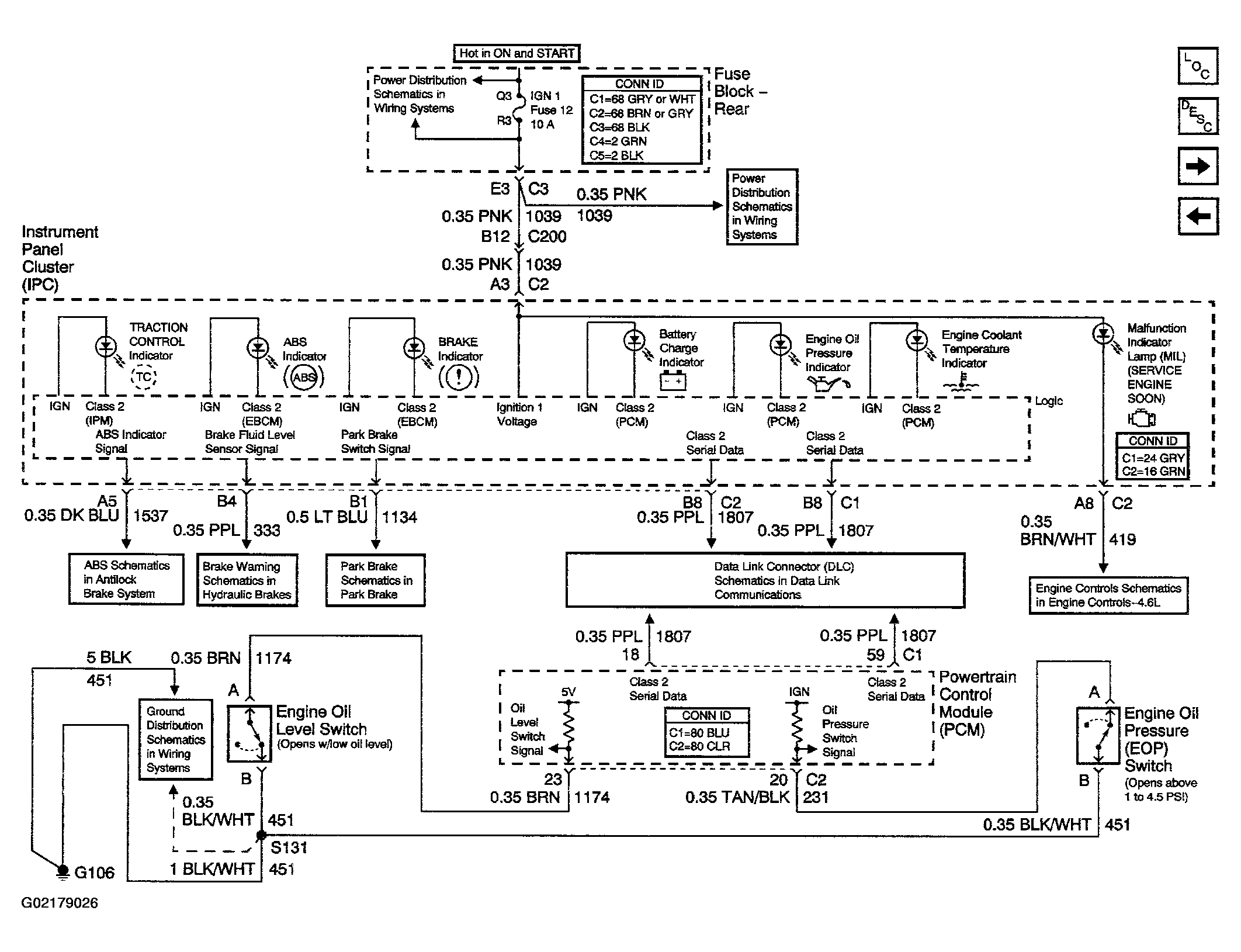

Fig 2: Instrument Cluster Schematic (PCM Signals)

Courtesy of GENERAL MOTORS CORP.

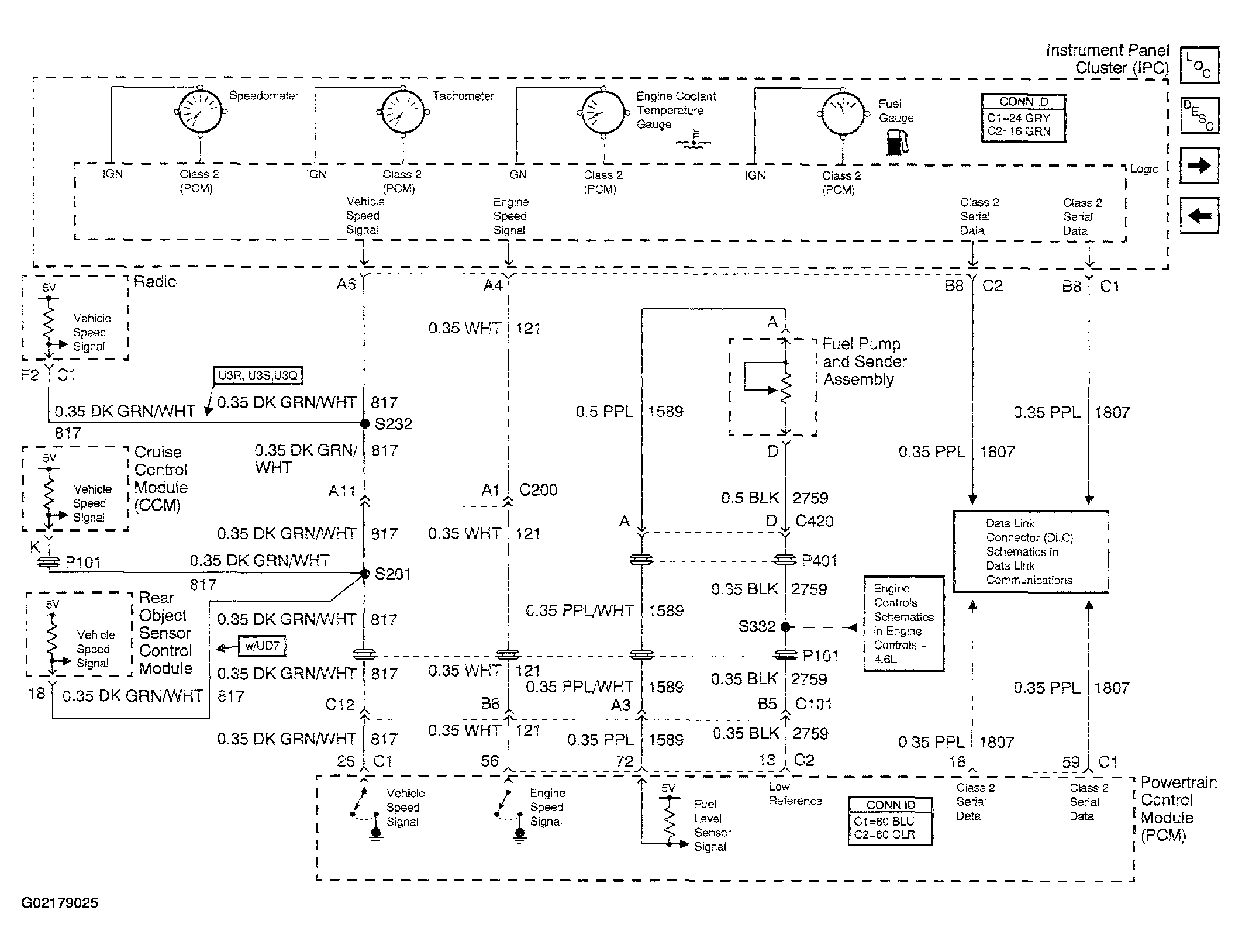

Fig 3: Instrument Cluster Schematic (PCM & ICM Signals)

Courtesy of GENERAL MOTORS CORP.

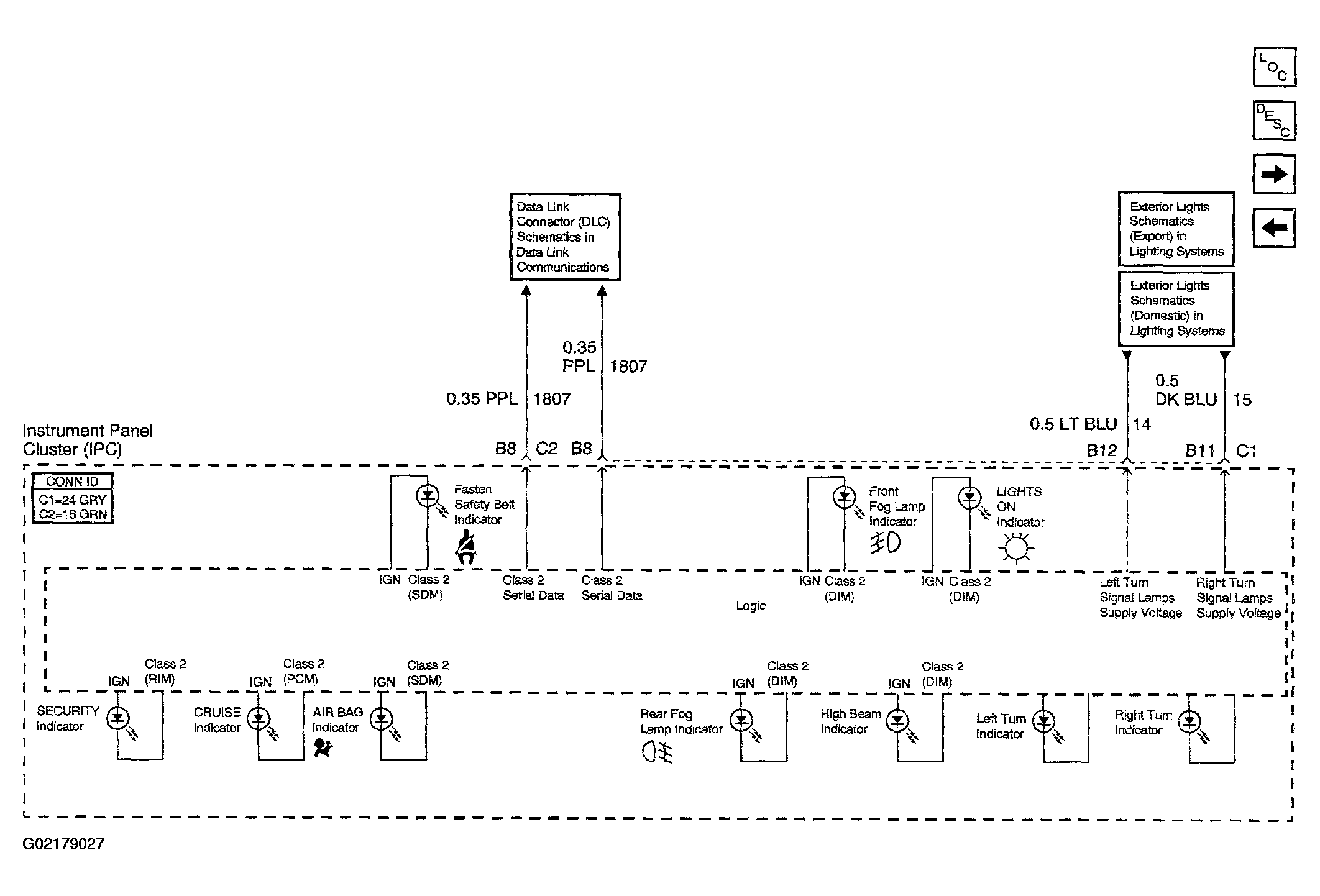

Fig 4: Instrument Cluster Schematics (DIM, RIM, PCM & SDM Signals)

Courtesy of GENERAL MOTORS CORP.

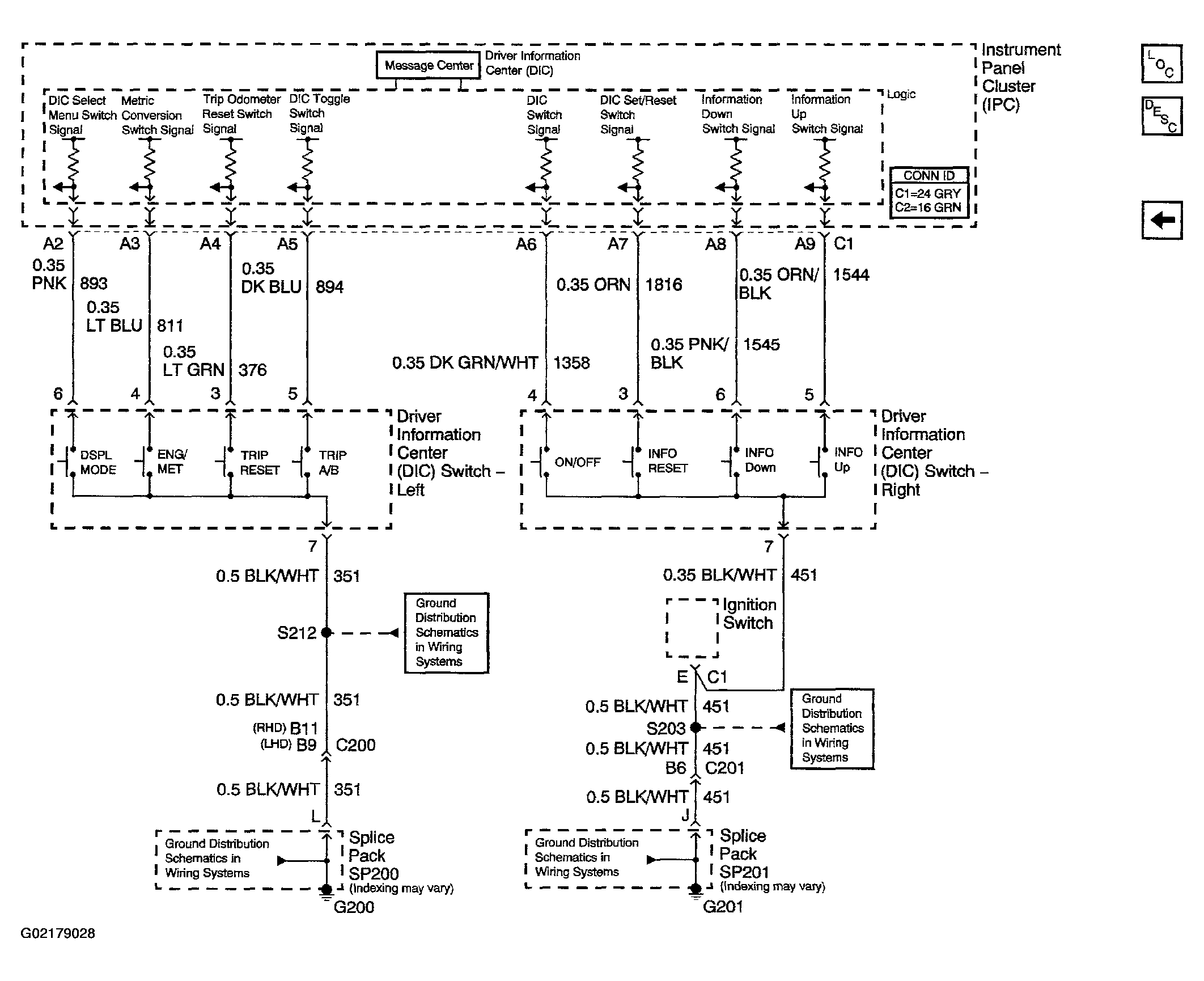

Fig 5: Instrument Cluster Schematic (Driver Information Center)

Courtesy of GENERAL MOTORS CORP.
