Removal Procedure

CAUTION: Refer to SIR CAUTION in Cautions and Notices.
  1. Disable the SIR system. Refer to ZONE 3 and ZONE 5 in Air Bag Restraint Systems.
  2. Remove the instrument panel (I/P) upper trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER   .
  3. Remove the I/P cluster trim panel. TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER   .
  4. Remove the screw near the I/P cluster at the I/P retainer.

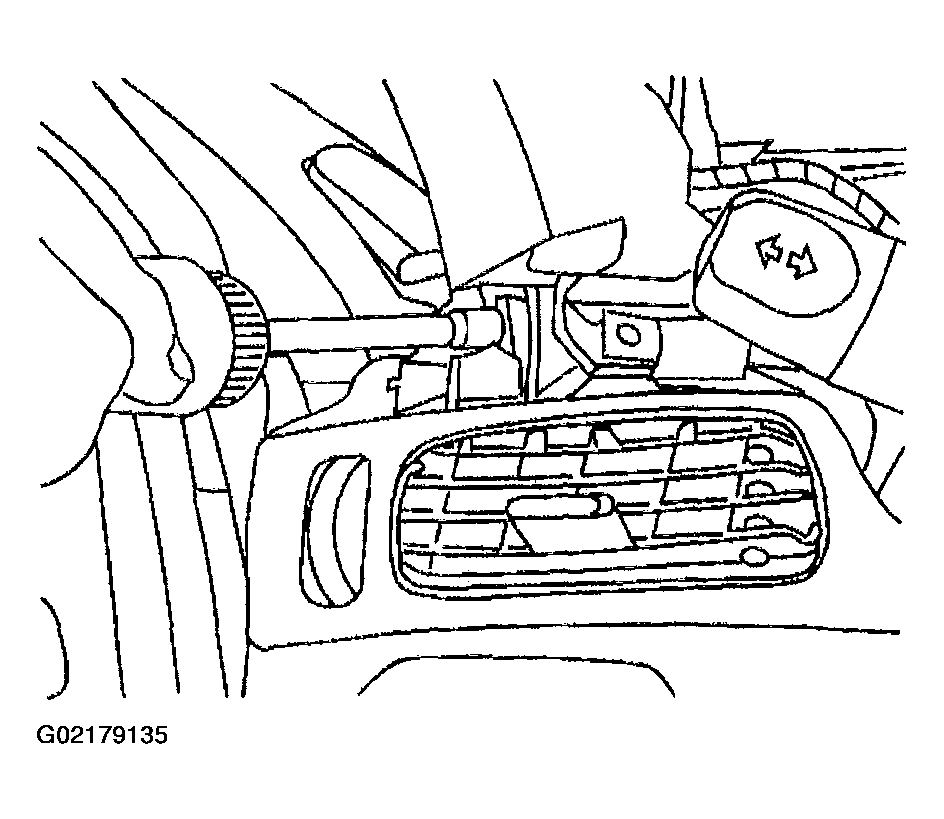

    Fig 1: Removing Screw Near I/P Cluster At I/P Retainer (LHD)
    G02179135Courtesy of GENERAL MOTORS CORP.
  5. Lift the outboard end of the trim plate in order to disengage the locating tab, then pull the trim plate rearward.
