Installation Procedure

  1. Align the knee bolster trim panel (1) retainers with the lower IP.
  2. Push the panel upward firmly in order to snap the bolster into the retainer bracket.
  3. Install the knee bolster fasteners (2).

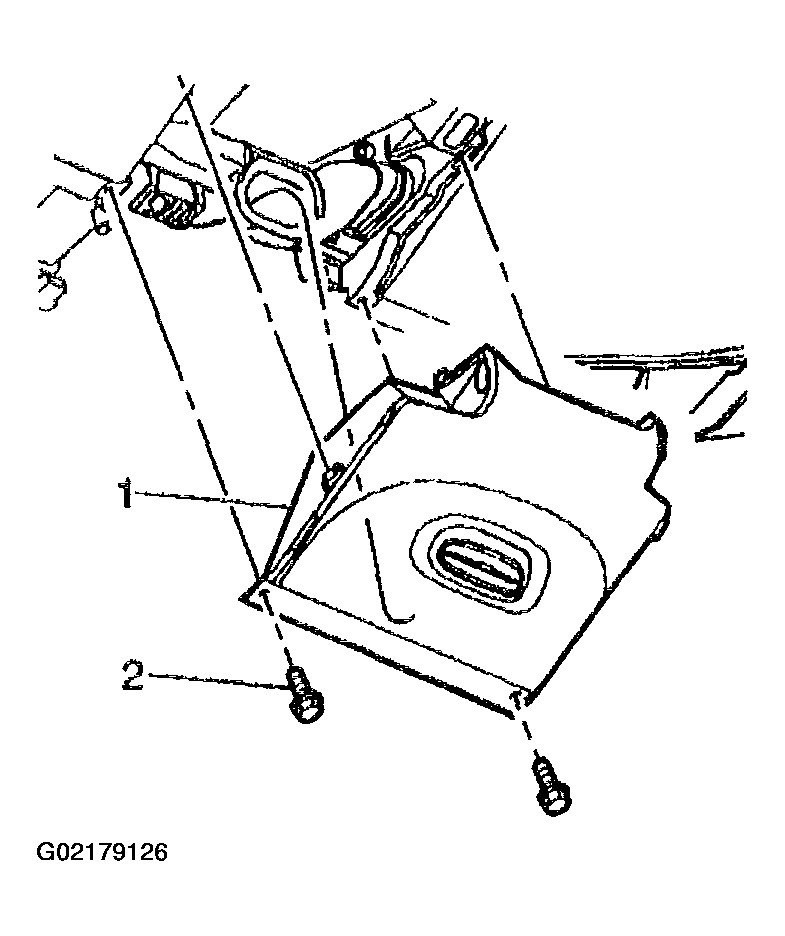

    Fig 1: Installing Knee Bolster Trim Panel & Fasteners
    G02179126Courtesy of GENERAL MOTORS CORP.
  4. Install the driver's side sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT (LHD)   or CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT (RHD)   or CLOSEOUT/INSULATOR PANEL REPLACEMENT RIGHT (LHD)   or  CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT (RHD)   .
