Installation Procedure

When installing a new lock cylinder, code the lock cylinder to the vehicle key.
Insert the key into the lock cylinder assembly (2).
Insert the lock cylinder into the IP storage compartment door handle (1).
Align the lock cylinder to the latch handle in the same position observed during removal.
Push the lock cylinder (2) toward the IP compartment latch handle in order to fully seat the lock cylinder to the IP storage compartment latch handle (1).
Turn the key 1/4 turn counterclockwise in order to secure the lock cylinder (2) to the IP storage compartment latch handle (1).
Turn the key an additional 1/4 turn counterclockwise and remove the key from the lock cylinder.

Fig 1: Inserting Key Into Lock Cylinder Assembly (Compartment Door)
Courtesy of GENERAL MOTORS CORP.

IMPORTANT: The lock cylinder should only turn a 1/4 turn and should be securely retained to the IP compartment latch handle when installed.
Inspect the lock cylinder for proper operation.
Engage the handle/latch actuator cable (1) to the IP storage compartment latch.

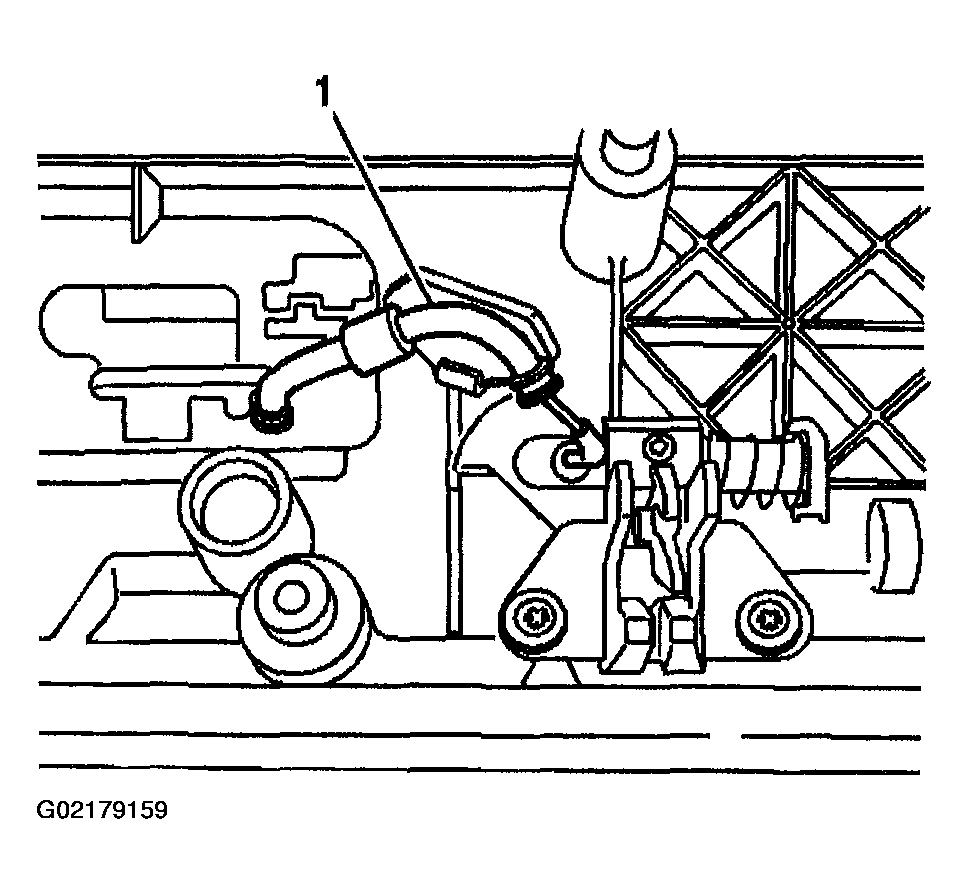

Fig 2: Engaging Handle/Latch Actuator Cable (Compartment Door)
Courtesy of GENERAL MOTORS CORP.
Install the IP compartment latch handle (2) to the IP storage compartment door.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the IP compartment latch handle screws (1).
Tighten

Tighten the screws (1) fully driven, seated, but not stripped.

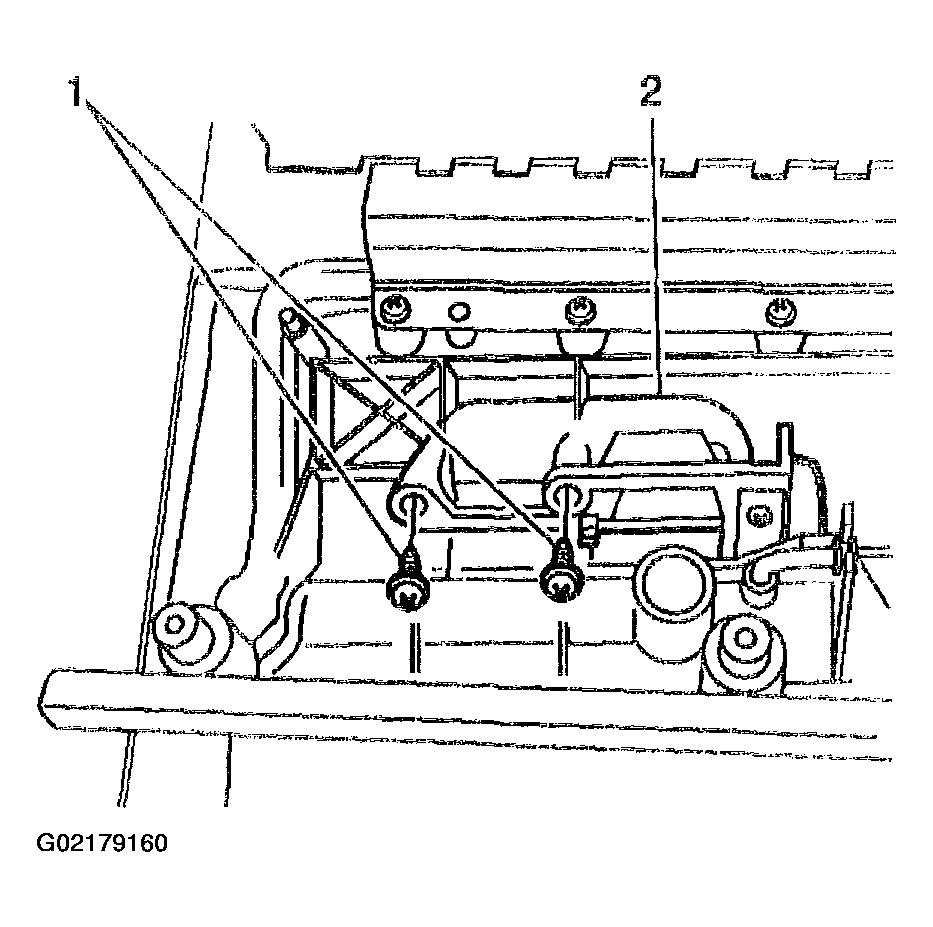

Fig 3: Installing IP Compartment Latch Handle Screws (Compartment Door)
Courtesy of GENERAL MOTORS CORP.
Install the IP storage compartment door trim plate (2).
Install the screws (1) to the IP storage compartment door trim panel (2).
Tighten

Tighten the screws (1) fully driven, seated, but not stripped.

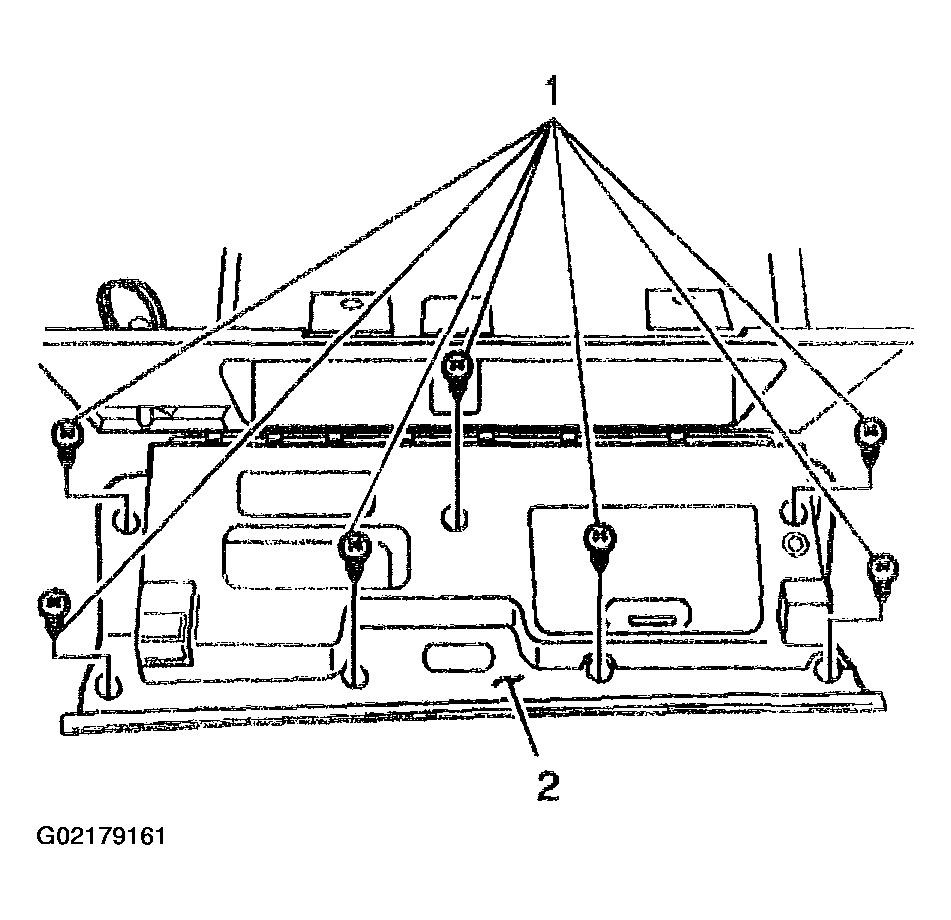

Fig 4: Installing IP Storage Compartment Door Trim Panel Screws (Compartment Door)
Courtesy of GENERAL MOTORS CORP.
Lift the IP storage compartment door in order to install the IP storage compartment door compensator.
Install the end of the IP compartment door compensator rod into the IP storage compartment door, and twist the compensator rod 1/4 turn in order to secure the IP compartment door compensator rod to the IP storage compartment door.

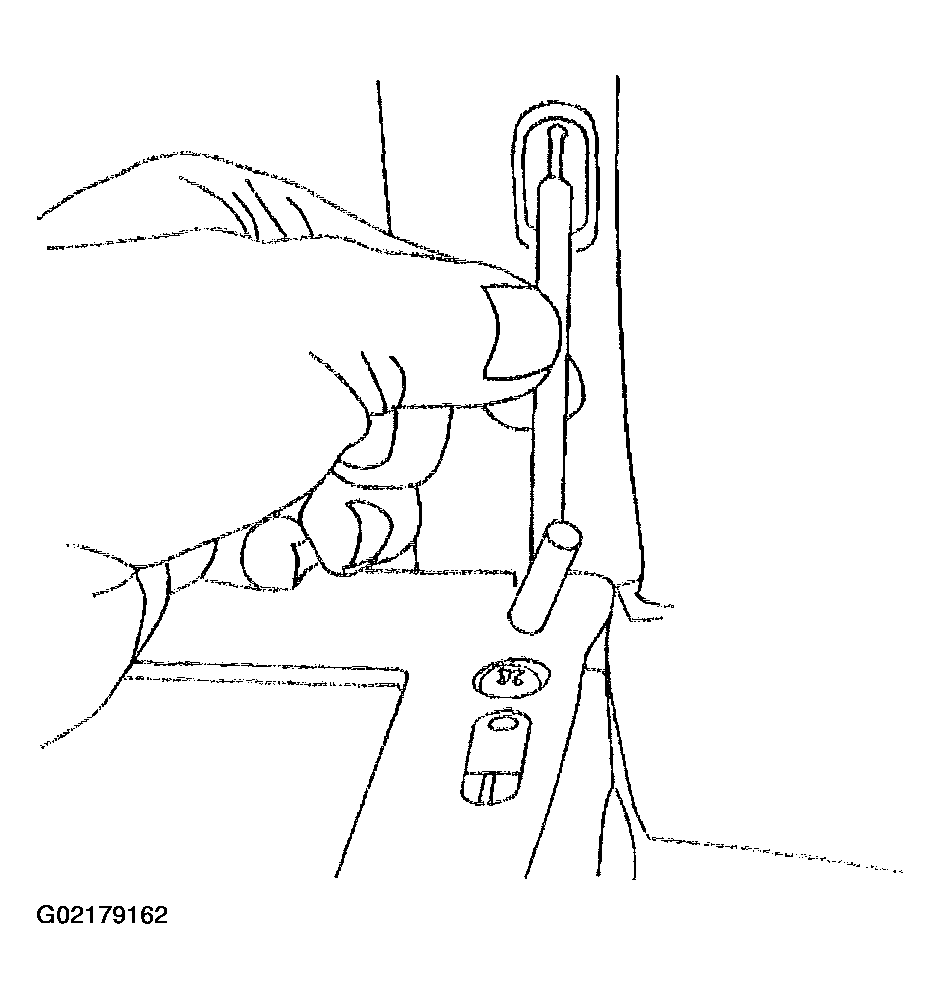

Fig 5: Installing Compensator Rod (Compartment Door)
Courtesy of GENERAL MOTORS CORP.
Close the IP storage compartment door.
Inspect the IP storage compartment/latch for proper operation.
