Removal Procedure

  1. Open the console compartment upper lid in order to access the console tray.

    The console tray insert should be visible.

  2. Remove the 4 screws (1) that retain the armrest inner trim panel (2) to the armrest.

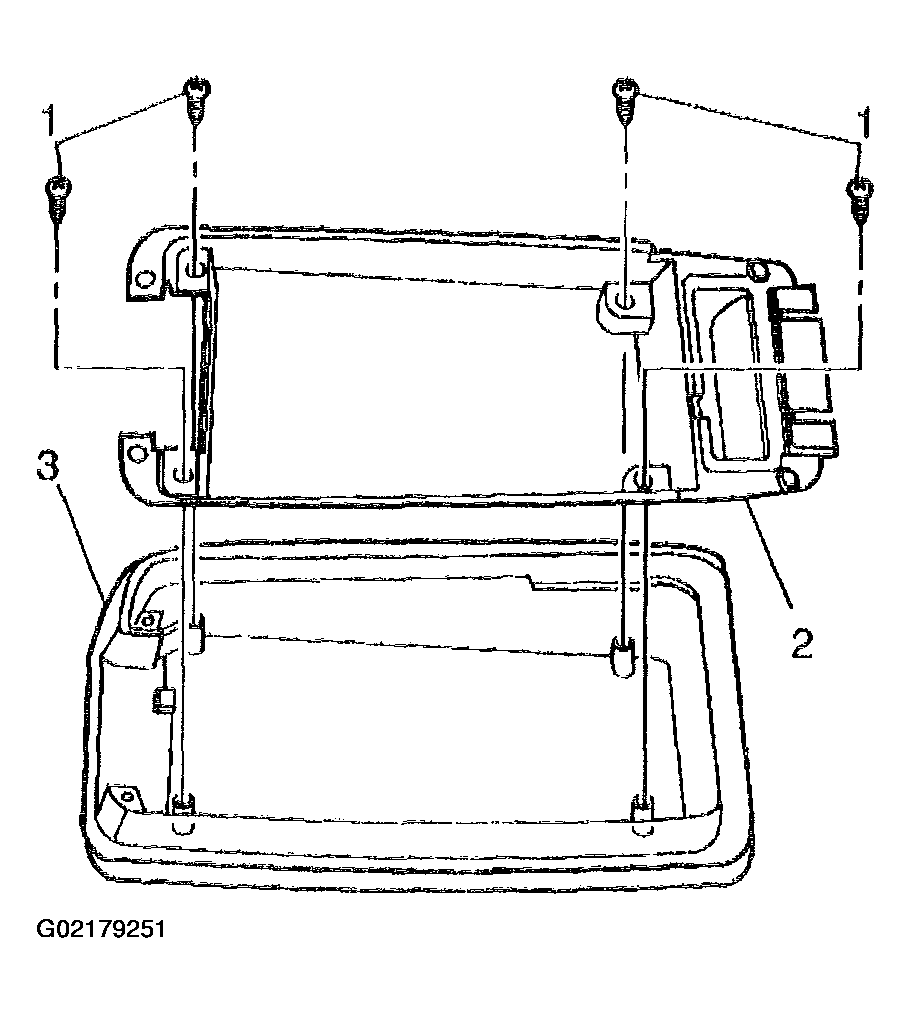

    Fig 1: Removing Armrest Inner Trim Panel & Screws (Upper)
    G02179251Courtesy of GENERAL MOTORS CORP.
  3. Remove the armrest inner trim panel (2).
  4. Remove the 2 screws that hold the console armrest latch to the console armrest.
  5. Remove the console armrest latch from the console armrest.
