Installation Procedure

  1. Install the console armrest latch to the console armrest.
  2. Install the screws that retain the console armrest latch to the console armrest.
  3. Tighten the armrest latch screws fully driven, seated, but not stripped.
  4. Install the armrest inner trim panel (2).
  5. Install the armrest inner trim panel screws (1).

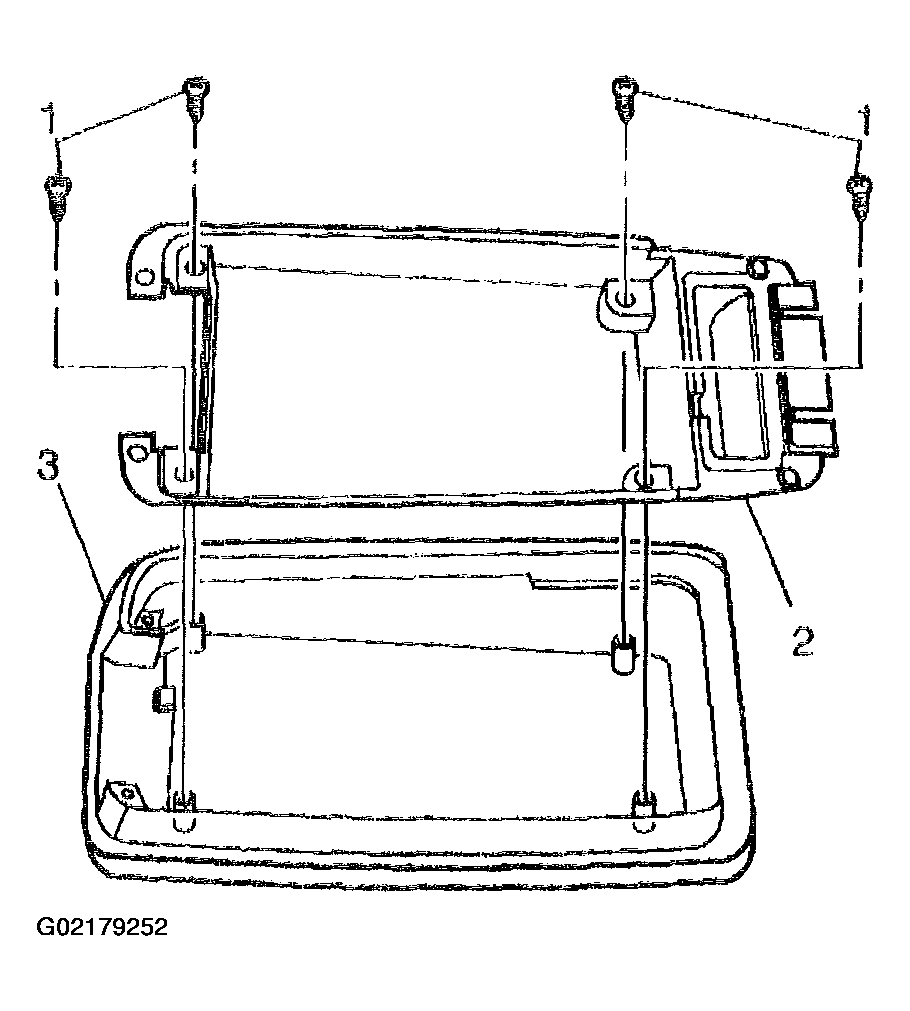

    Fig 1: Installing Armrest Inner Trim Panel & Screws (Upper)
    G02179252Courtesy of GENERAL MOTORS CORP.
  6. Tighten the armrest inner trim panel screws, fully driven, seated, but not stripped.
  7. Verify proper operation of the console lid and latch.
