Installation Procedure

NOTE: Refer to FASTENER NOTICE  in Cautions and Notices.
  1. Align the knee bolster bracket (3) to the lower I/P, then install the knee bolster fasteners (2).

    Tighten

    Tighten the fasteners (2) to 9 N.m (80 lb in).

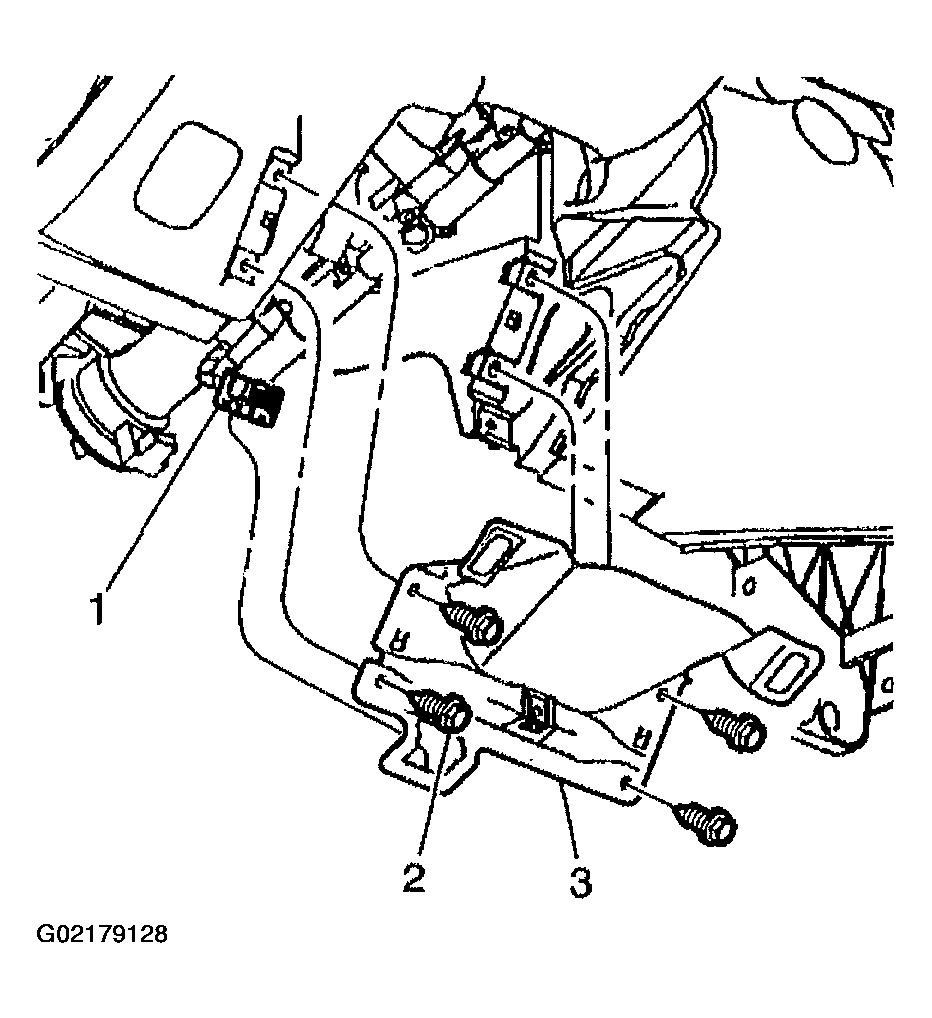

    Fig 1: Installing Knee Bolster Bracket Fasteners
    G02179128Courtesy of GENERAL MOTORS CORP.
  2. Install the DLC to the knee bolster.
  3. Install the knee bolster trim panel. Refer to TRIM PANEL REPLACEMENT - KNEE BOLSTER   .
  4. Install the left sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT (LHD)   or CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT (RHD)   or to CLOSEOUT/INSULATOR PANEL REPLACEMENT RIGHT (LHD)   or CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT (RHD)   .
