Removal Procedure

  1. Remove the IP cluster. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT   .
  2. Remove the fasteners from the lens to the IP cluster.

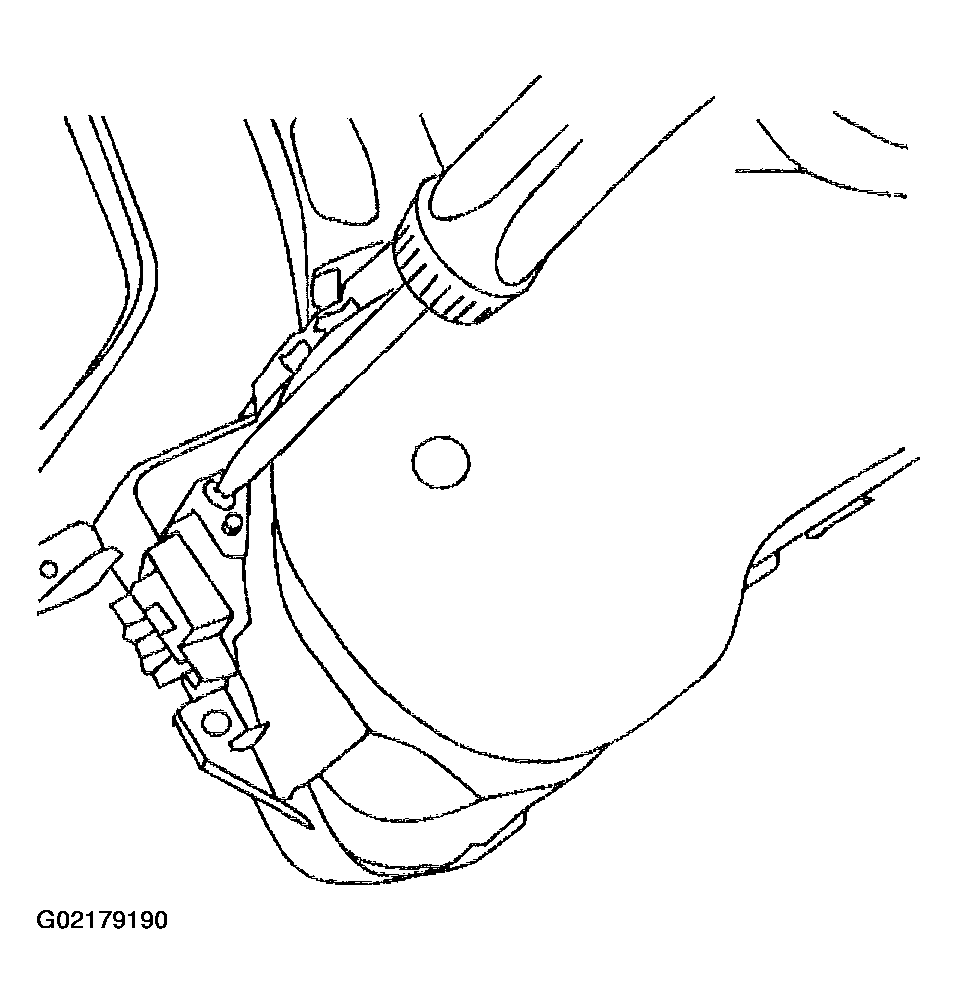

    Fig 1: Removing IP Cluster Lens Fasteners
    G02179190Courtesy of GENERAL MOTORS CORP.
  3. Use a flat-bladed tool in order to disengage the snap retainers at the cluster lens to the housing.
  4. Remove the IP cluster lens.

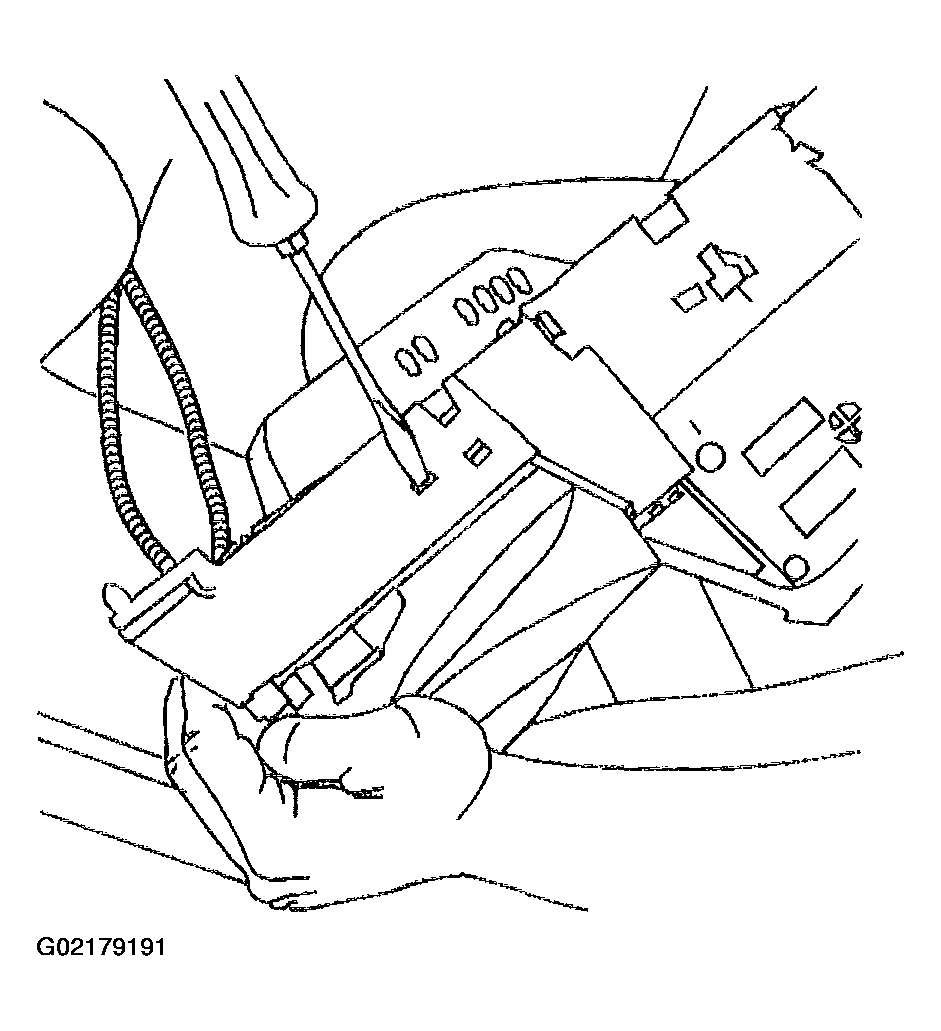

    Fig 2: Disengaging Snap Retainers At Cluster Lens Using Flat-Bladed Tool
    G02179191Courtesy of GENERAL MOTORS CORP.
