Removal Procedure

  1. Grip the outer trim cover (1) at the grommet opening and pull the outer trim cover outward in order to disengage the retainers at the rear edge of the outer trim cover.
  2. Remove the IP outer trim cover.

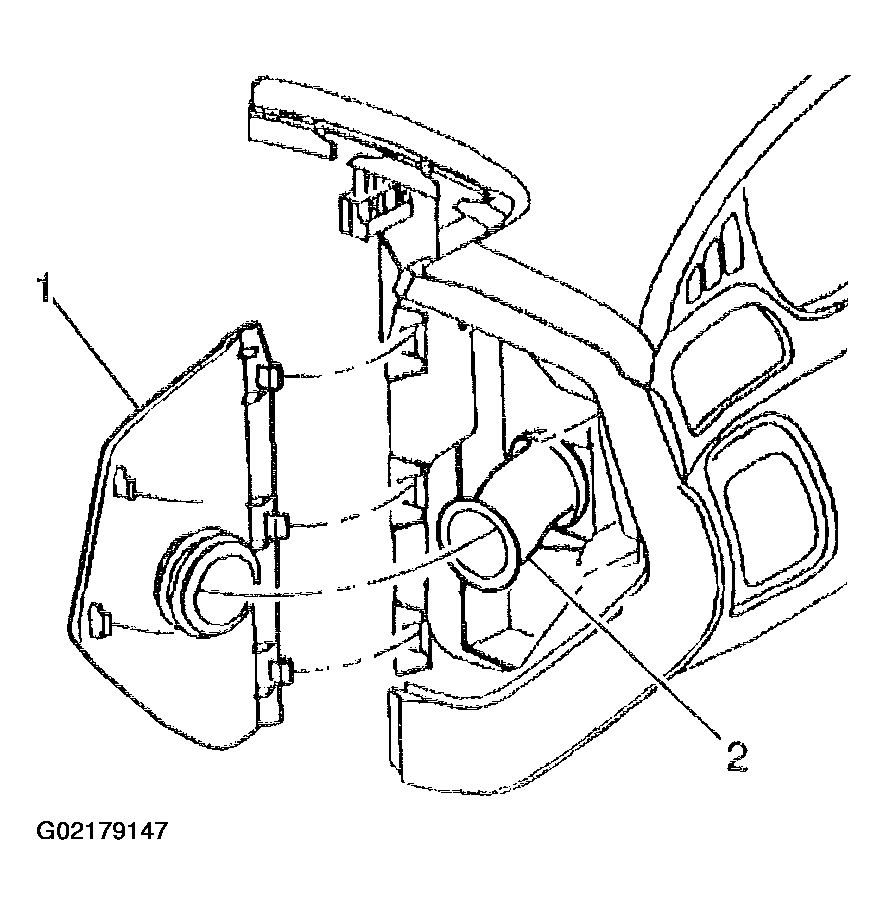

    Fig 1: Removing Instrument Panel Outer Trim Cover
    G02179147Courtesy of GENERAL MOTORS CORP.
