Installation Procedure

  1. Align the tabs on front edge of the outer trim cover (1) with the slots in the IP retainer.
  2. Push the outer trim cover toward the IP in order to engage the retainers.

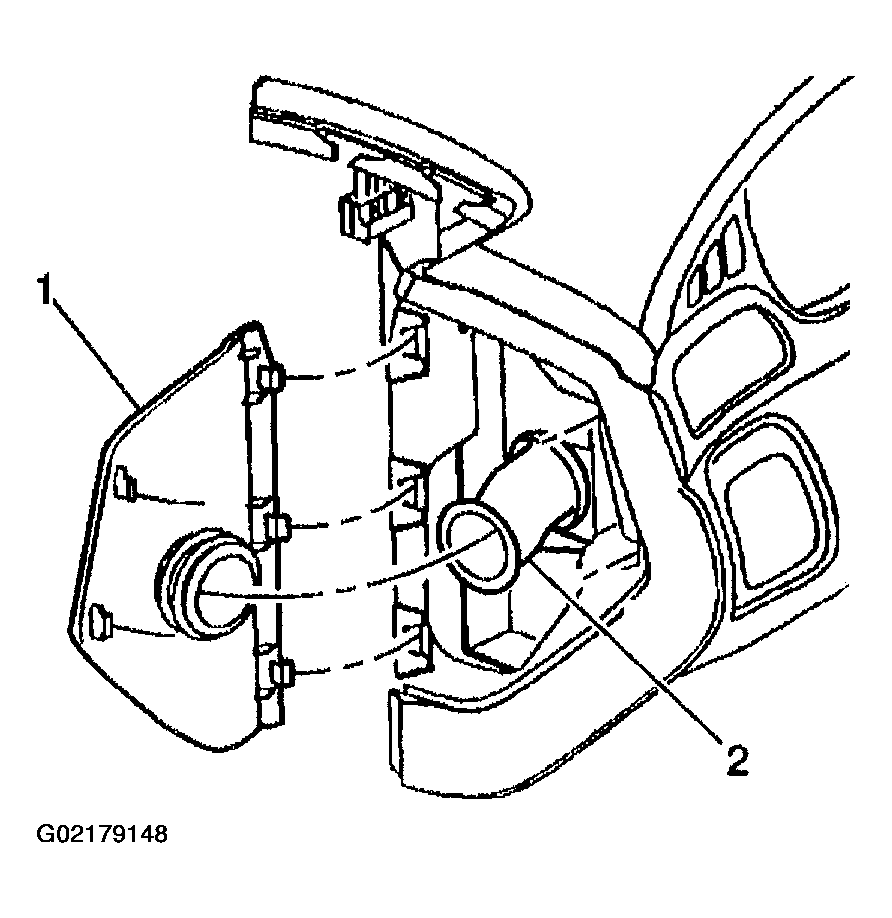

    Fig 1: Installing Instrument Panel Outer Trim Cover
    G02179148Courtesy of GENERAL MOTORS CORP.
