Removal Procedure

CAUTION: Refer to SIR CAUTION in Cautions and Notices.

Disable SIR. Refer to ZONE 3 and ZONE 5 in Air Bag Restraint Systems.
Remove the floor console. Refer to CONSOLE REPLACEMENT (W/O UV8) or CONSOLE REPLACEMENT (W/ UV8) .
Remove the drivers knee bolster. Refer to KNEE BOLSTER REPLACEMENT .
Remove the instrument panel (I/P) outer trim cover. Refer to INSTRUMENT PANEL (I/P) OUTER TRIM COVER REPLACEMENT .
Remove the I/P upper trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER .
Remove the defroster grille. Refer to DEFROSTER GRILLE REPLACEMENT .
Disconnect the body to I/P electrical connectors (1) at the top, outside corners of I/P.

Fig 1: Disconnecting Body To Instrument Panel Connector
Courtesy of GENERAL MOTORS CORP.
For RHD only, remove the park brake cable from the park brake pedal assembly. Refer to PARK BRAKE CABLES in Disc.

Fig 2: Removing Park Brake Cable From Park Brake Pedal Assembly
Courtesy of GENERAL MOTORS CORP.
With the steering wheel centered, install the J 42640 in order to lock the steering column.

Fig 3: Installing Tool To Lock Steering Column
Courtesy of GENERAL MOTORS CORP.
Remove the steering column to body bolts (1). Refer to STEERING COLUMN REPLACEMENT in Steering Wheel and Column.
Disconnect the steering shaft from the steering gear. Refer to INTERMEDIATE STEERING SHAFT REPLACEMENT in Steering Wheel and Column.

Fig 4: Removing Steering Column To Body Bolts
Courtesy of GENERAL MOTORS CORP.
Disconnect the steering column harness connector (1).

Fig 5: Disconnecting Steering Column Harness Connector
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connector (1) for the tilt and telescoping module, to the main body harness, if equipped.

Fig 6: Disconnecting Main Body Harness Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Disconnect the body harness connection (1) and the audio antenna connection (2), which are located next to the I/P extension.

Fig 7: Disconnect Body Harness Connection & Audio Antenna Connection
Courtesy of GENERAL MOTORS CORP.
Remove the I/P extension bolts (1).

Fig 8: Removing I/P Extension Bolts
Courtesy of GENERAL MOTORS CORP.
Remove I/P carrier to cowl nuts (1).

Fig 9: Removing I/P Carrier To Cowl Nuts
Courtesy of GENERAL MOTORS CORP.

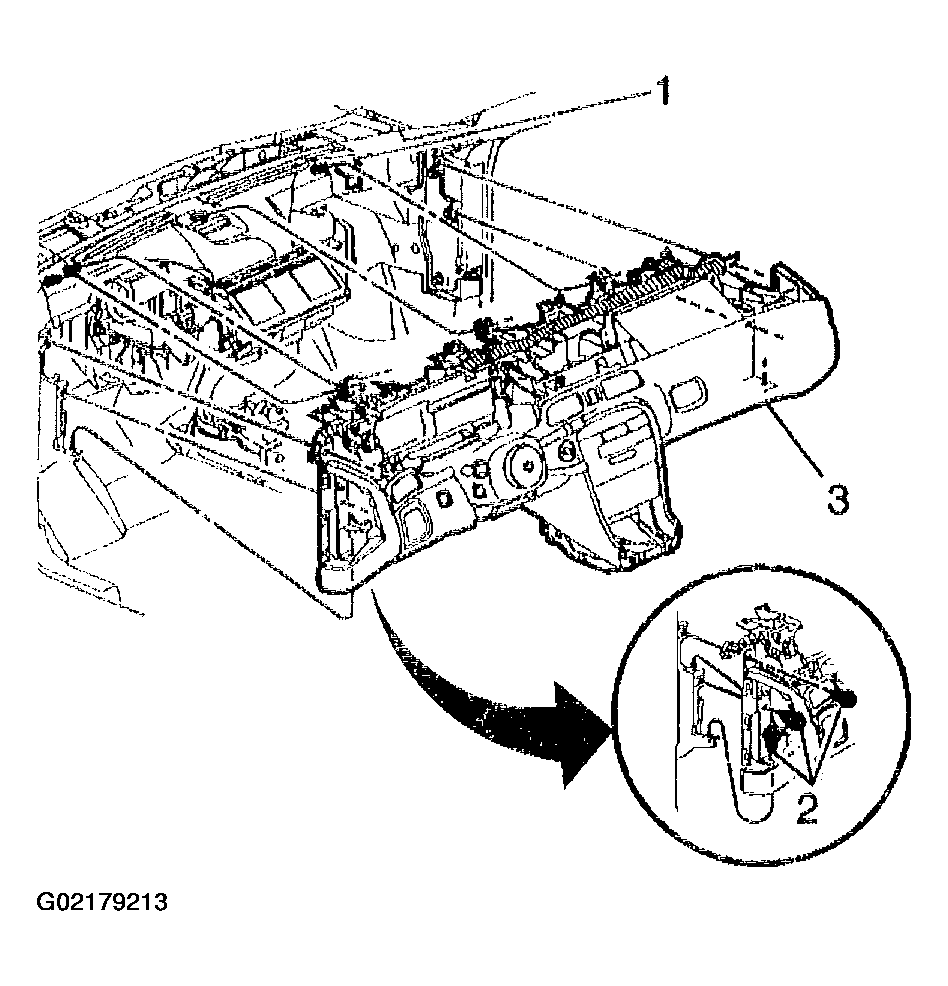

Remove the bolts (2) from the left and right I/P carrier to hinge pillar.

Fig 10: Removing Bolts From Left & Right I/P Carrier To Hinge Pillar
Courtesy of GENERAL MOTORS CORP.
Remove the I/P assembly (3) from the vehicle.
