Removal Procedure

  1. Open the console door.
  2. Remove the screws (1) that retain the armrest inner trim panel.
  3. Remove the armrest inner trim panel.

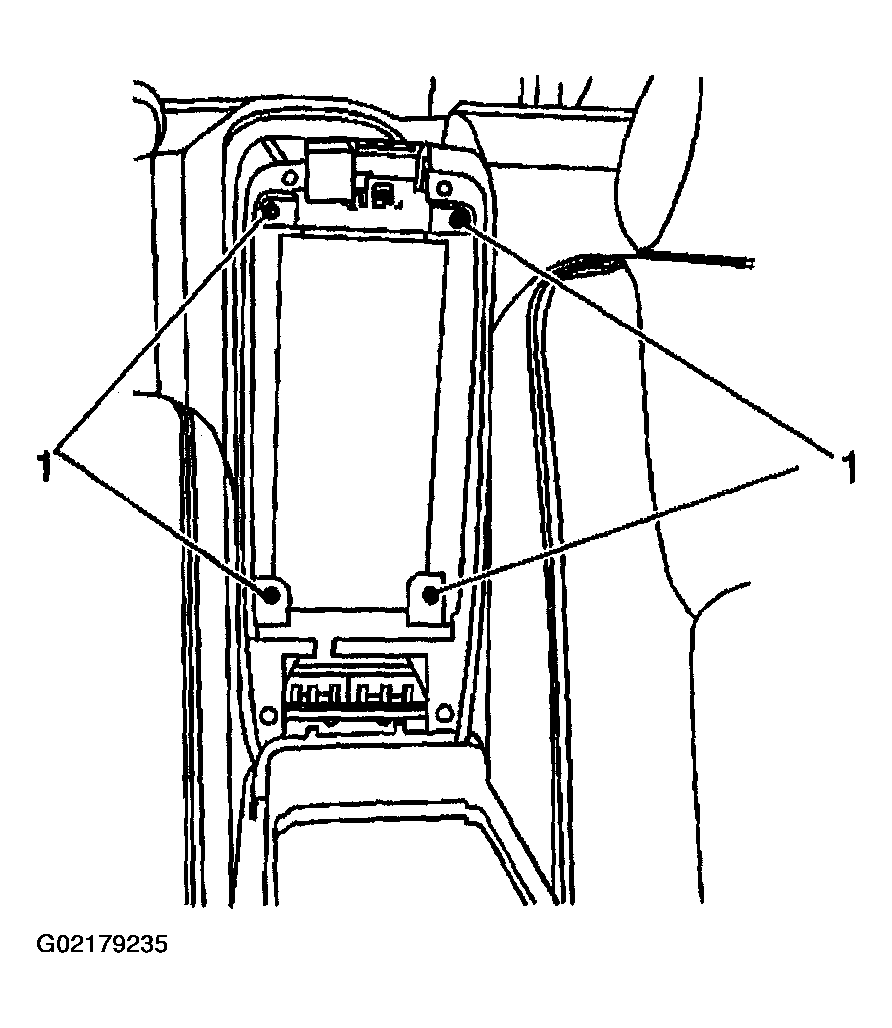

    Fig 1: Removing Armrest Inner Trim Panel Retaining Screw
    G02179235Courtesy of GENERAL MOTORS CORP.
  4. Remove the hinge screws (1).

    Remove the console armrest.

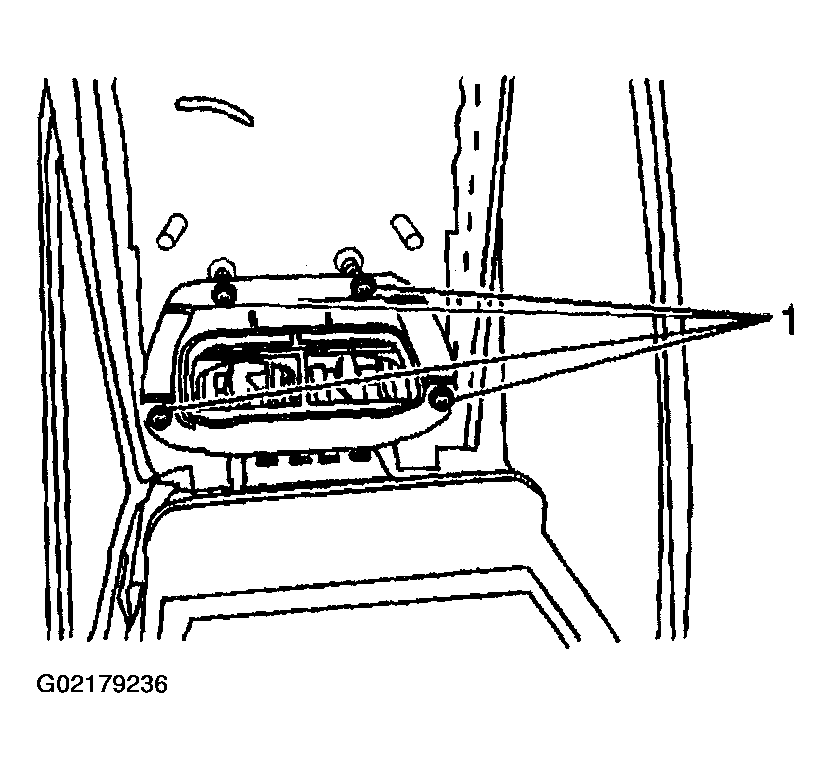

    Fig 2: Removing Console Armrest Hinge Screws
    G02179236Courtesy of GENERAL MOTORS CORP.
