Removal Procedure

CAUTION: Refer to SIR CAUTION in Cautions and Notices.
  1. Disable the SIR. Refer to ZONE 3 and ZONE 5 in Air Bag Restraint Systems.
  2. Remove the instrument panel (I/P) upper trim panel. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER   .
  3. Remove the fasteners (2) that secure the defroster grille to the I/P carrier.

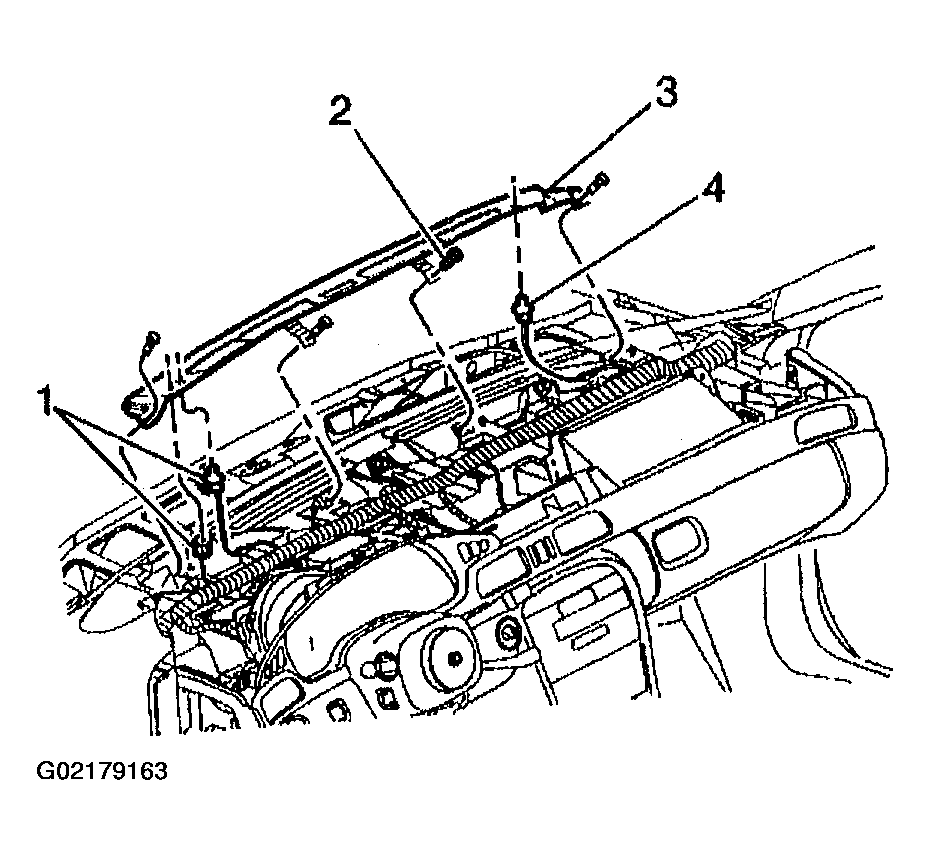

    Fig 1: Removing Defroster Grille & Fasteners
    G02179163Courtesy of GENERAL MOTORS CORP.
  4. Partially remove the defroster grille in order to disconnect the sunload sensors from the defroster grille. Refer to SUNLOAD AND TWILIGHT SENTINEL SENSOR REPLACEMENT   .
  5. Remove the defroster grille (3).
