Removal Procedure

  1. Remove the center console trim plate. Refer to TRIM PLATE REPLACEMENT - CONSOLE   .
  2. Open the center console door.

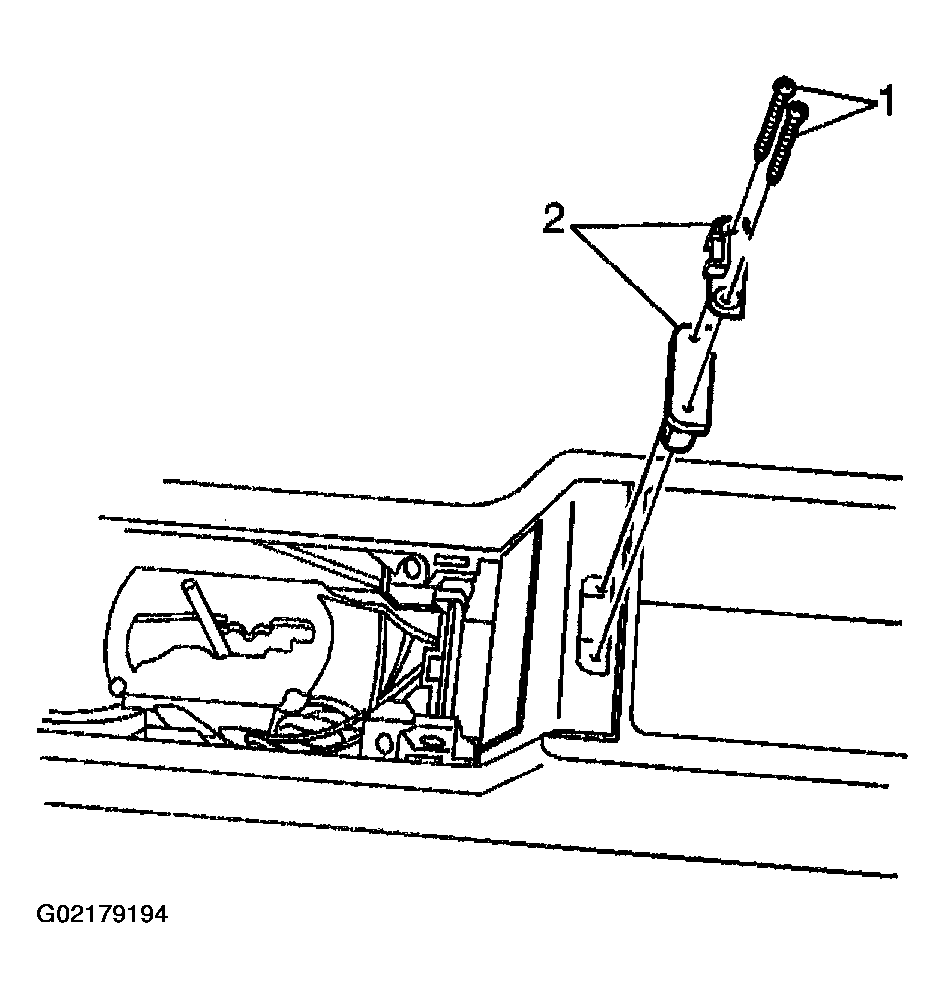

  3. Remove the console door striker assembly (1, 2).
    Fig 1: Removing Console Door Striker Assembly
    G02179194Courtesy of GENERAL MOTORS CORP.

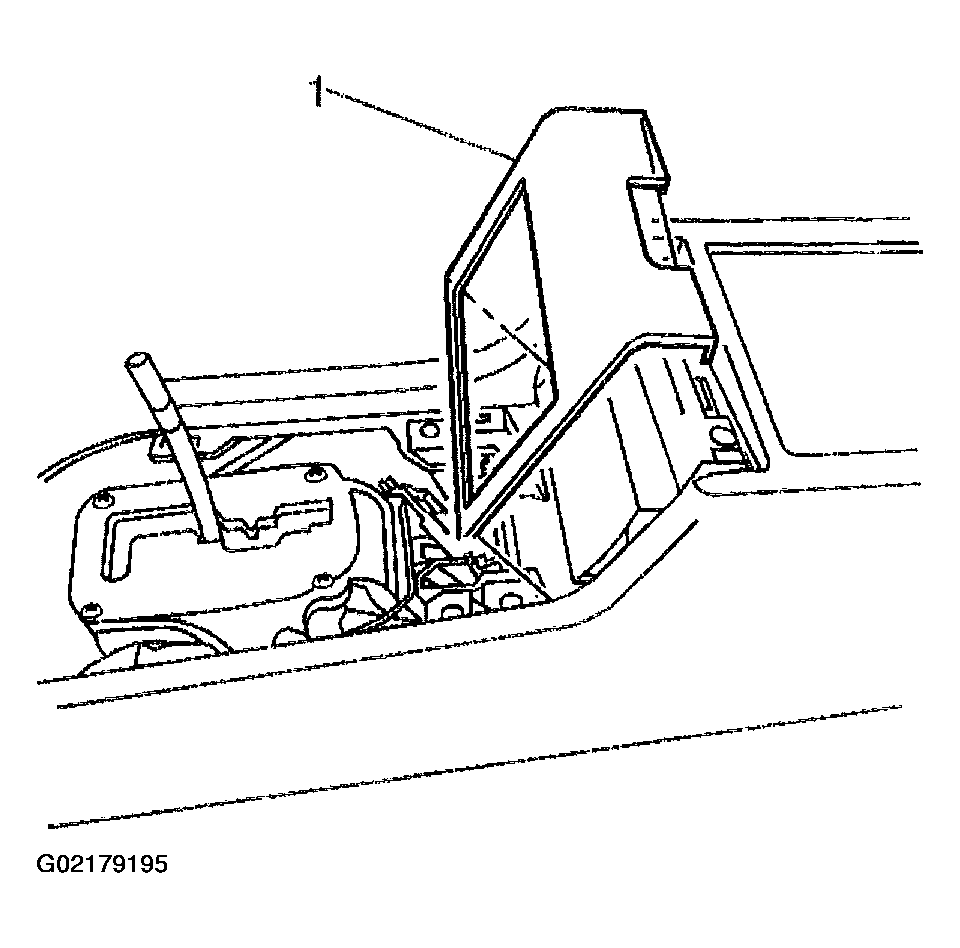

  4. Remove the cup holder trim plate (1) from the center console.
    Fig 2: Removing Cup Holder Trim Plate
    G02179195Courtesy of GENERAL MOTORS CORP.

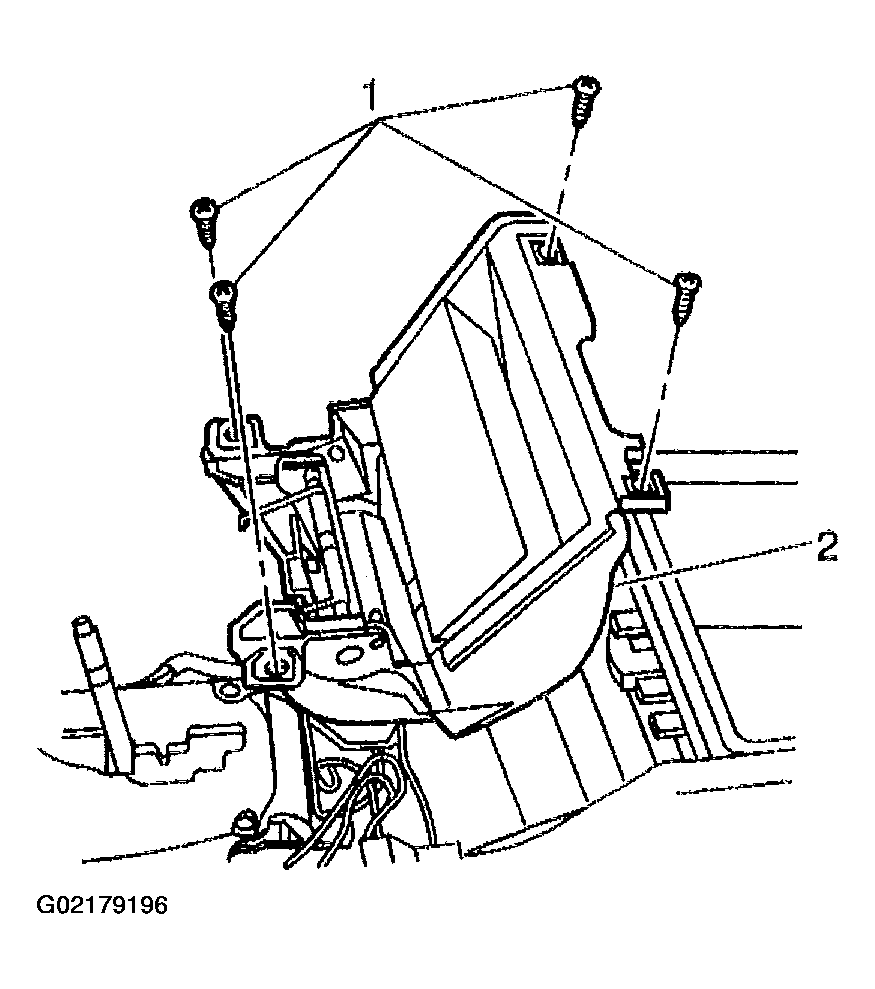

  5. Remove the four fasteners (1) from the cup holder assembly (2).
    Fig 3: Removing Cup Holder Assembly Fasteners
    G02179196Courtesy of GENERAL MOTORS CORP.
  6. Remove the cupholder assembly (2) from the center console.
