Removal Procedure

  1. Remove the console trim plate. Refer to TRIM PLATE REPLACEMENT - CONSOLE   .
  2. Open the console bin door.
  3. Remove the console bin door latch.
  4. Remove the cup holder trim plate.

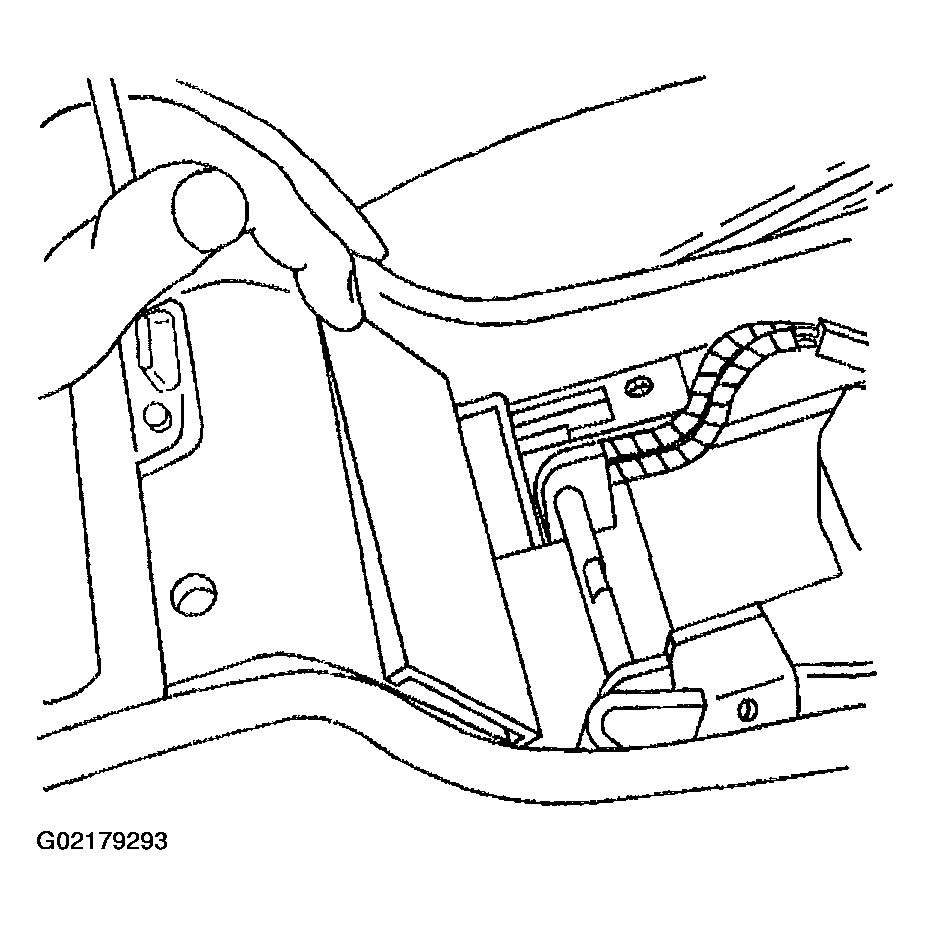

    Fig 1: Removing Cup Holder Trim Plate
    G02179293Courtesy of GENERAL MOTORS CORP.
  5. Remove the 2 fasteners from the upper front edge of the console bin.
  6. Remove the 2 fasteners from the front edge of the cupholder, behind the shifter assembly.
  7. Lift the cupholder from the console.

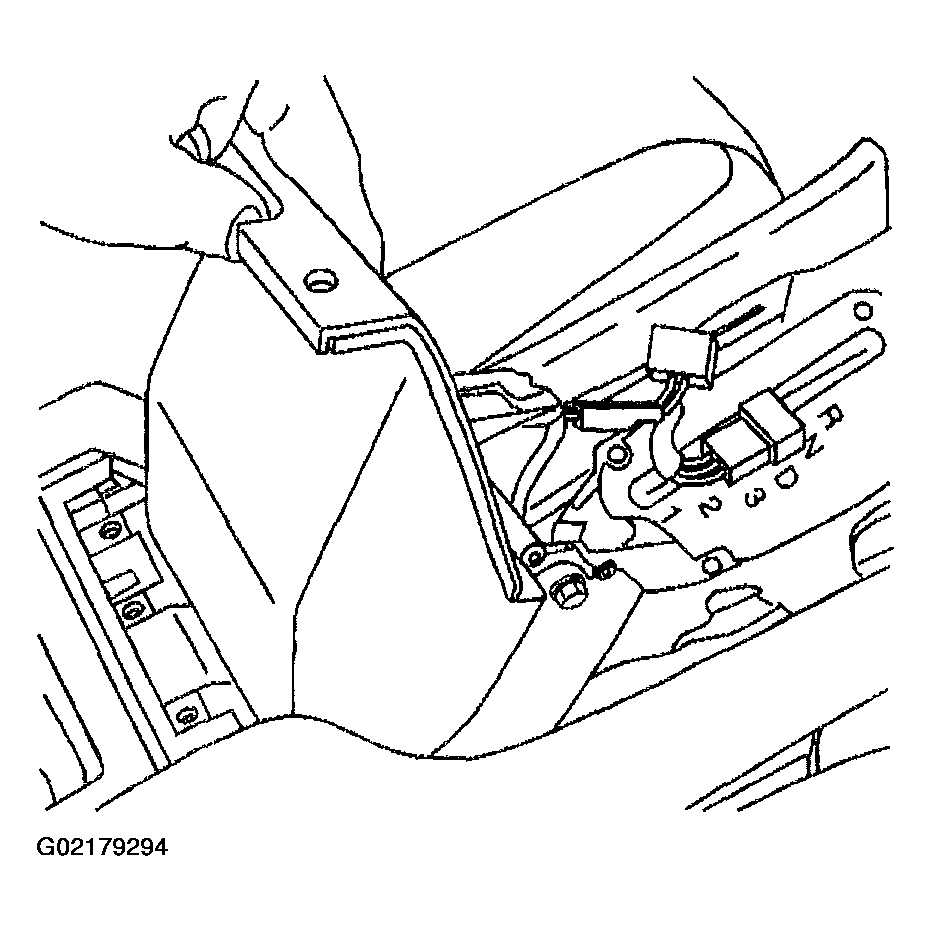

    Fig 2: Removing Cupholder From Console
    G02179294Courtesy of GENERAL MOTORS CORP.
