Removal Procedure

Remove the rear ashtray and lighter assembly from the rear of the center console. Refer to CONSOLE ASHTRAY/LIGHTER (REAR) .

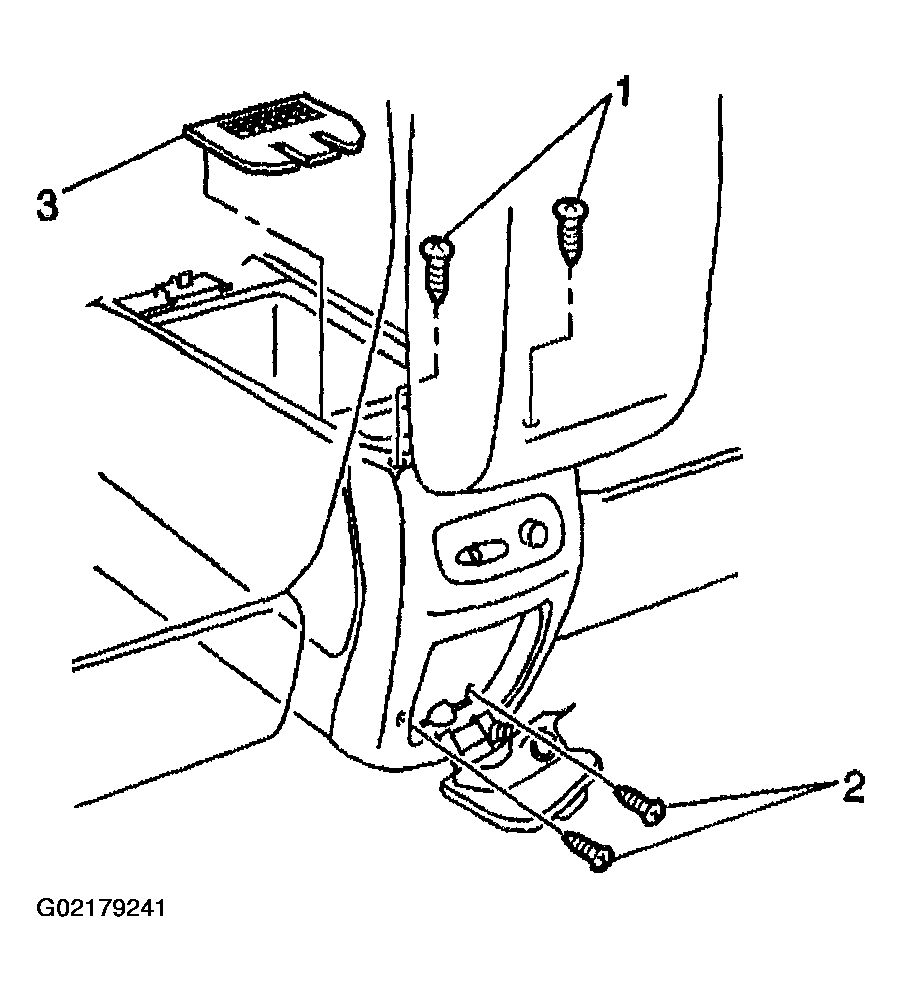

Remove the 2 screws (2) from behind the rear ashtray and lighter assembly.

Fig 1: Removing Console Rear Cover Screws
Courtesy of GENERAL MOTORS CORP.
Open the console compartment door.
Use a flat-bladed tool in order to remove the rear air vent cover (3) from the center console.
Remove the cellular telephone docking station, if equipped with a Cellular phone, UV8. Refer to CELLULAR TELEPHONE DOCKING STATION REPLACEMENT in Cellular Communications.

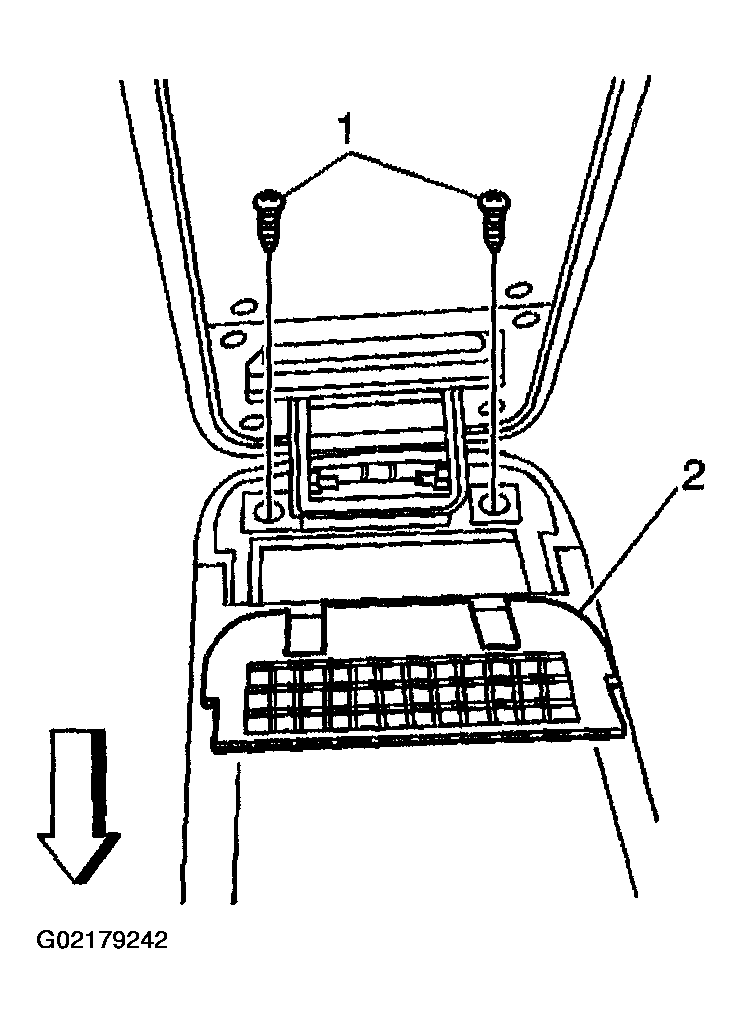

Remove the 2 screws (1) from the console door hinge.
Remove the console door and the hinge assembly from the center console.

Fig 2: Removing Console Door Hinge Screws
Courtesy of GENERAL MOTORS CORP.

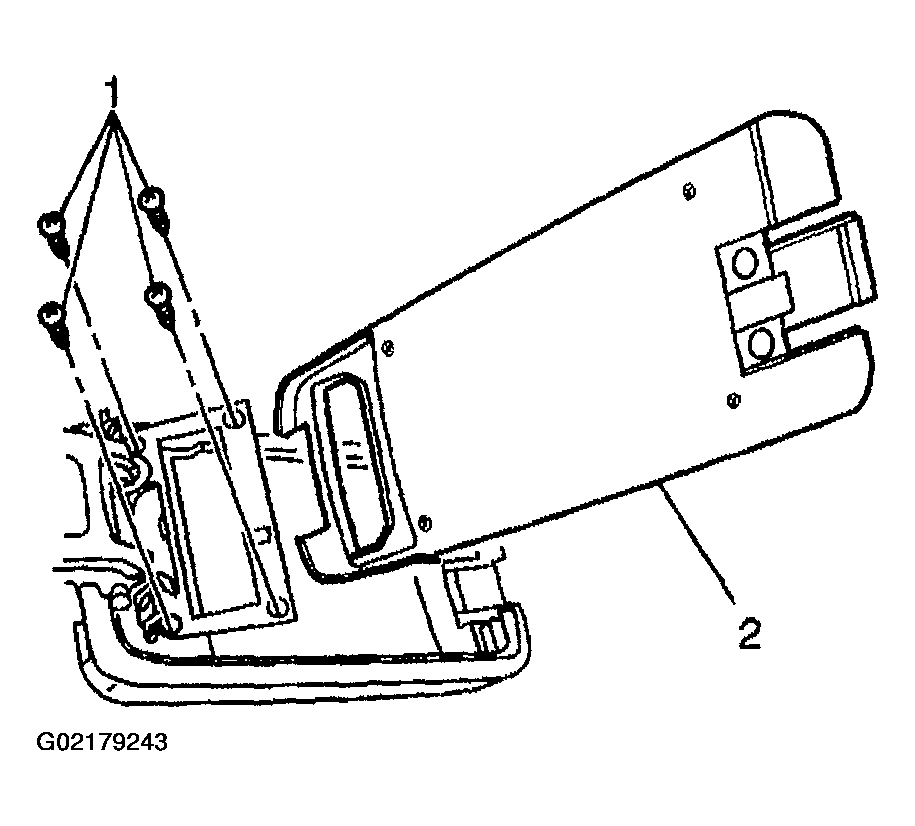

Remove the screws (1) that retain the console tray (2) to the hinge.
Remove the console door (2) from the hinge.

Fig 3: Removing Console Door From Hinge & Screws
Courtesy of GENERAL MOTORS CORP.

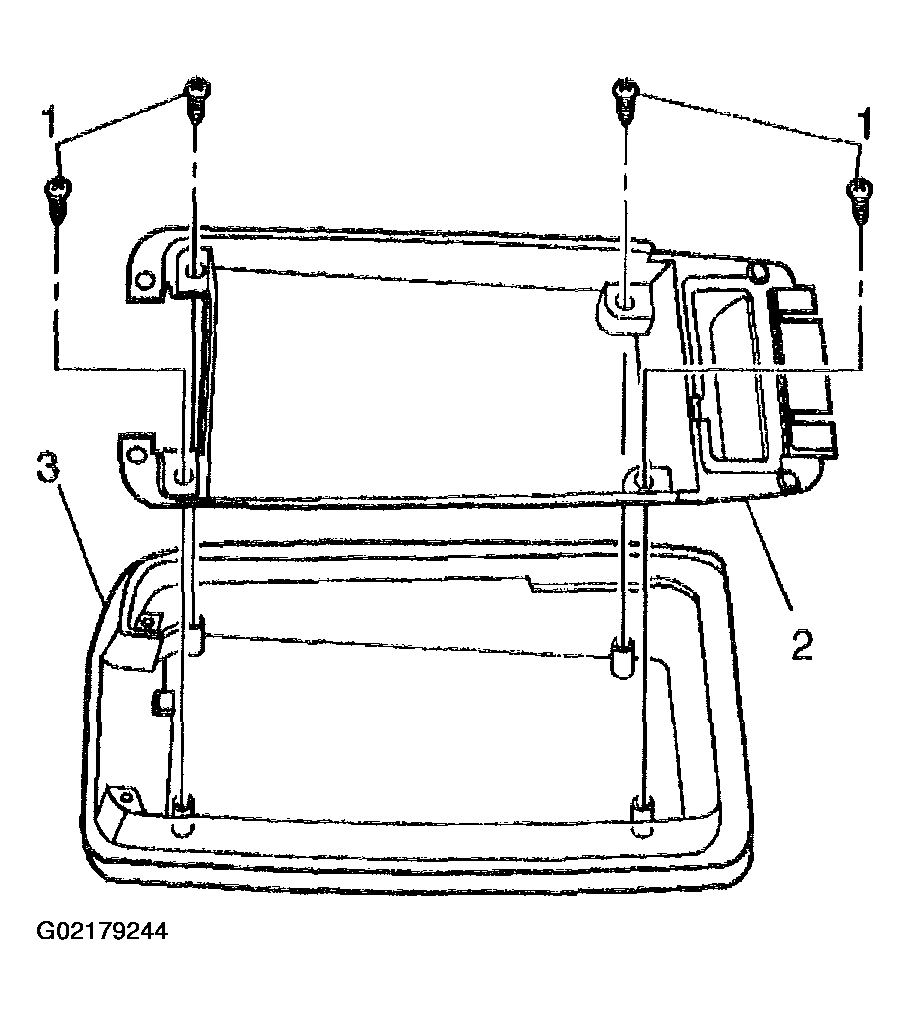

Remove the screws (1) that retain the armrest inner trim panel (2) to the armrest.
Remove the armrest inner trim panel (2).

Fig 4: Removing Armrest Inner Trim Panel & Screws
Courtesy of GENERAL MOTORS CORP.

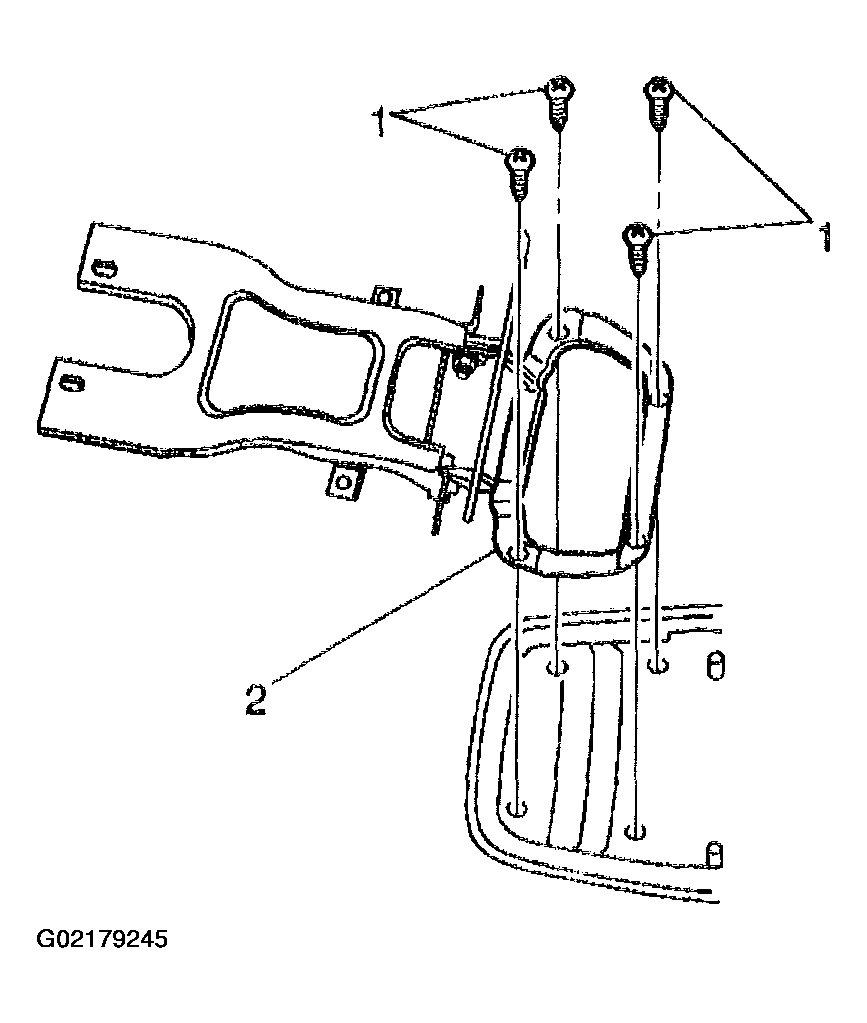

Remove the screws (1) that secure the console door hinge (2) to the armrest.
Remove the console door hinge (2).

Fig 5: Removing Console Door Hinge & Screws
Courtesy of GENERAL MOTORS CORP.
