Installation Procedure

  1. Assemble the lighter element (1) and the lighter element retainer (2) to the lighter compartment door (3).

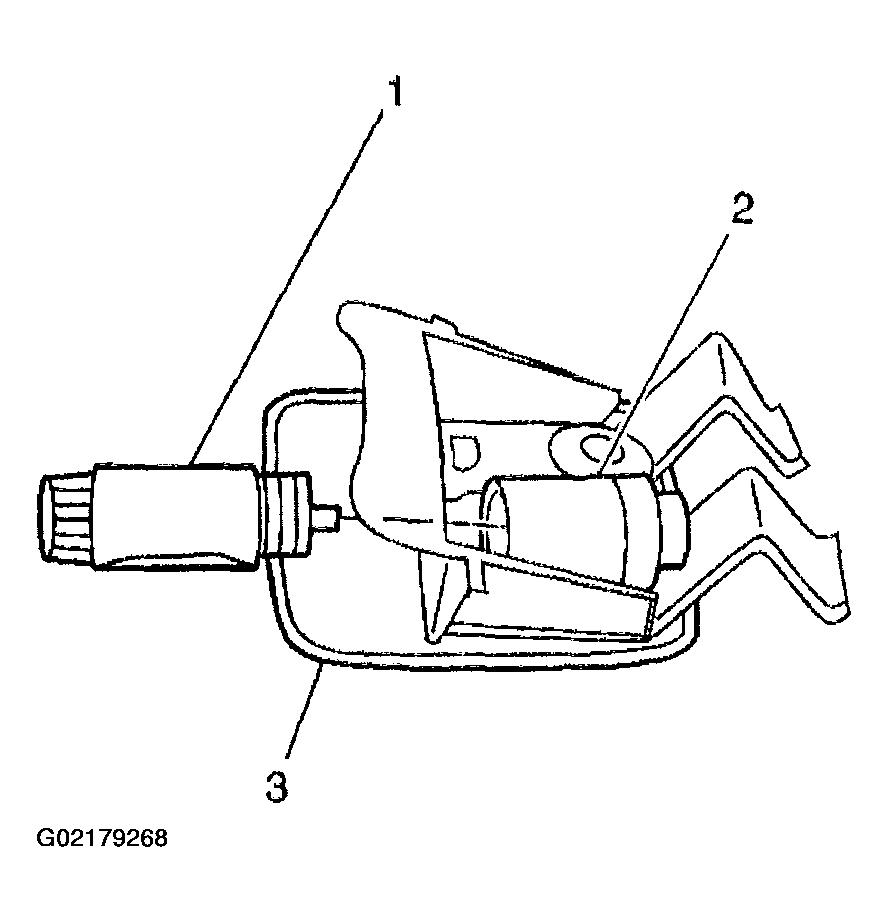

    Fig 1: Installing Lighter Assembly To Lighter Compartment Door
    G02179268Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the lighter.
  3. Position the lighter compartment door springs into the recess in the rear console opening.
  4. With the retainer legs in place, push down on the lighter compartment door until the door can be closed.
  5. Ensure proper operation of the lighter compartment door.

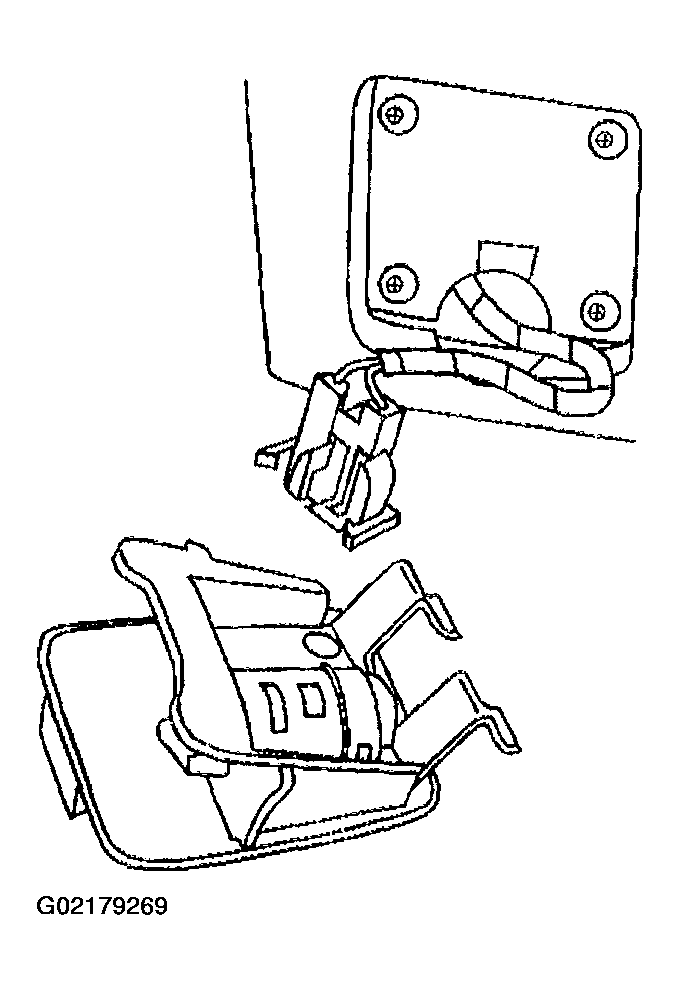

    Fig 2: Connecting Electrical Connector To Lighter
    G02179269Courtesy of GENERAL MOTORS CORP.
