Removal Procedure

  1. Remove the fasteners (1) at the rear edges of the insulators in order to disengage the insulators from the lower instrument panel (IP).
  2. Push in on the snap tab retainers in order to release the fasteners.

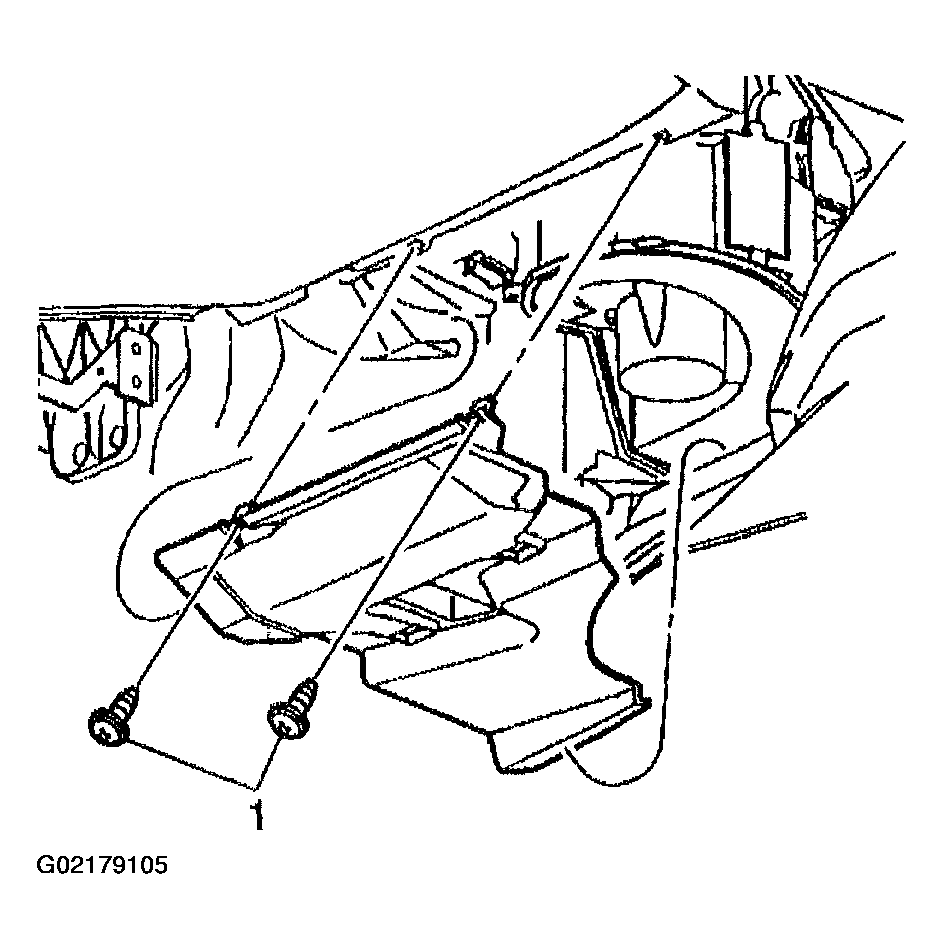

    Fig 1: Removing Fasteners At Insulator Rear Edge (LHD)
    G02179105Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connectors (1, 2).

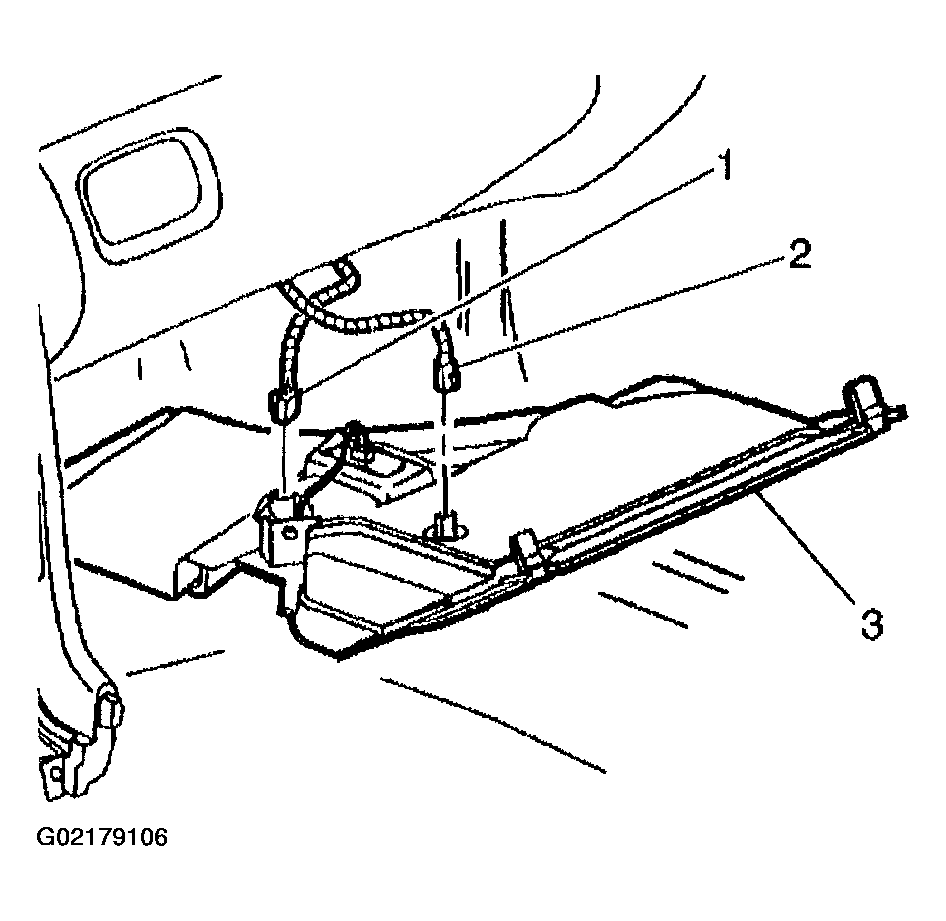

    Fig 2: Disconnecting Electrical Connectors (LHD)
    G02179106Courtesy of GENERAL MOTORS CORP.
  4. Slide the insulator (3) rearward toward the vehicle.
