Installation Procedure

  1. Set the forward edge of the insulator shelf on the carpeting at the front of the vehicle.
  2. Connect the electrical connectors (1, 2).

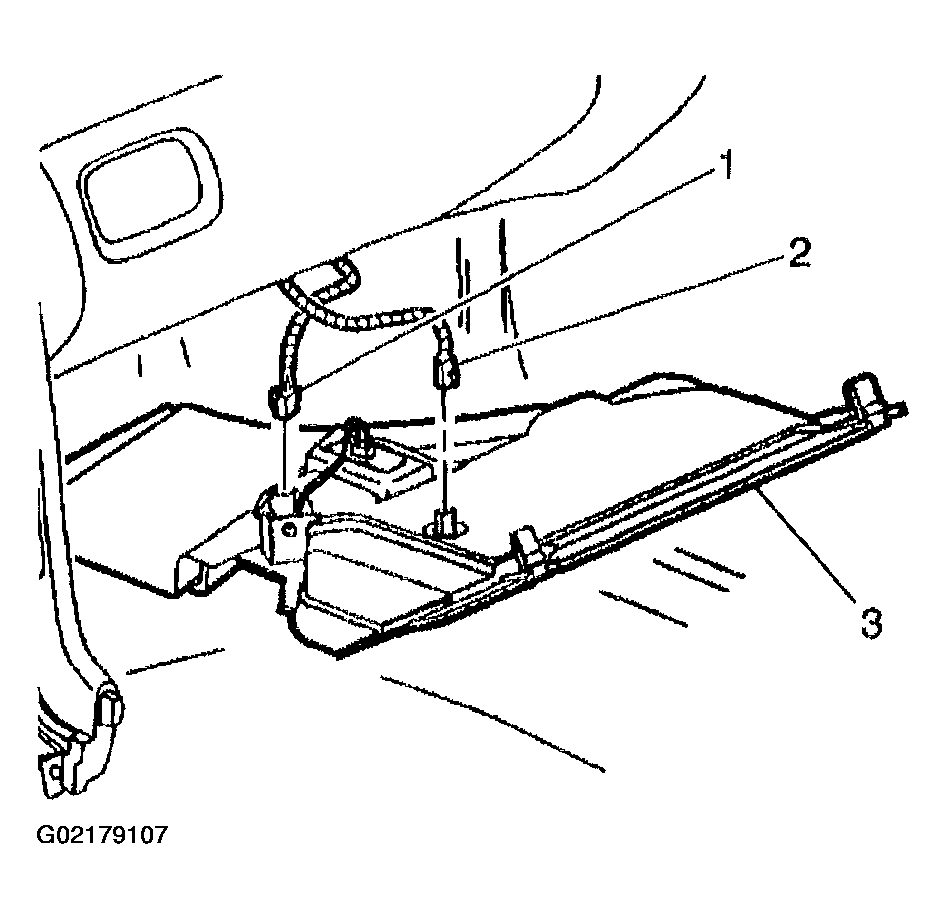

    Fig 1: Connecting Electrical Connectors (LHD)
    G02179107Courtesy of GENERAL MOTORS CORP.
  3. Align the insulator with the floor duct at the HVAC module.
  4. Align the snap tab fasteners with the lower IP and push the insulator upward in order to engage the fasteners.
    NOTE: Refer to FASTENER NOTICE  in Cautions and Notices.
  5. Install the insulator fasteners (1) into the lower IP.

    Tighten

    Tighten the fasteners to 2 N.m (18 lb in).

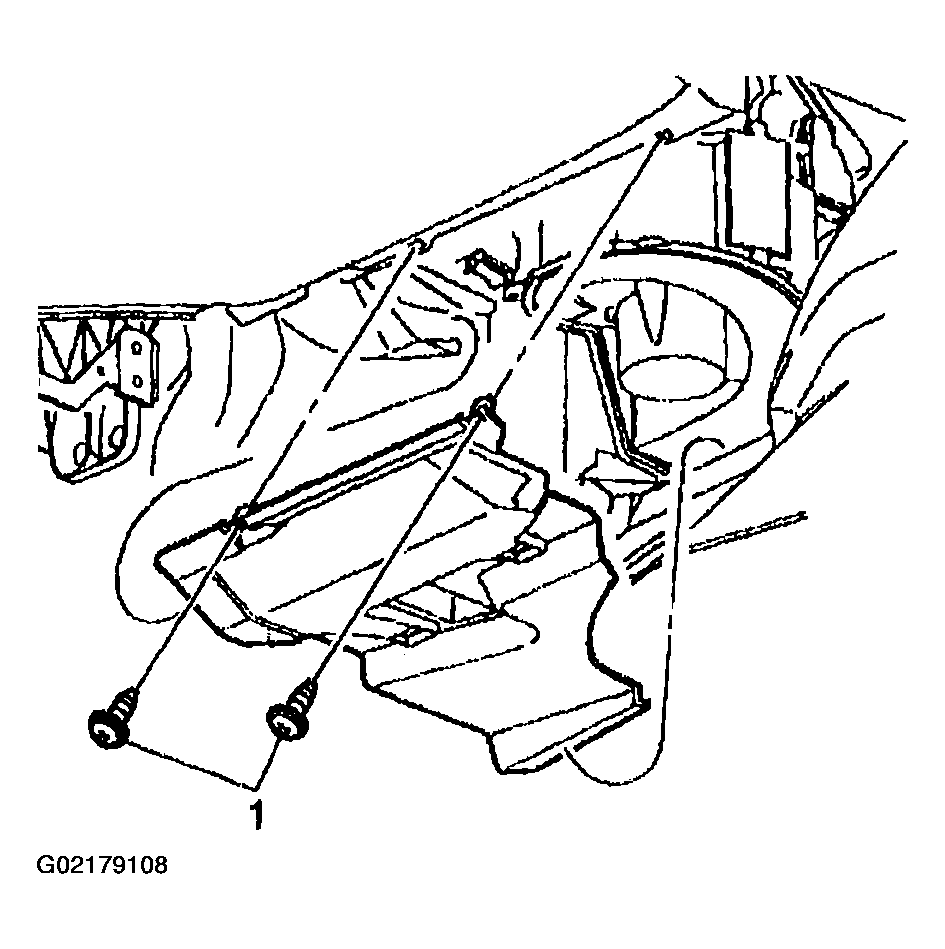

    Fig 2: Installing Insulator Fasteners (LHD)
    G02179108Courtesy of GENERAL MOTORS CORP.
