Installation Procedure

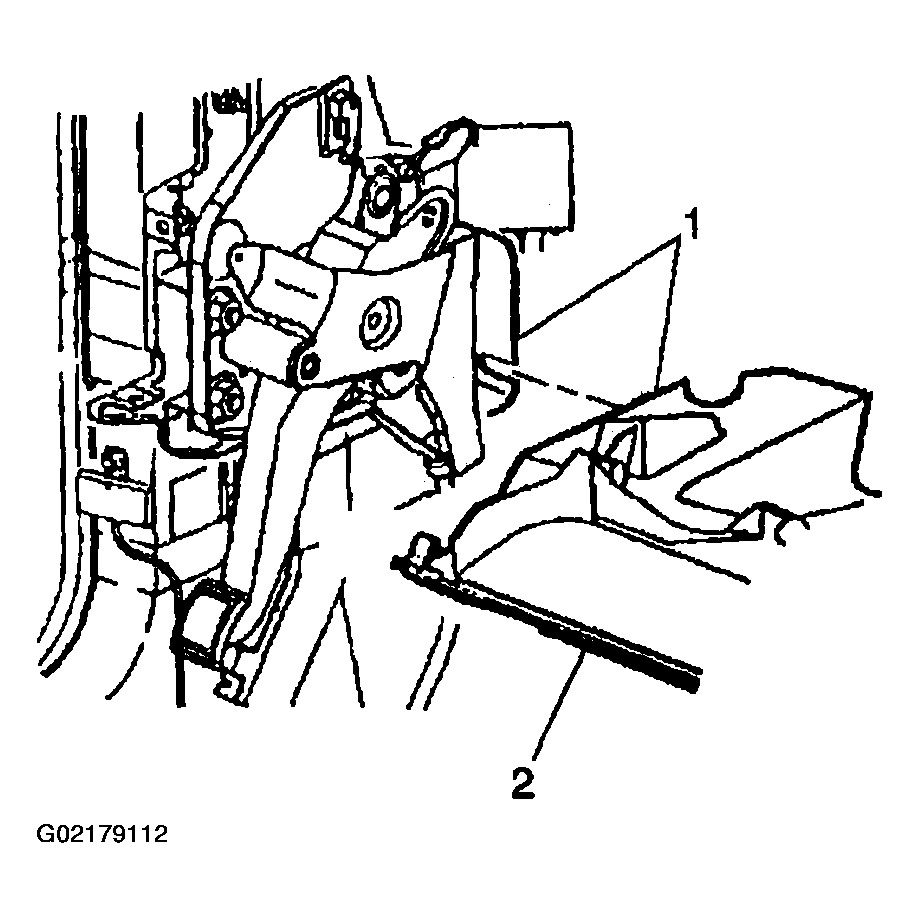

Slide the insulator (2) over the top of the park brake bracket.

Fig 1: View Of Closeout/Insulator Panel (RHD)
Courtesy of GENERAL MOTORS CORP.

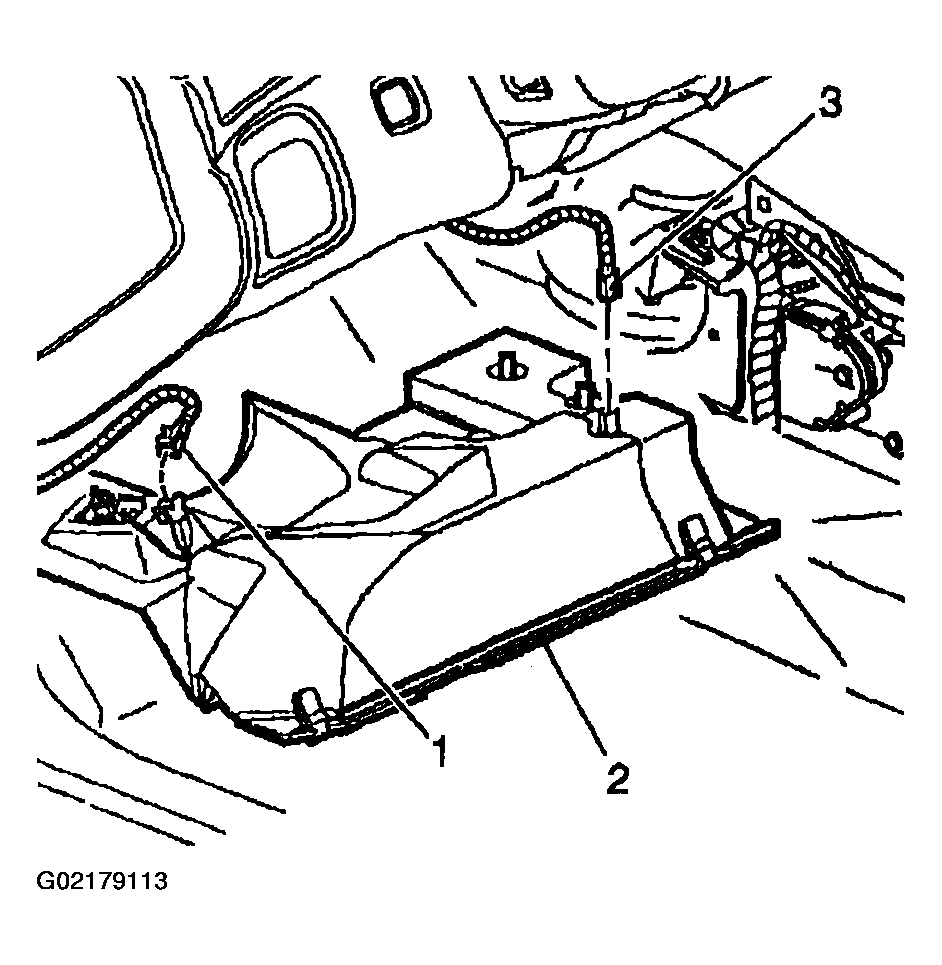

Connect the electrical connectors (1, 3).

Fig 2: Connecting Electrical Connectors (RHD)
Courtesy of GENERAL MOTORS CORP.
Set the forward edge of the insulator onto the shelf on the carpeting at the front of the vehicle.
Align the insulator with the floor duct at the HVAC module.
Align the snap tab fasteners with the lower IP and push the insulator upward in order to engage the fasteners.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

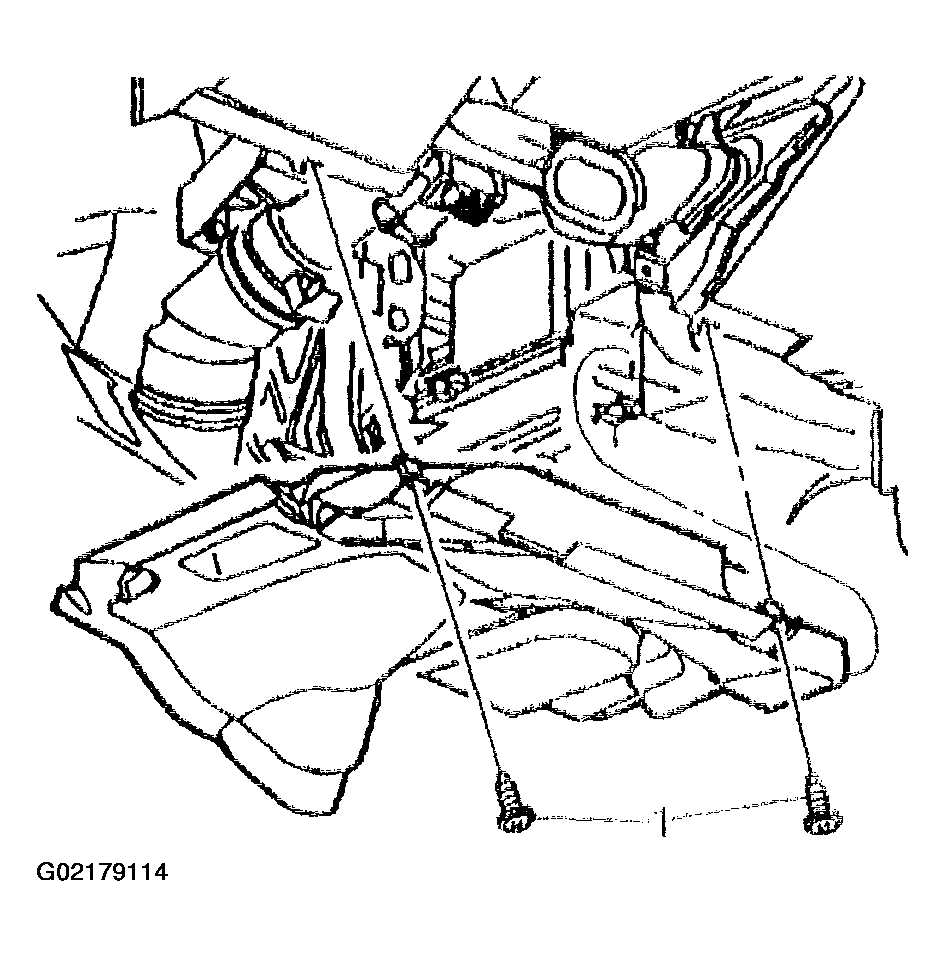

Install the insulator fasteners (1) into the lower IP.
Tighten

Tighten the fasteners to 2 N.m (18 lb in).

Fig 3: Installing Insulator Fasteners (RHD)
Courtesy of GENERAL MOTORS CORP.
