Removal Procedure

  1. Remove the right console side trim panel. Refer to CONSOLE TRIM PANEL REPLACEMENT - RIGHT   .
  2. Disconnect the auxiliary power outlet electrical connector (1).

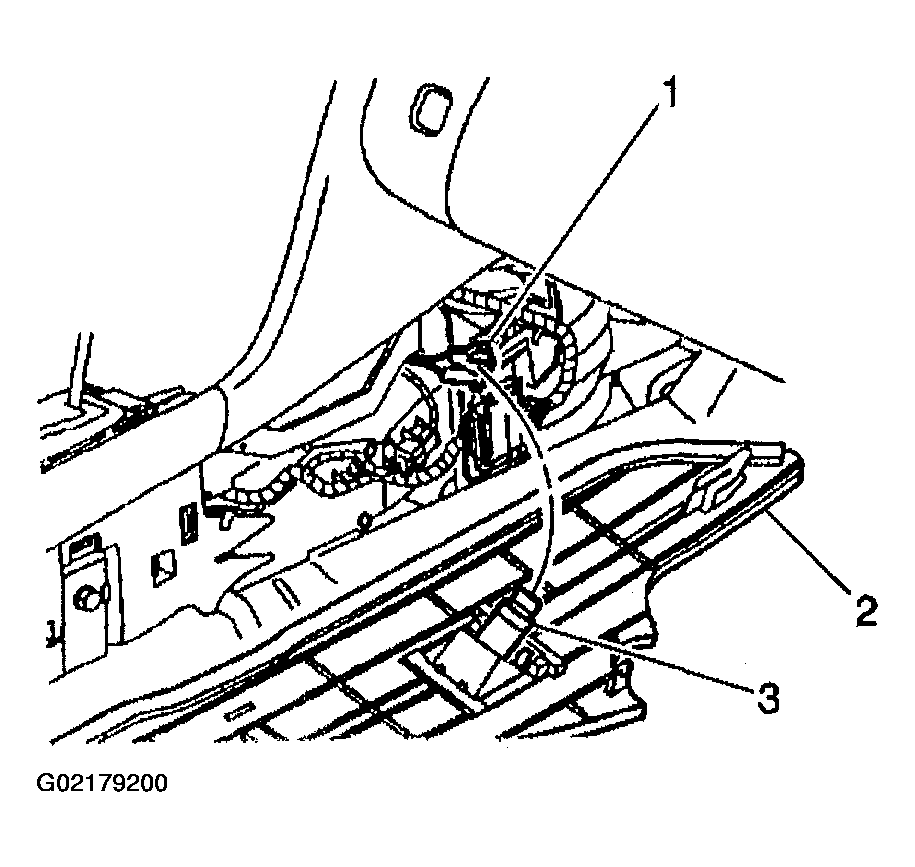

    Fig 1: Disconnecting Auxiliary Power Outlet Electrical Connector
    G02179200Courtesy of GENERAL MOTORS CORP.
  3. Unscrew the retainer (3) from the outlet.
  4. Slide the outlet from the trim panel.
