Installation Procedure

  1. Slide the outlet into the hole in the trim panel.
  2. Screw the retainer (3) onto the outlet.
  3. Connect the auxiliary power outlet electrical connector (1).

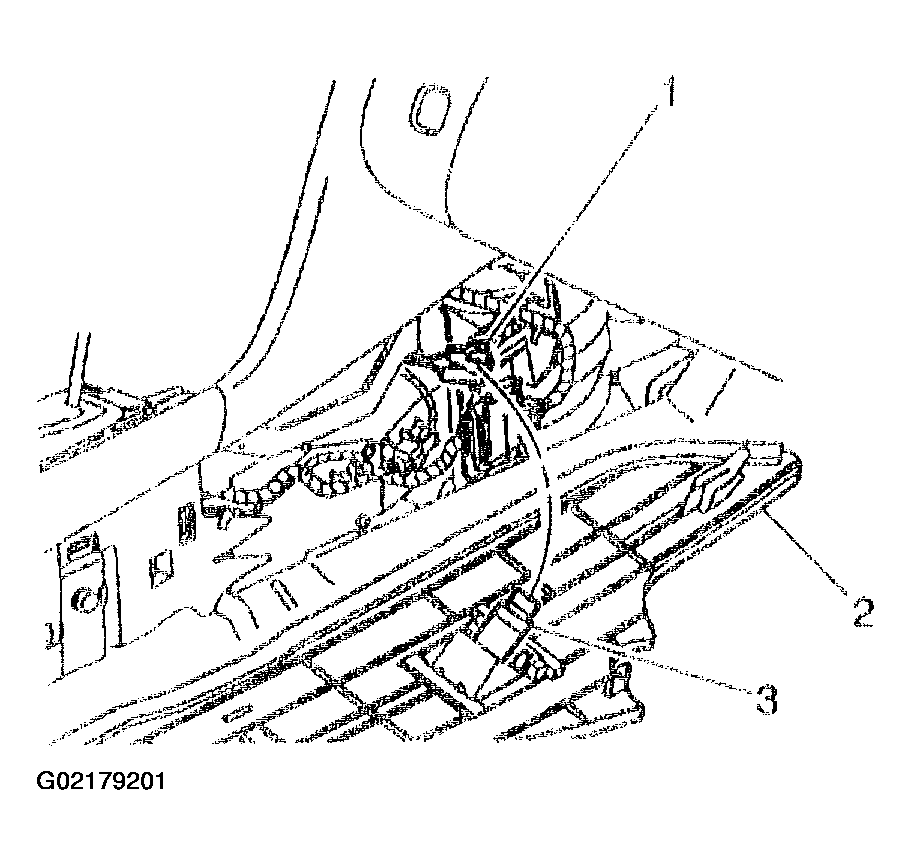

    Fig 1: Connecting Auxiliary Power Outlet Electrical Connector
    G02179201Courtesy of GENERAL MOTORS CORP.
  4. Install the right console side trim panel. Refer to CONSOLE TRIM PANEL REPLACEMENT - RIGHT   .
