Tachometer Inaccurate or Inoperative

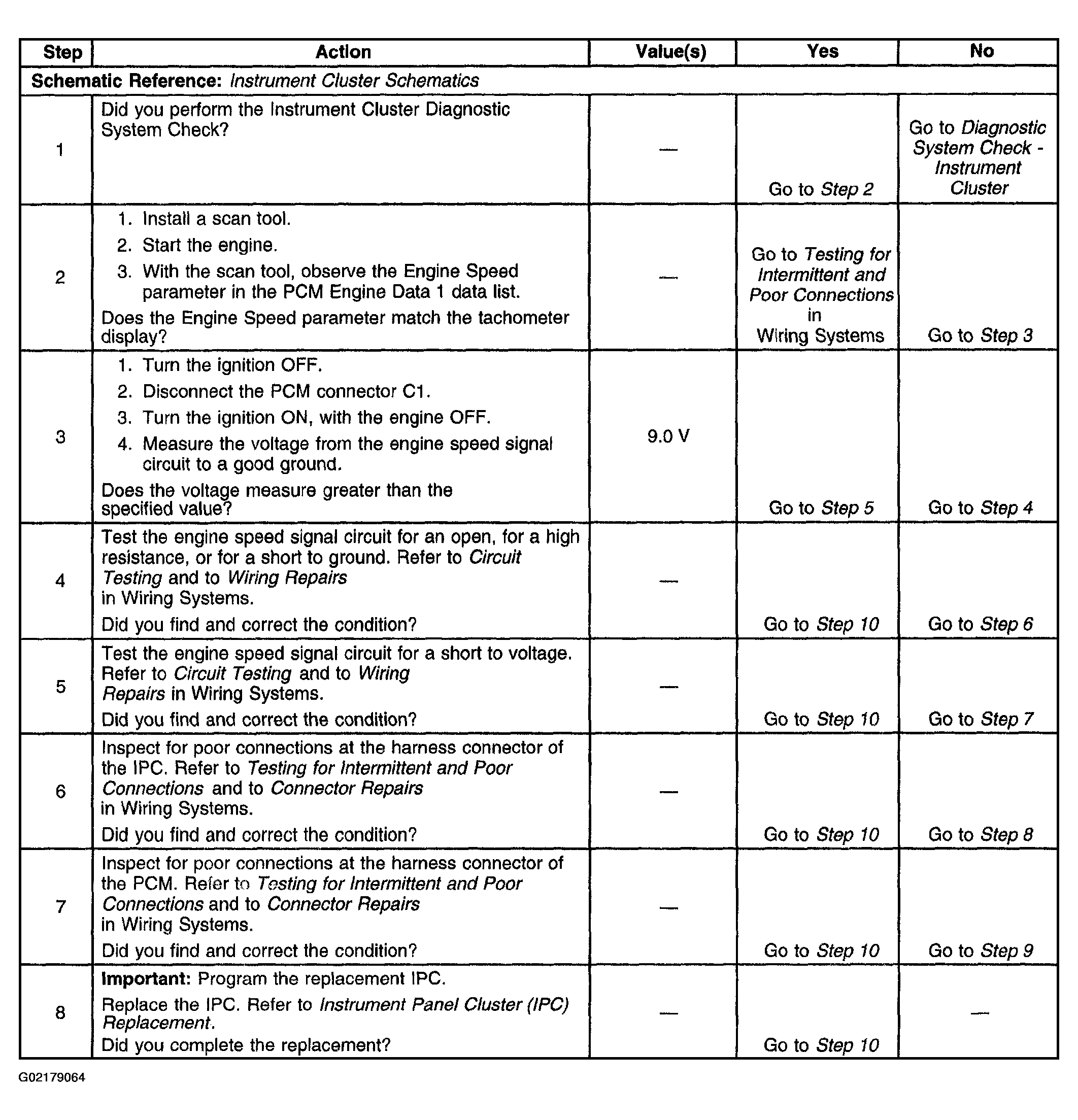

Fig 1: Tachometer Inaccurate Or Inoperative (Steps 1 - 8)

Courtesy of GENERAL MOTORS CORP.

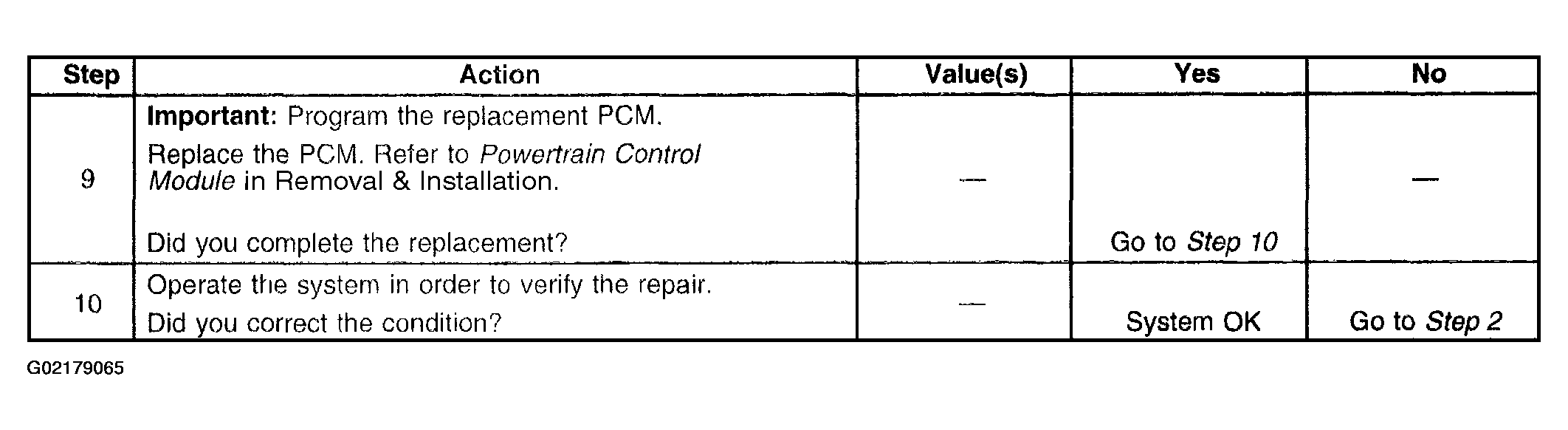

Fig 2: Tachometer Inaccurate Or Inoperative (Steps 9 - 10)

Courtesy of GENERAL MOTORS CORP.
