Test Description

The number below refers to the step number on the diagnostic table.

  1. 4. This step tests for the proper vehicle speed signal from the PCM.

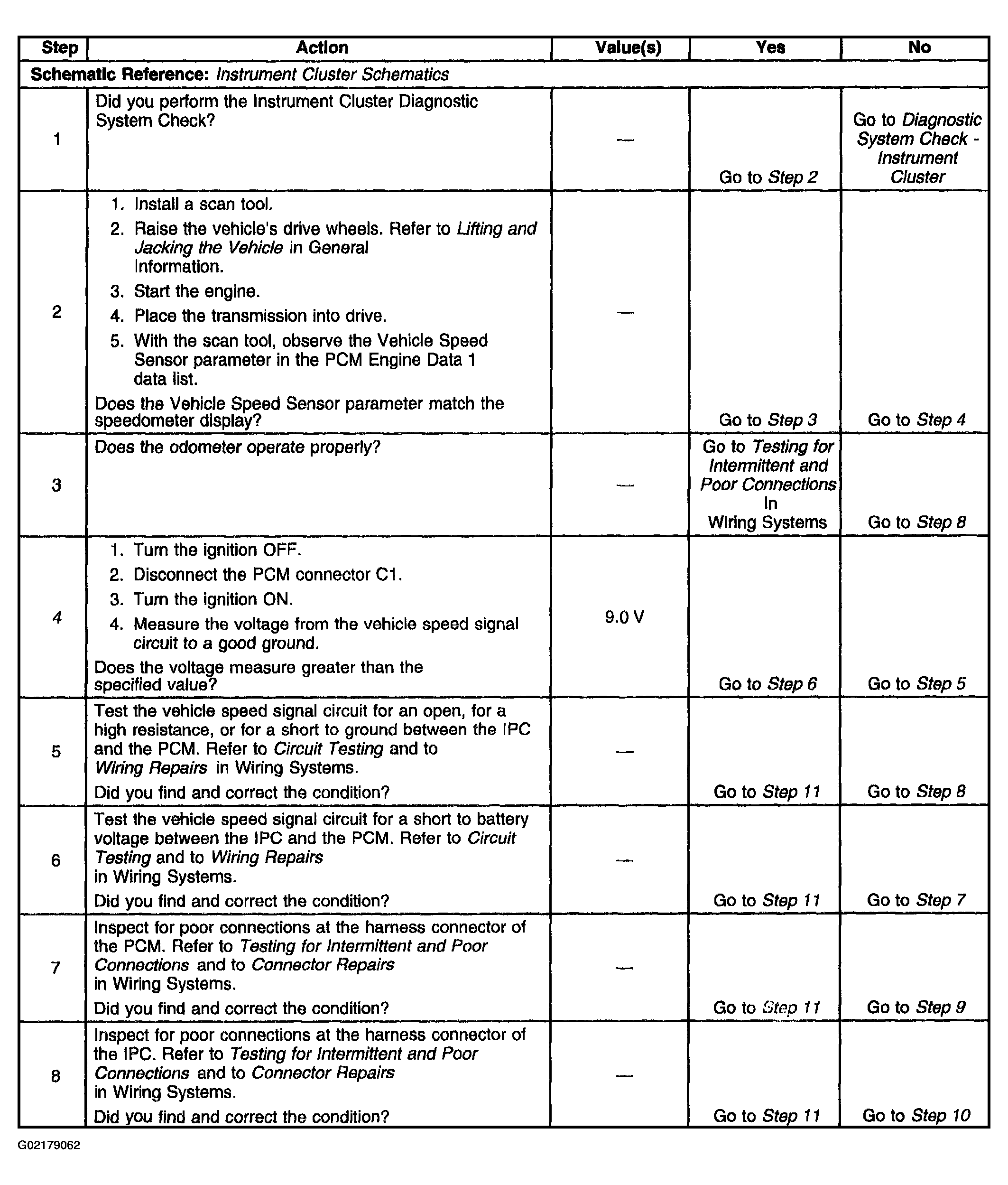

Fig 1: Speedometer And/Or Odometer Inaccurate Or Inoperative (Steps 1 - 8)
G02179062Courtesy of GENERAL MOTORS CORP.

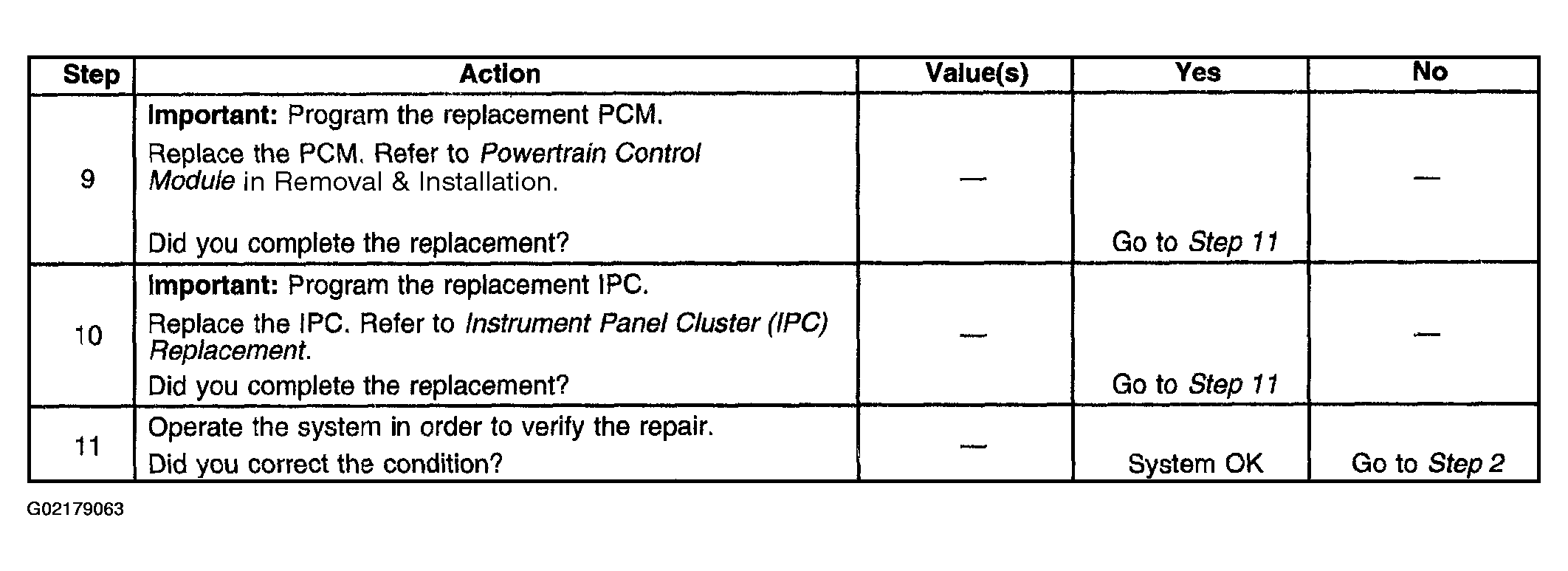

Fig 2: Speedometer And/Or Odometer Inaccurate Or Inoperative (Steps 9 - 11)
G02179063Courtesy of GENERAL MOTORS CORP.
