Driver Information Center (DIC) Switch(es) Inoperative

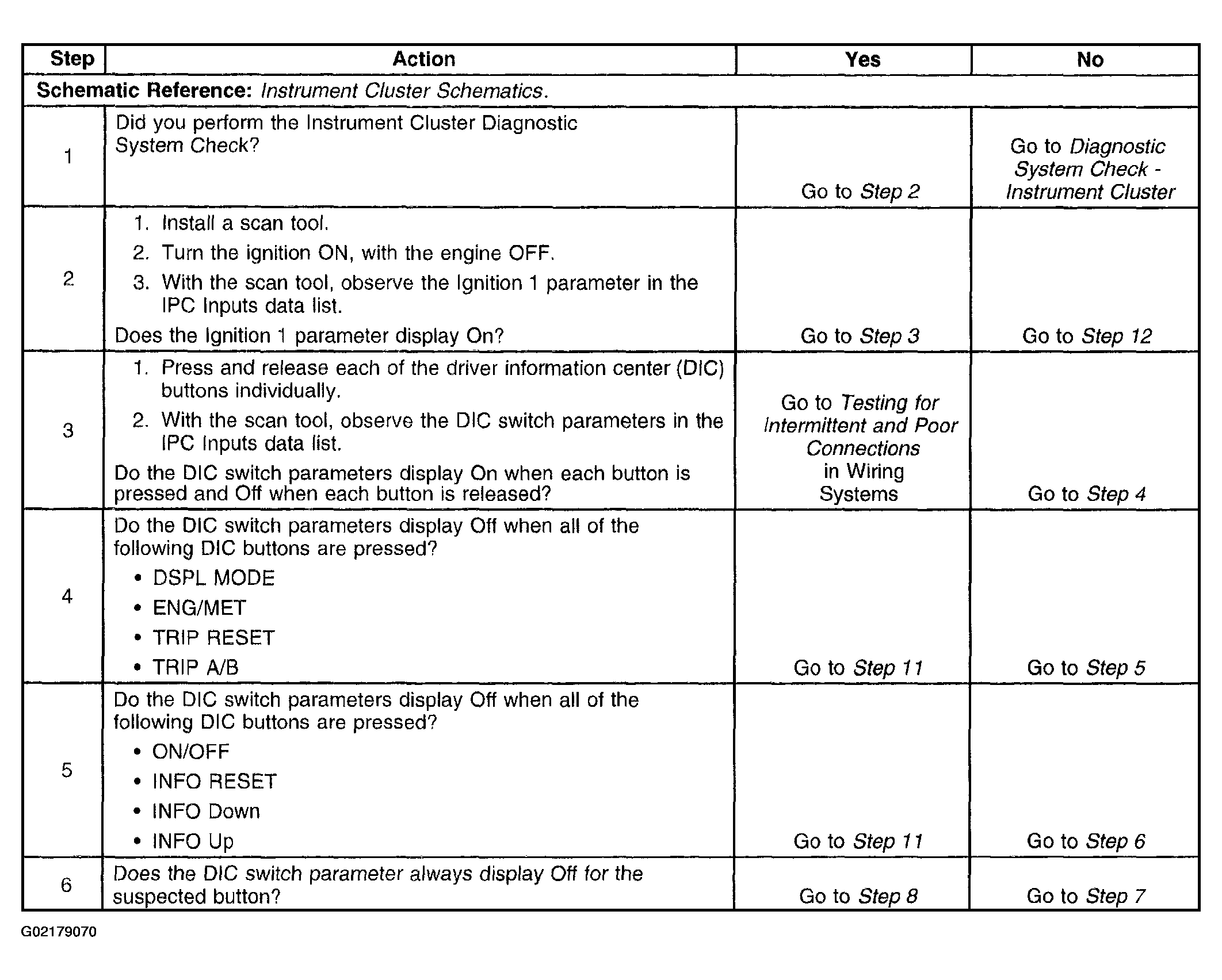

Fig 1: Driver Information Center Switch(es) Inoperative (Steps 1 - 6)
G02179070Courtesy of GENERAL MOTORS CORP.

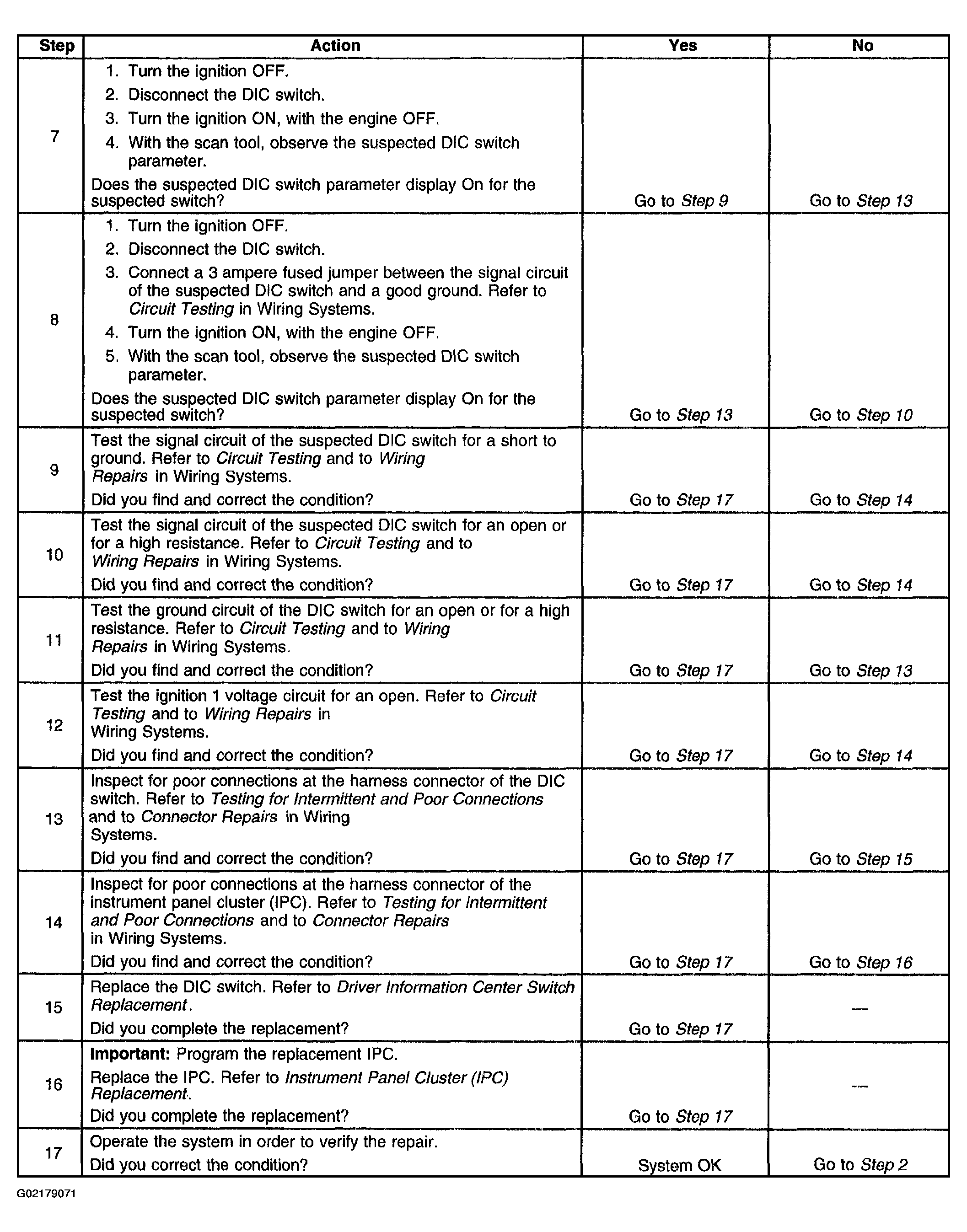

Fig 2: Driver Information Center Switch(es) Inoperative (Steps 7 - 17)
G02179071Courtesy of GENERAL MOTORS CORP.
