Chime Inoperative

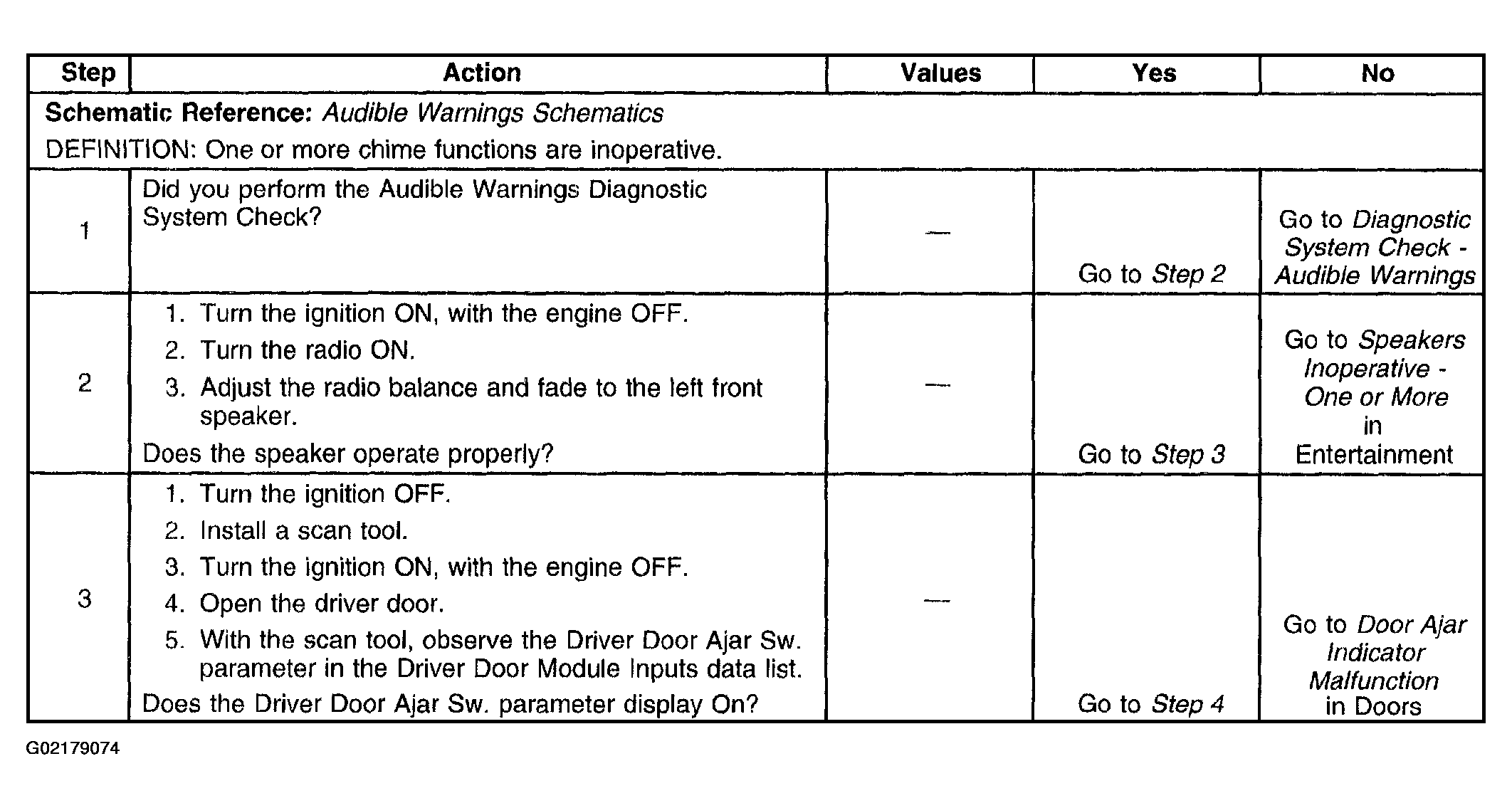

Fig 1: Chime Inoperative (Steps 1 - 3)
G02179074Courtesy of GENERAL MOTORS CORP.

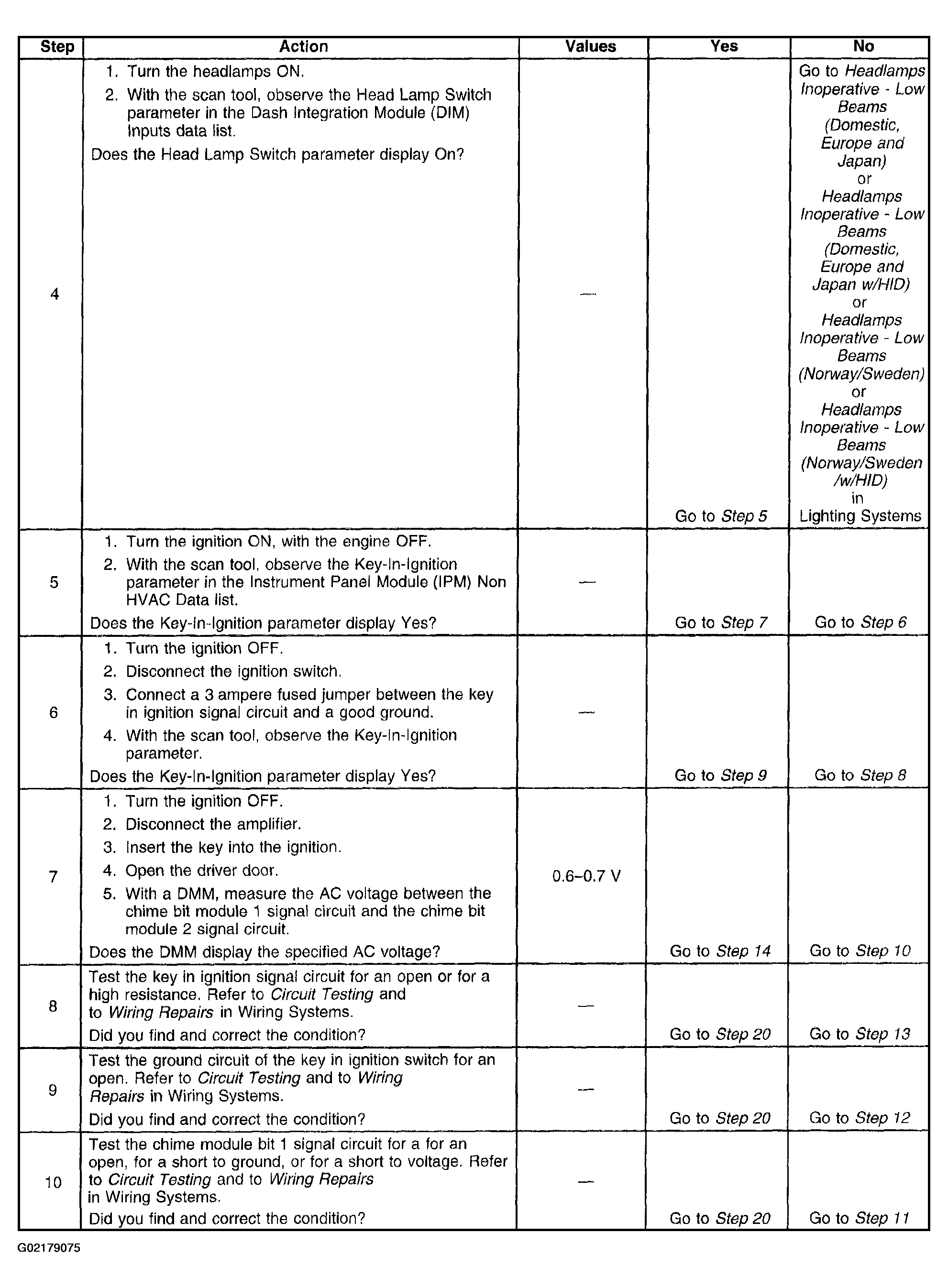

Fig 2: Chime Inoperative (Steps 4 - 10)
G02179075Courtesy of GENERAL MOTORS CORP.

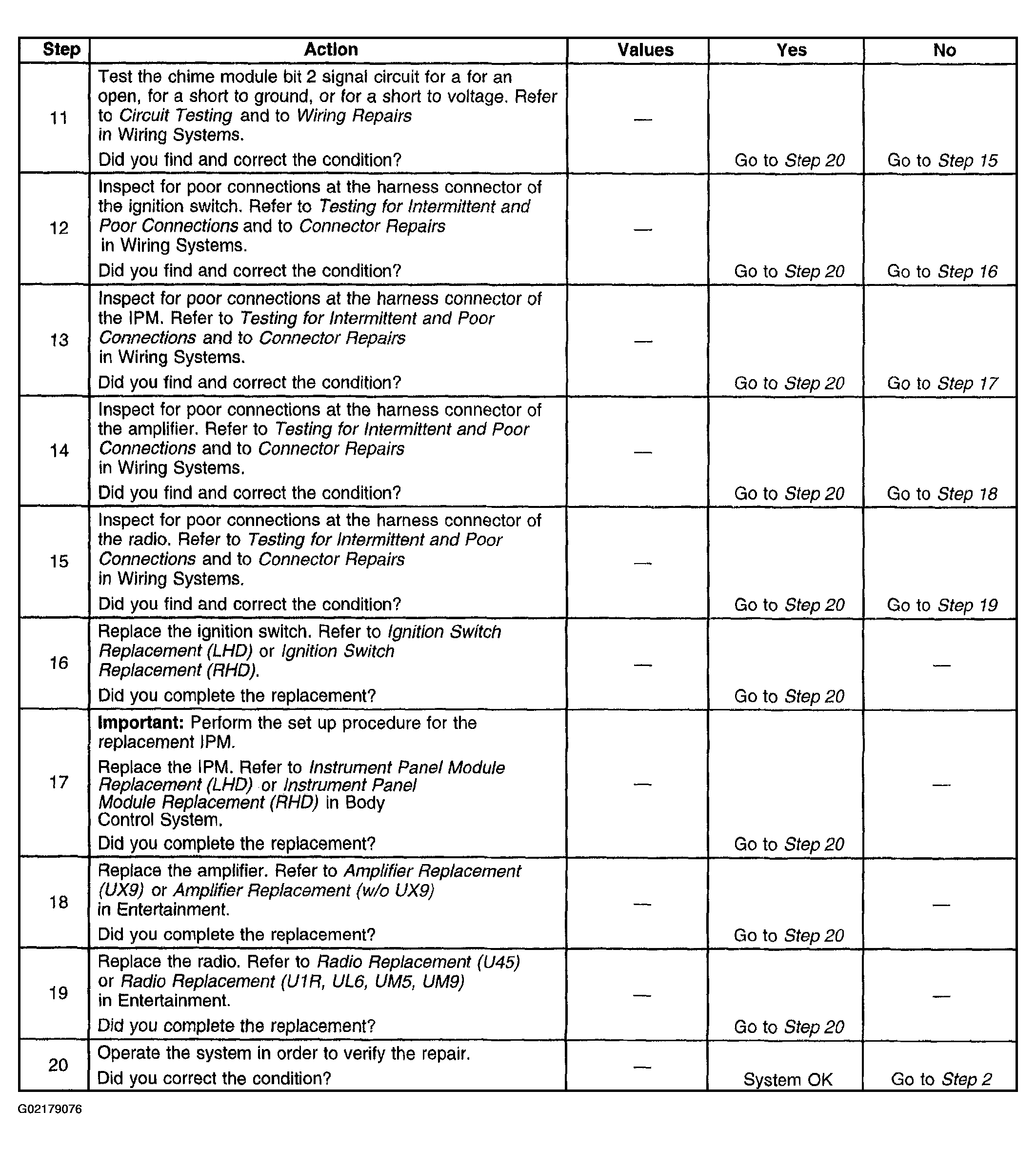

Fig 3: Chime Inoperative (Steps 11 - 20)
G02179076Courtesy of GENERAL MOTORS CORP.
