Chime Always On

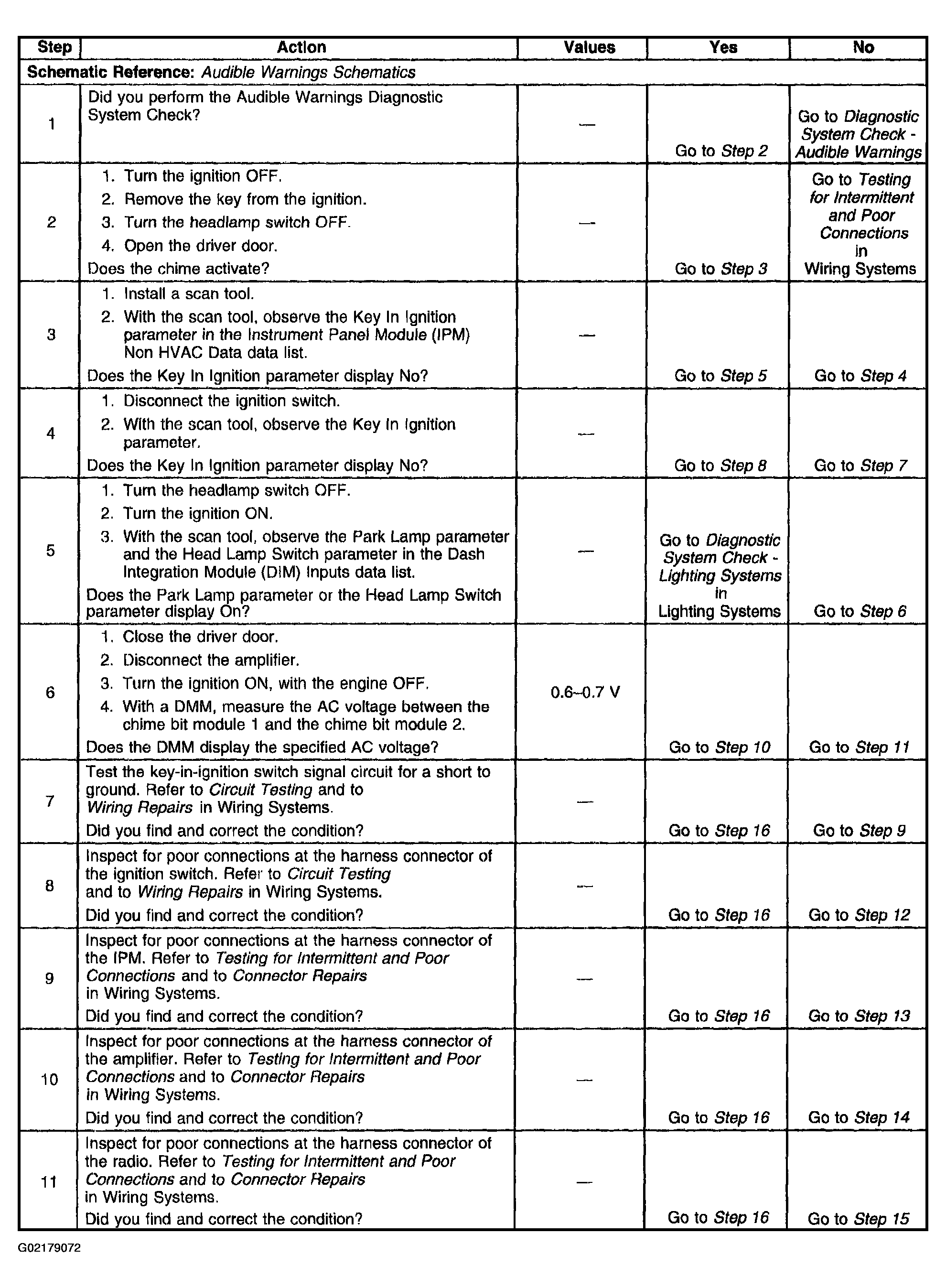

Fig 1: Chime Always On (Steps 1 - 11)

G02179072

Courtesy of GENERAL MOTORS CORP.

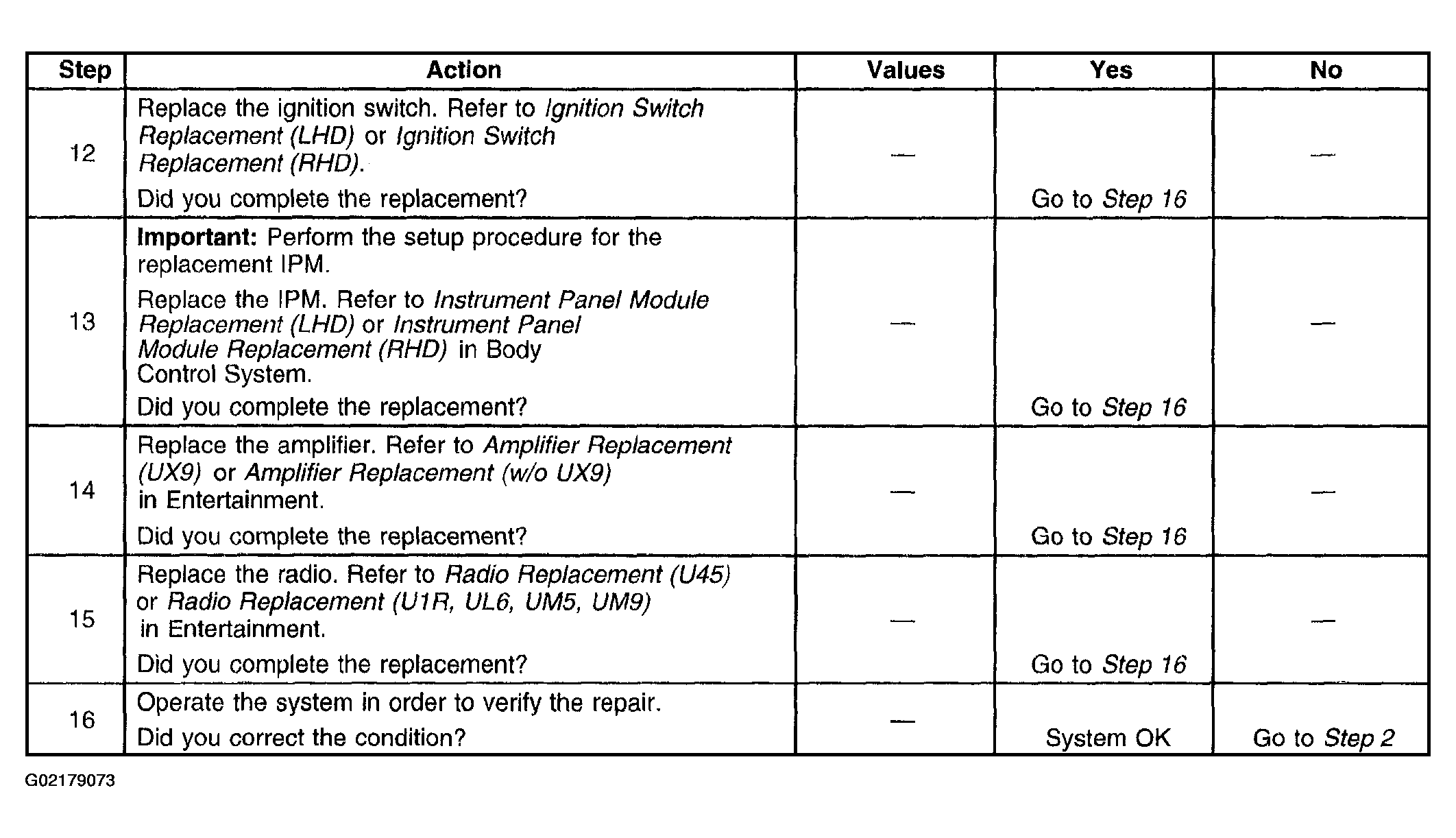

Fig 2: Chime Always On (Steps 12 - 16)

G02179073

Courtesy of GENERAL MOTORS CORP.
