Indicator/Warning Message Description and Operation: Indicators

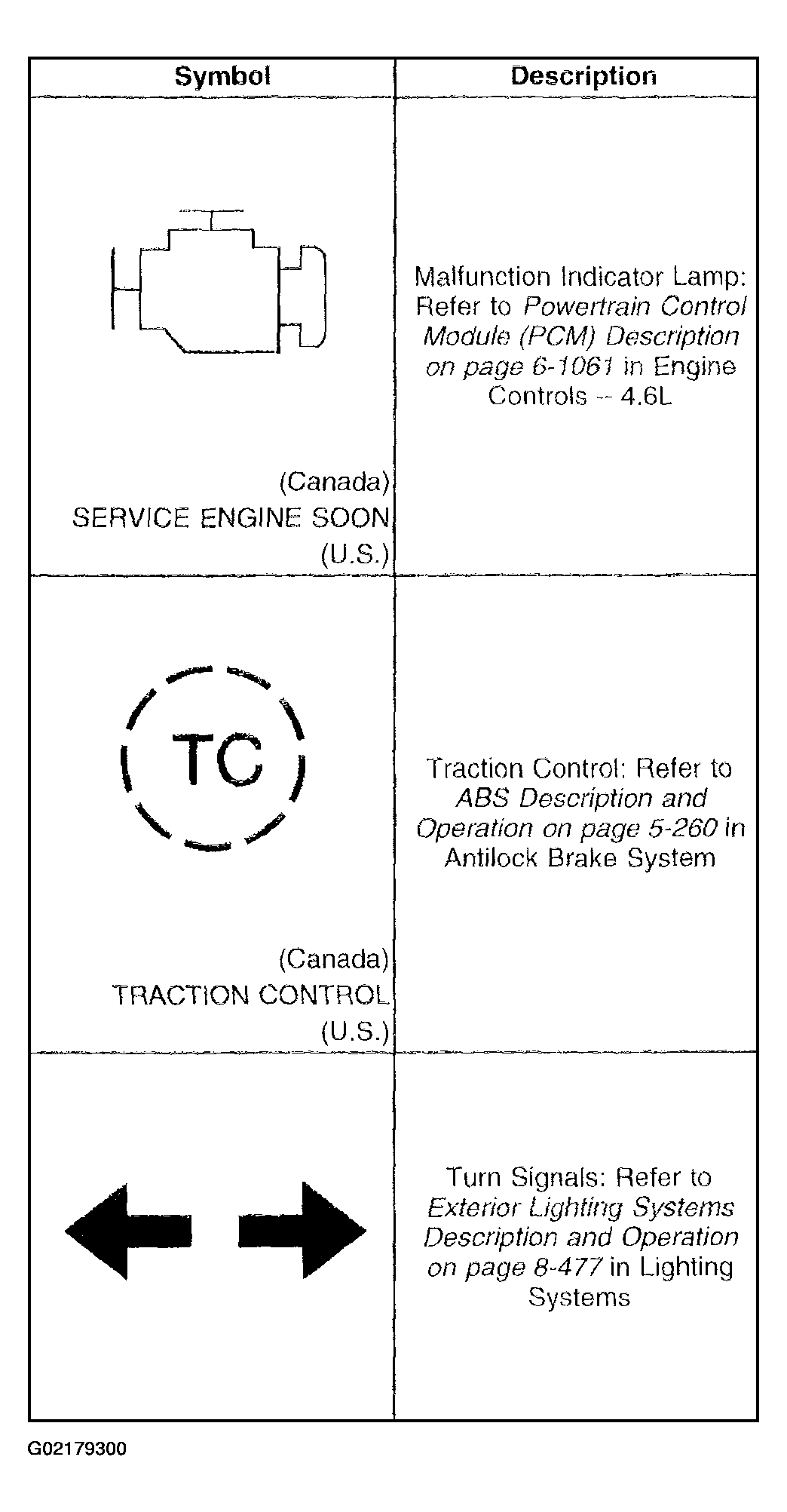

Fig 1: Indicator Icons (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

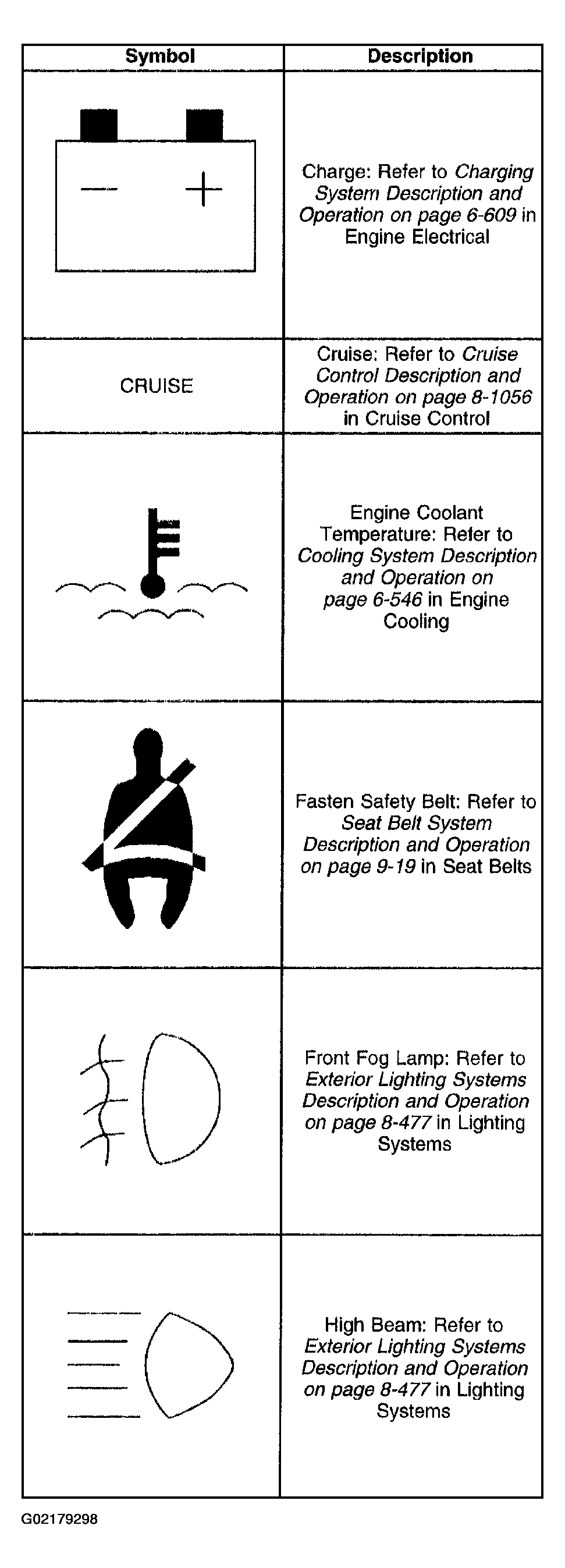

Fig 2: Indicator Icons (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

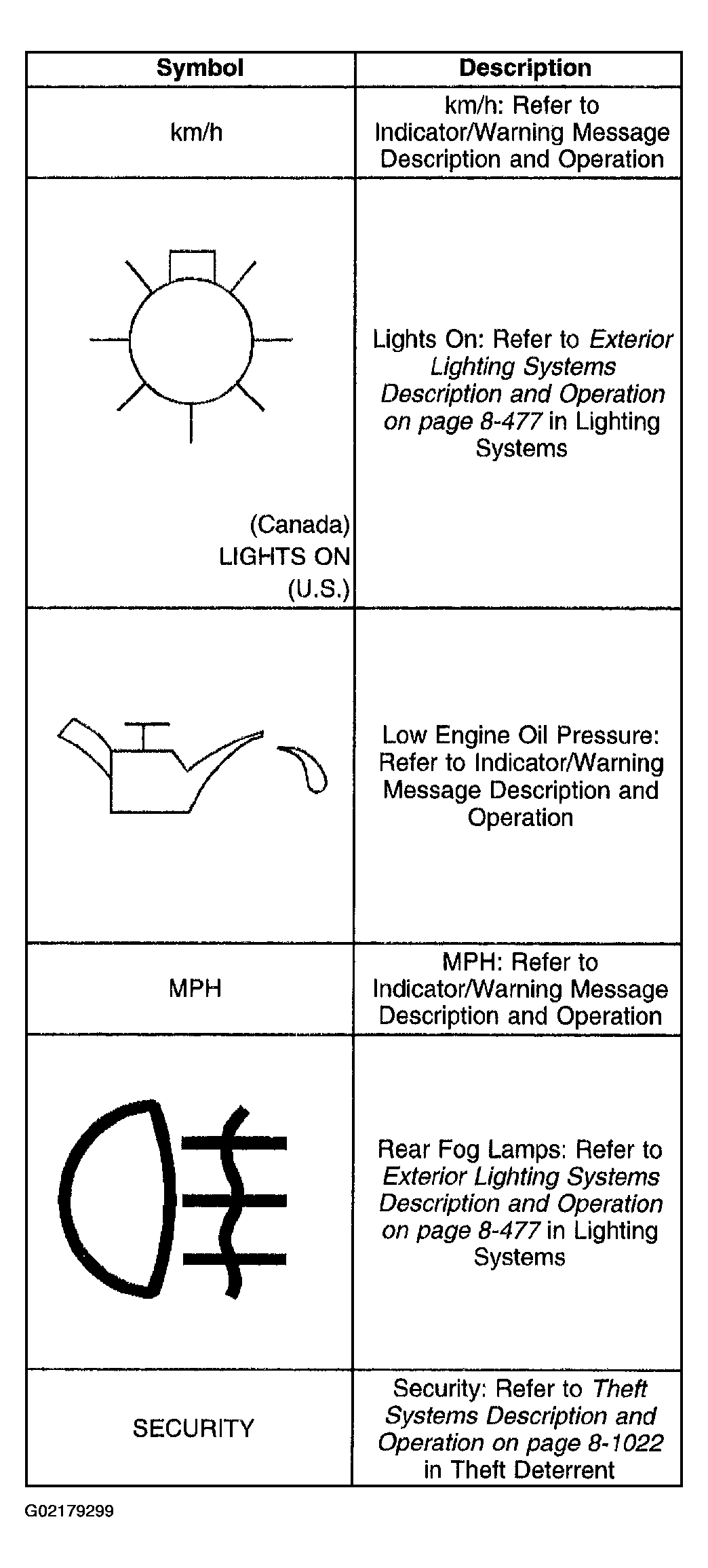

Fig 3: Indicator Icons (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

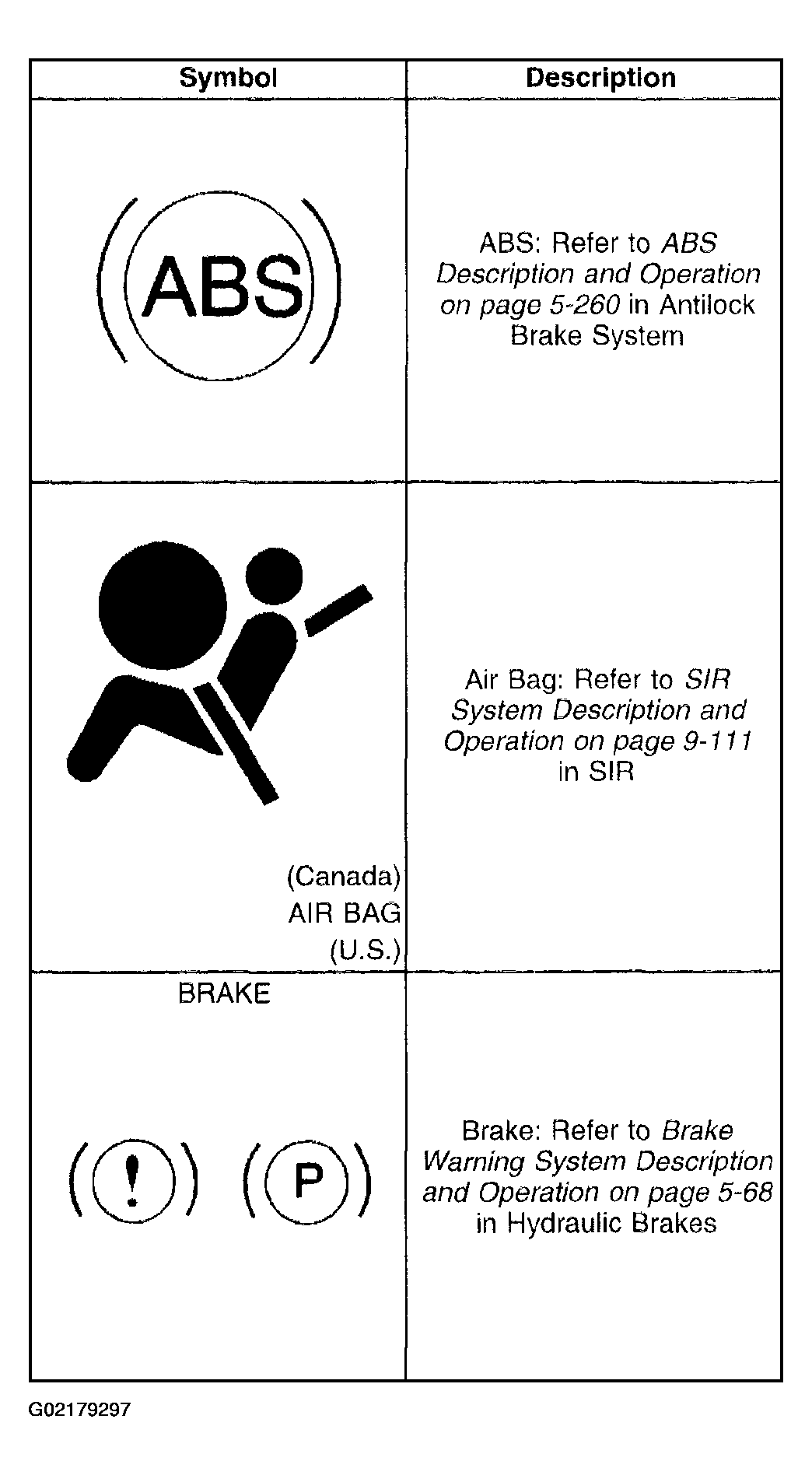

Fig 4: Indicator Icons (4 Of 4)

Courtesy of GENERAL MOTORS CORP.
