Home >> Cadillac >> 2003 >> DeVille Base >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel, Gages, And Console >> Schematic and Routing Diagrams >> Night Vision Schematics (HUD and Night Vision Camera - Power and Ground)

Night Vision Schematics (HUD and Night Vision Camera - Power and Ground)

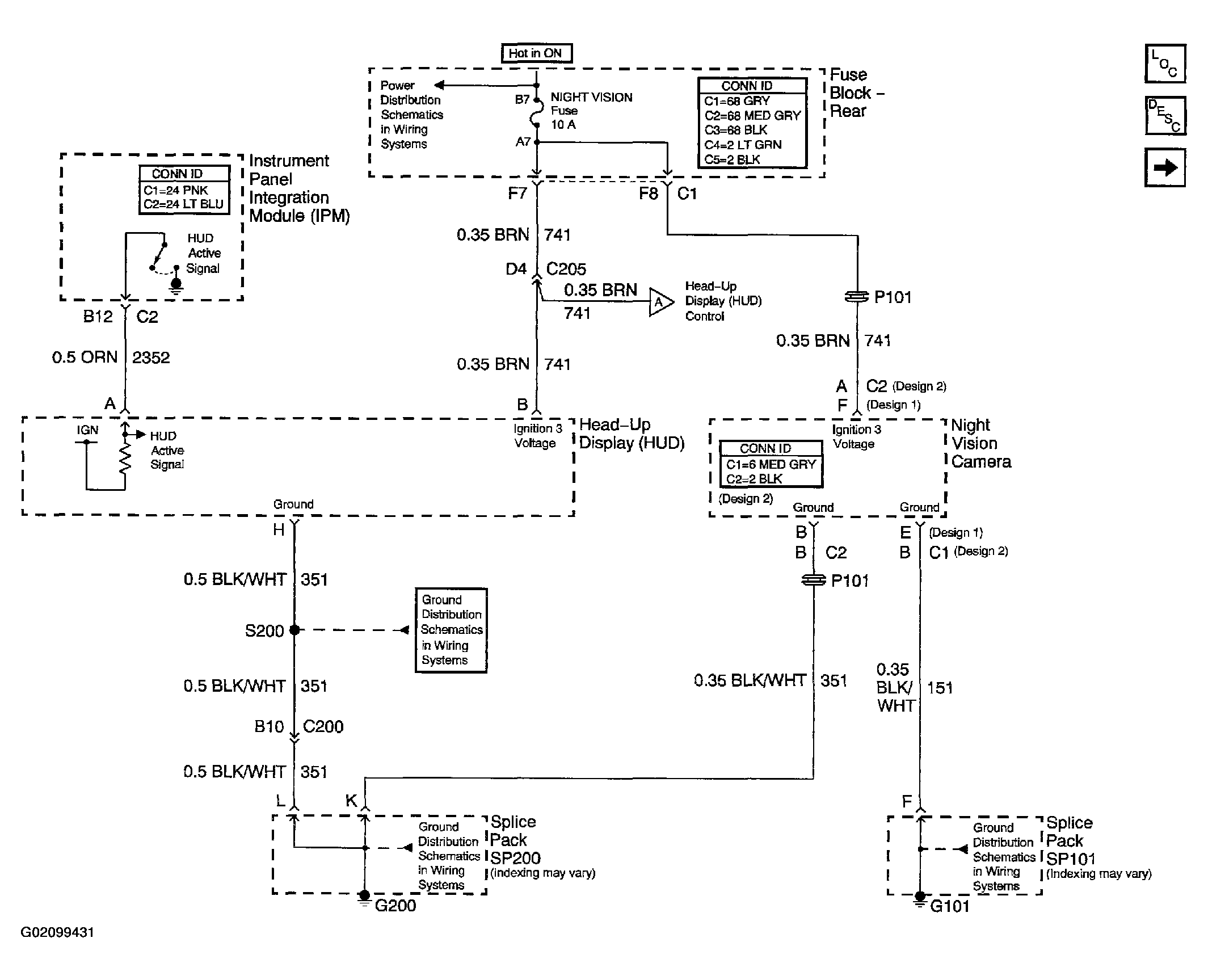

Fig 1: Night Vision Schematics - HUD And Night Vision Camera - Power And Ground
G02099431Courtesy of GENERAL MOTORS CORP.

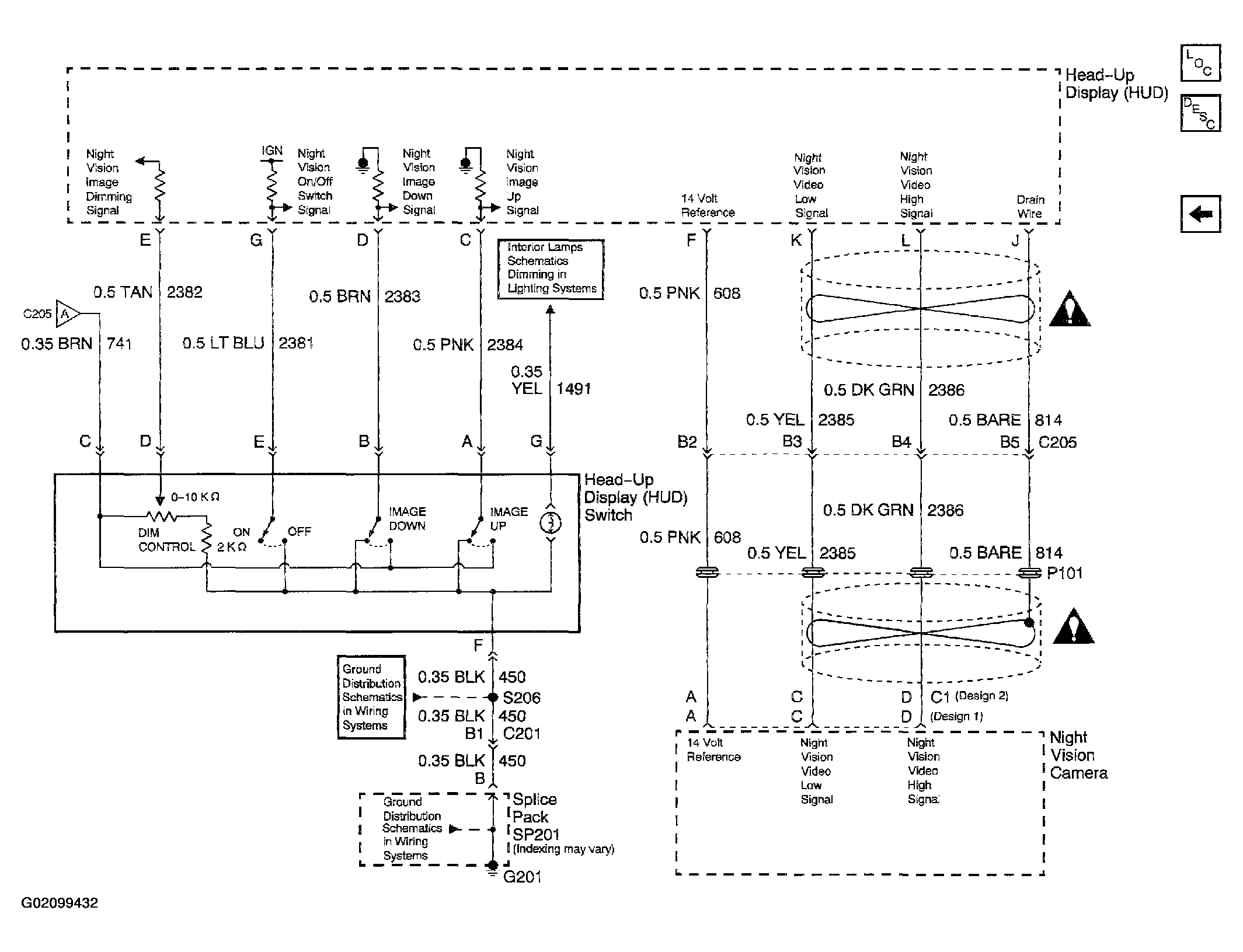

Fig 2: Night Vision Schematics - HUD Switch And Night Vision Camera Video Circuits
G02099432Courtesy of GENERAL MOTORS CORP.
