Instrument Cluster Schematics (Power, Ground, and 54V VF Display Supply)

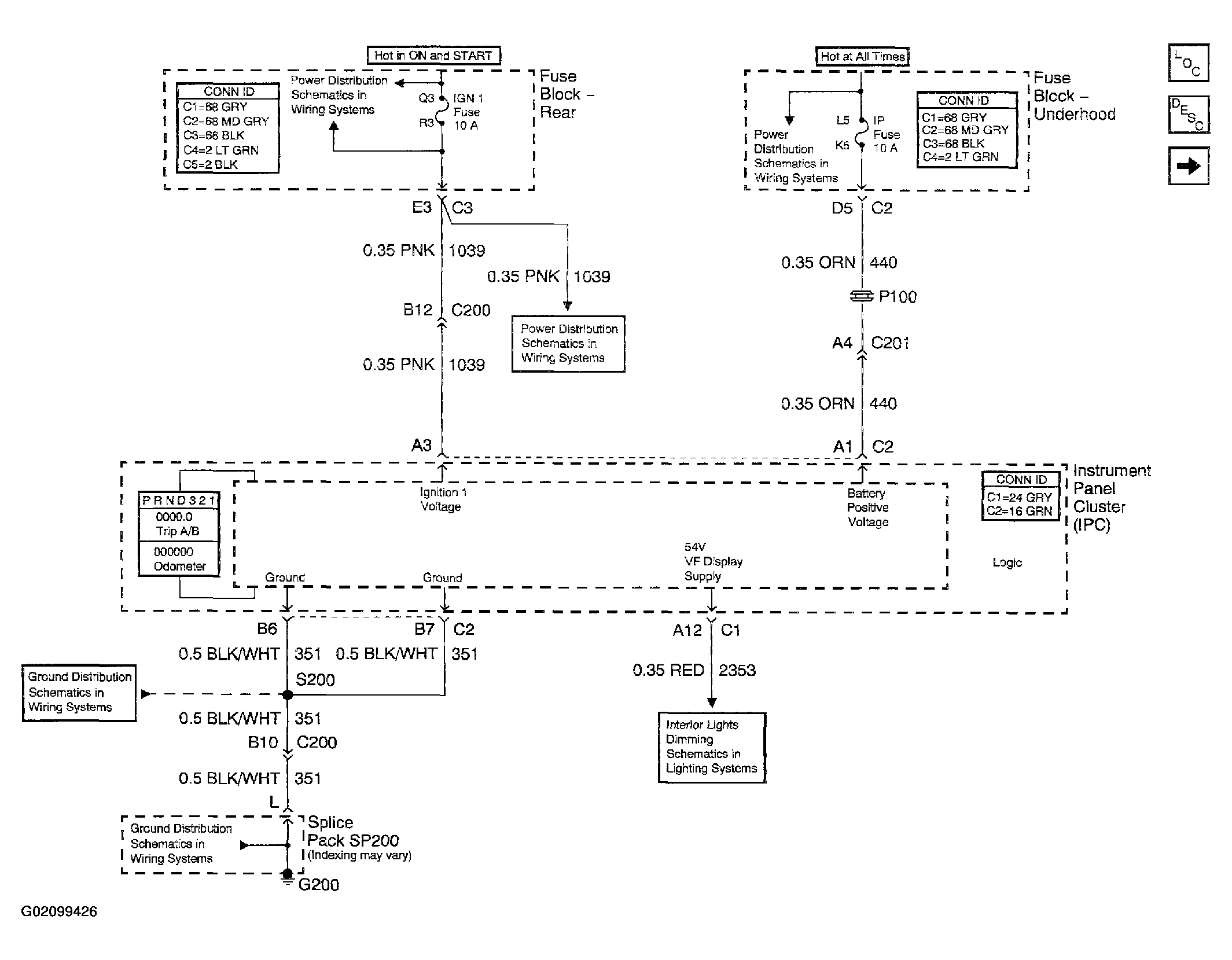

Fig 1: Instrument Cluster Schematics - Power, Ground, And 54V VF Display Supply

Courtesy of GENERAL MOTORS CORP.

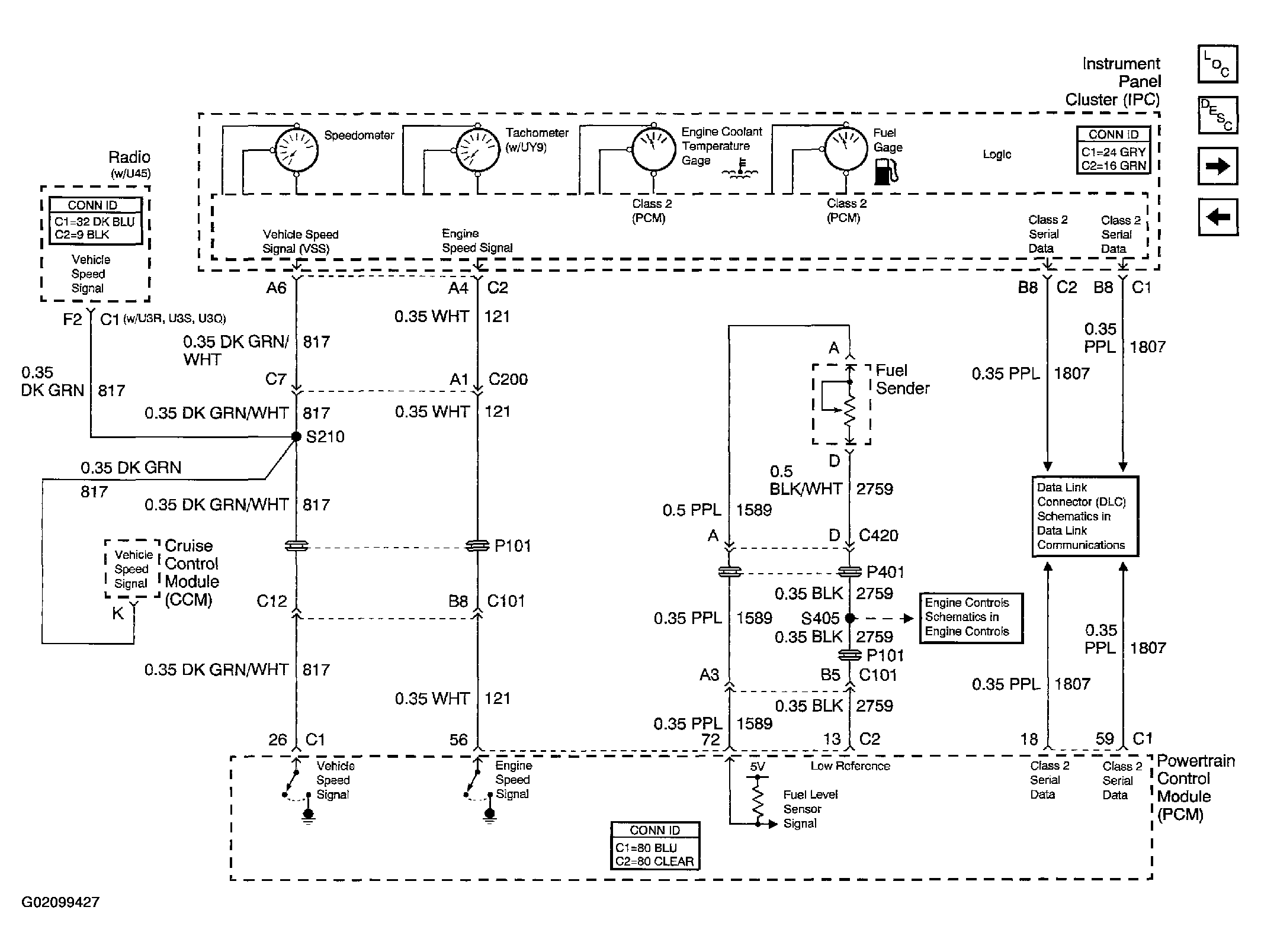

Fig 2: Instrument Cluster Schematics - Gages And Class 2

Courtesy of GENERAL MOTORS CORP.

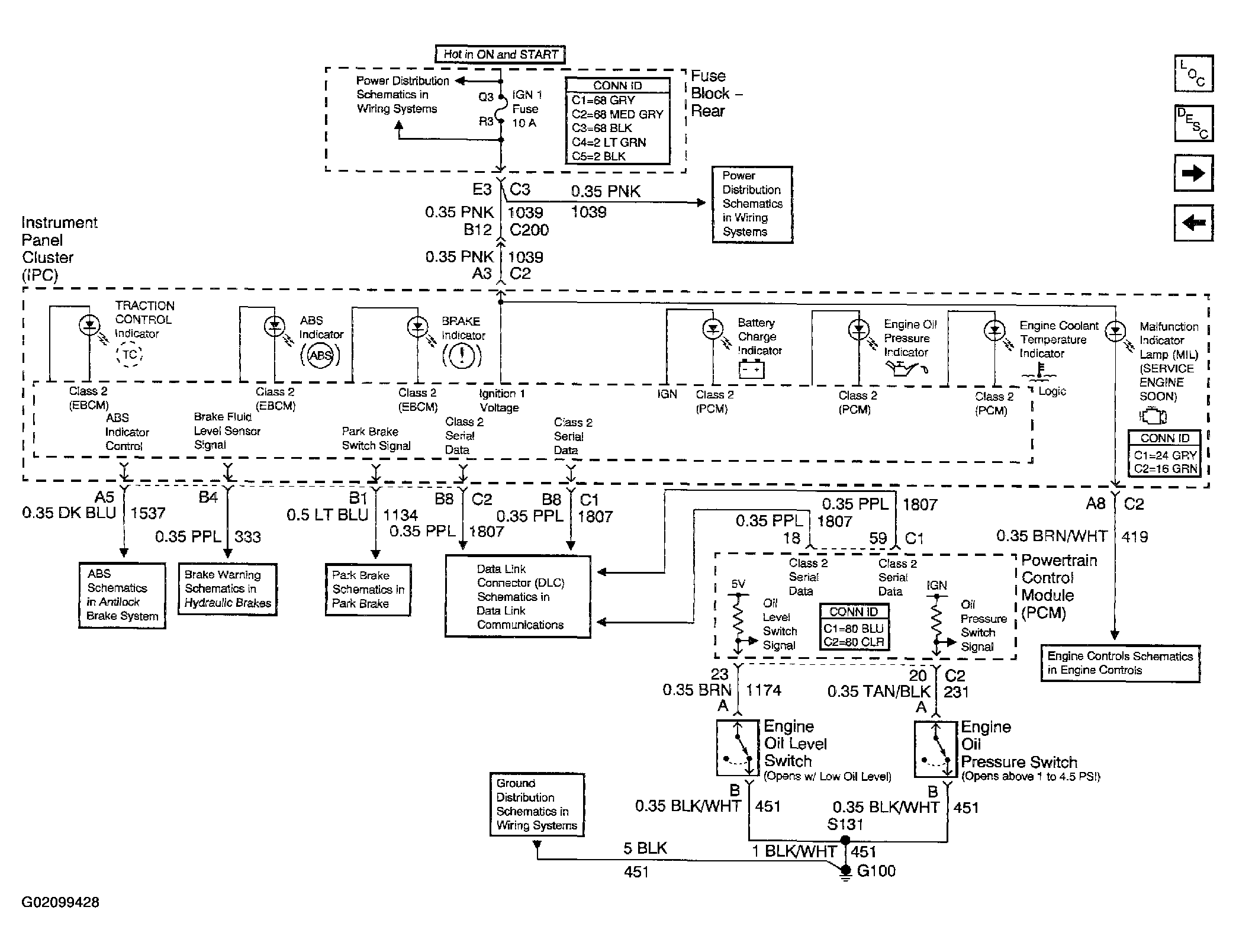

Fig 3: Instrument Cluster Schematics - Brakes And Engine Indicators

Courtesy of GENERAL MOTORS CORP.

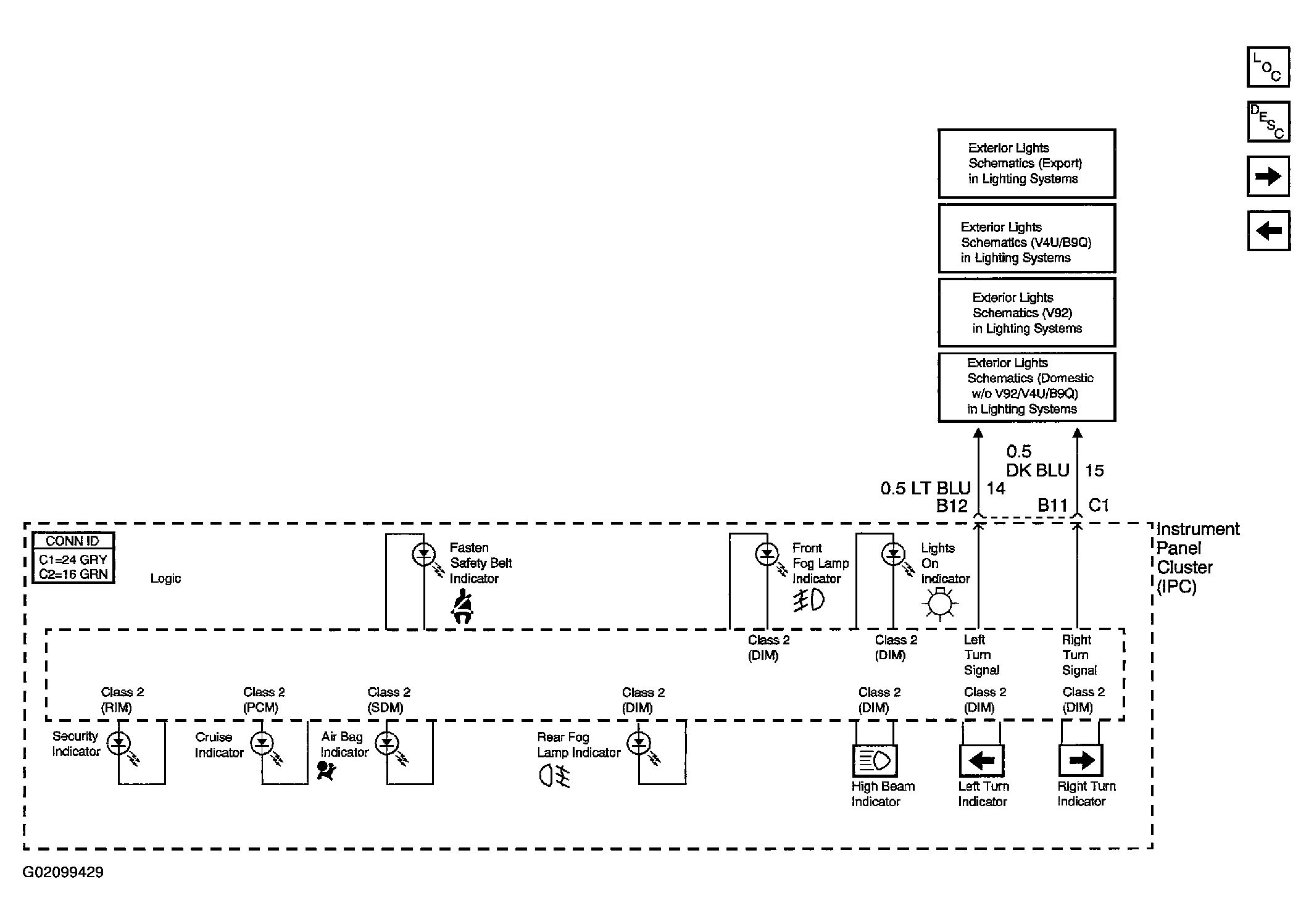

Fig 4: Instrument Cluster Schematics - Lighting, Restraints, Security, And Cruise Indicators

Courtesy of GENERAL MOTORS CORP.

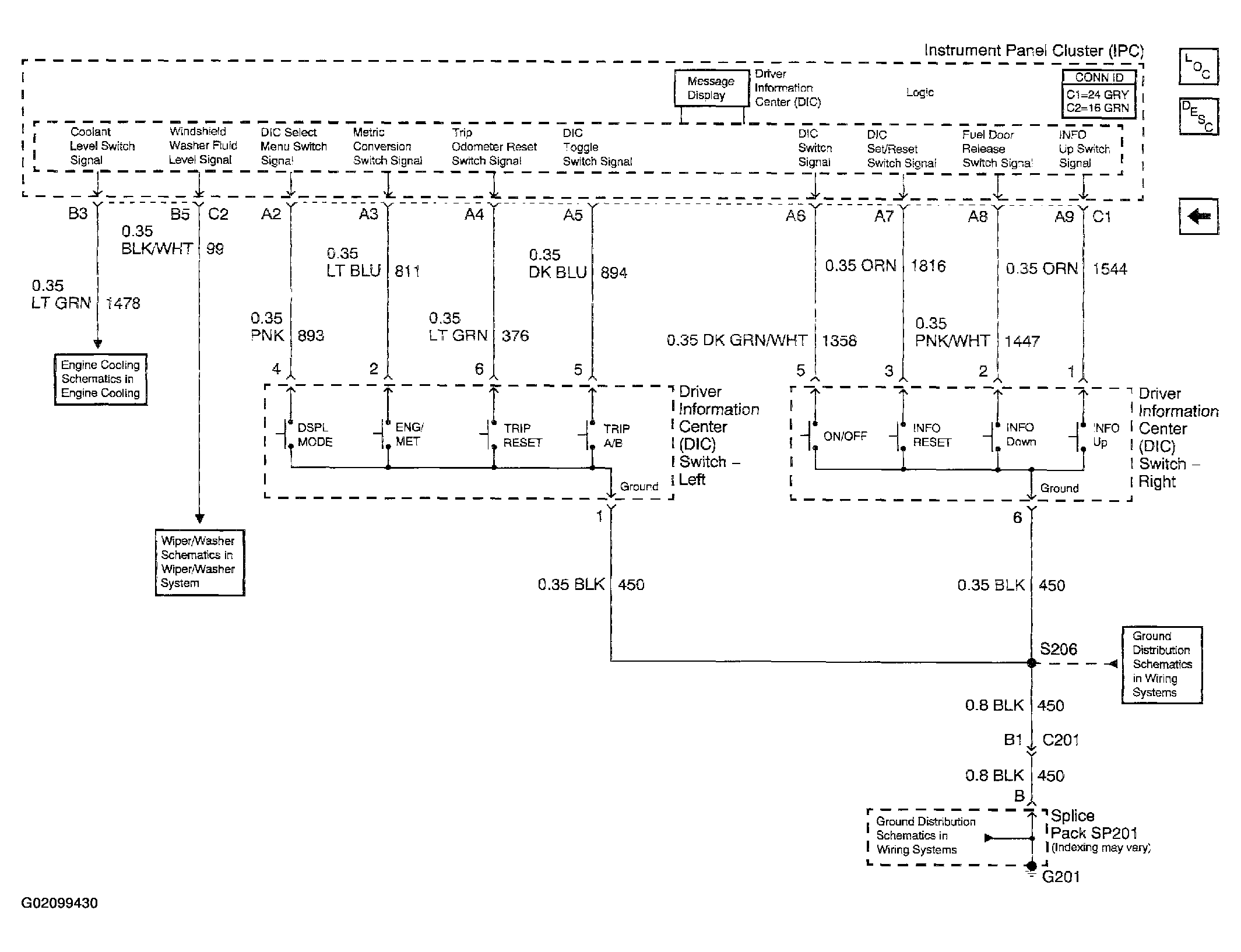

Fig 5: Instrument Cluster Schematics - Driver Information Center

Courtesy of GENERAL MOTORS CORP.
